Butterfly Laser Diode Mounts

Advanced Performance Products for Laser Scientists & Engineers

FILTER: View Products Available to Purchase

clear filter

Laser PackageCooling Description
Manufacturer

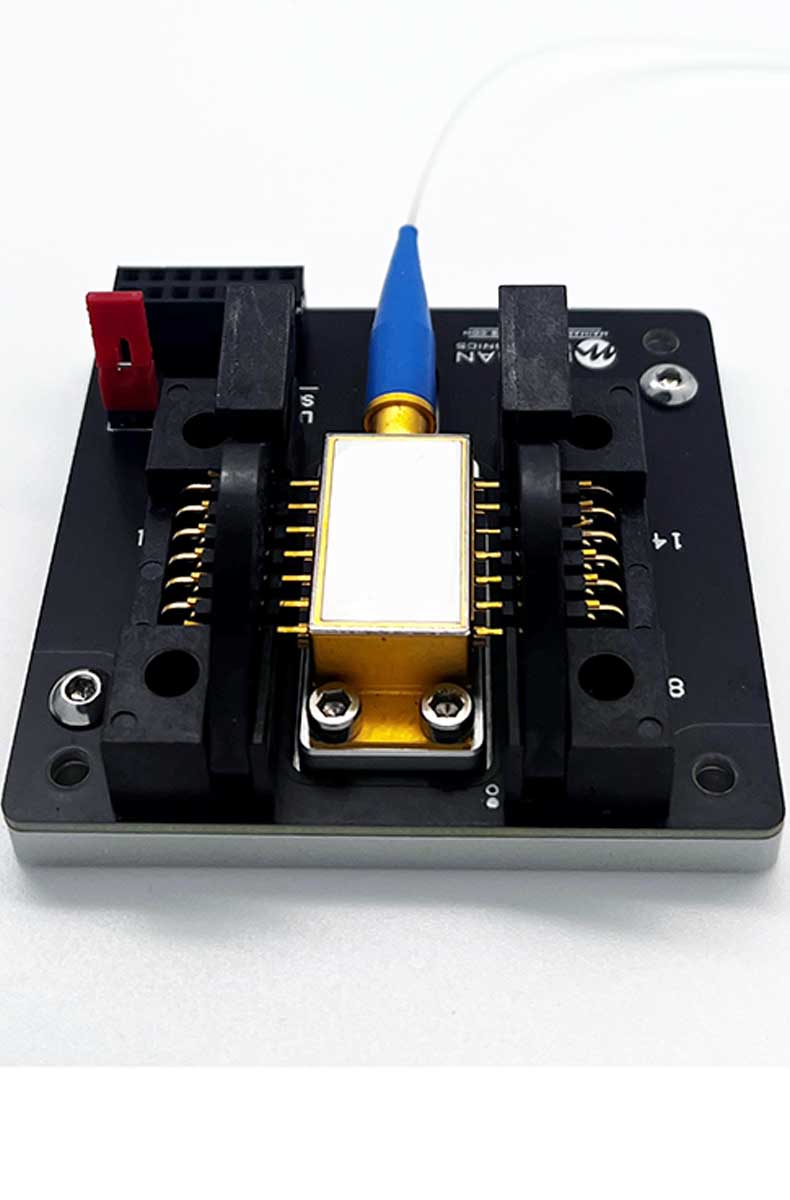

Butterfly Air Cooled Butterfly Packaged Laser Diode Mounting Kit
** In-Stock / Ships Today **
- User-Set Pin Configuration
- Current Rating up to 4 Amps ETE

$185^.00

High Power Fiber-Coupled Module 2 x Peltier Coolers + Fan Cooled Heat Sink Base 50 Watt Heat Capacity Laser Diode Mount & Heat Sink Assembly
- for Fiber Coupled Modules
- Includes 2 x Peltier Coolers
- 0.5ºC Temperature Uniformity ETE

$425^.00

High Power Fiber-Coupled Module Air Cooled 50 Watt Heat Capacity Laser Diode Mount and Heat Sink Assembly
- Thermal Resistance: 0.22 ºC/W
- Versatile Forced-Air Heat-Sink ETE

$250^.00

Butterfly Peltier Coolers and Fan Cooled Heat Sink Base 2 Channel Butterfly Mount & Heat Sink
- Includes 2 x Universal Butterfly Mounting Sockets
- Includes 2 x Peltier Coolers ETE

$770^.00

Butterfly Air Cooled Advanced Performance 14-Pin Butterfly Packaged Laser Diode Mount
- Optional Case Temp Control
- No Wiring / Set-Up Required
- Compact Design OsTech

$595^.00

Butterfly Air Cooled Butterfly Packaged Laser Diode Mount
- 14-Pin Butterfly Laser Compatible
- Input Current up to 5 Amps
- Built-In Reverse Bias Protection Wavelength Electronics

$599^.00

Butterfly Air Cooled Type-2 Butterfly Packaged Laser Diode Mount and Heat Sink
- XH 10-Pin Connector
- SMA Connector for RF Modulation LDC | Laser Diode Control

$163^.60

Butterfly Air Cooled Type-1 Butterfly Packaged Laser Diode Mount + Heat Sink
- XH 10-Pin Connector
- Soldered-Pin Connection LDC | Laser Diode Control

$163^.60

Butterfly Air Cooled Type-2 Butterfly Packaged Laser Diode Mount and Heat Sink
- 9-Pin D-Sub Connector
- SMA connector for RF modulation LDC | Laser Diode Control

$168^.10

Butterfly Air Cooled Type-1 Butterfly Packaged Laser Diode Mount and Heat Sink
- 9-Pin D-Sub Connection
- Soldered-Pin Connection LDC | Laser Diode Control

$169^.00

Butterfly Air Cooled Type-1 Butterfly Packaged Laser Diode Mount and Heat Sink
- XH 10-Pin Connector
- Soldered-Pin Connection LDC | Laser Diode Control

$167^.20

Butterfly Air Cooled Type-1 Butterfly Packaged Mount and Heat Sink
- 9-Pin D-Sub Pin Connector
- Soldered-Pin Connection LDC | Laser Diode Control

$166^.30

Butterfly Air Cooled Type-2 Butterfly Packaged Mount and Heat Sink
- XH 10-Pin Connector
- 50Ω SMA RF Connector LDC | Laser Diode Control

$169^.00

Butterfly Air Cooled Type-2 Pin Configuration Butterfly Packaged Laser Diode Mount and Heat Sink
- XH 10-Pin Connector
- 50Ω SMA RF Connector LDC | Laser Diode Control

$169^.00

Butterfly Air Cooled Semiconductor Optical Amplifier / SOA Heatsink
- XH 10-Pin Connector
- Soldered-Pin Connection LDC | Laser Diode Control

$219^.50

Butterfly Air Cooled Certified Used Newport Model 708
- Eight-Channel Butterfly Mount
- Front-Panel FC Fiber Connectors
- Certified Pre-Owned Newport

$625^.00

Butterfly TEC and Fan Cooled Heat Sink Base Advanced Thermal Design Dissipates up to 50 Watts of Heat; High Performance LASER DIODE Mount & Heat Sink Assembly
- Universal - works with all 14-pin packaged laser diodes ETE

$585^.00

High Power Fiber-Coupled Module Air Cooled Advanced Thermal Design Dissipates up to 150 Watts of Heat; High Performance LASER DIODE Mount & Heat Sink Assembly
- Thermal Resistance < 0.08 °C/W
- Nickel-Plated Mounting Plate
- Versatile Forced-Air Heat-Sink ETE

$500^.00

High Power Fiber-Coupled Module Air cooled Advanced Thermal Design Dissipates up to 300 Watts of Heat; High Performance LASER DIODE Mount & Heat Sink Assembly
- Configurable TECs
- Ideal for High Power Lasers
- Large Cooled Mounting Surface ETE

$1650^.00

Butterfly Air Cooled Certified Used ILX Lightwave LDM-4984
- 14-Pin Butterfly Laser Diode Mount
- Easy to use ZIF Sockets
- Certified Pre-Owned ILX Lightwave

$400^.00

Butterfly Air Cooled ILX Lightwave model: LDM-4984
- Configurable Laser Pin Out
- Current Maximum of 2 Amps ILX Lightwave

Butterfly Air Cooled ILX Lightwave model: LDM-4616
- 16 Butterfly Laser ZIF Sockets
- Configurable Pin Headers
- Rack-Mounted with Drawer Slides ILX Lightwave

Butterfly Air Cooled Butterfly Laser Diode Mount
- ZIF Socket
- Air Cooled LDT Laser Diode Technologies

$179^.00
