300W Thermoelectric Cold Plate Module for High Power Laser Diode Mounting

  • High Power Laser Diode Heatsink

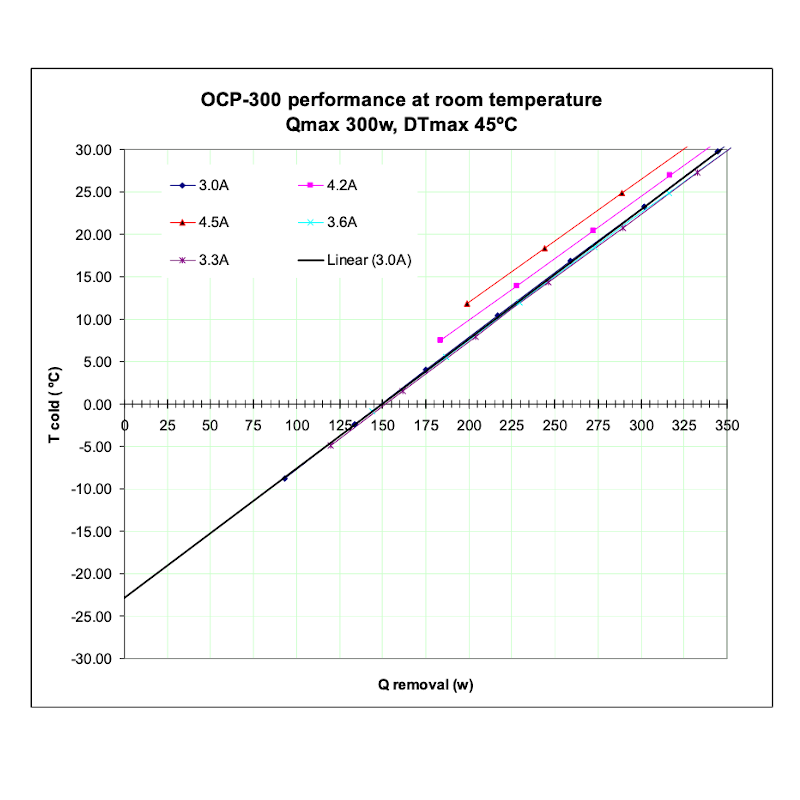

  • 300W Heatsink Performance With TEC
  • 300 Watt Laser Diode Heatsink

$1400.00
sku / item#: RLS/OCP-300
ships: 2 weeks ARO

Key Features
  • High Power - 300W Cooling Capacity
  • Air-Cooled Heatsink with Ducted Fans
  • Compact, High Power-Density Laser Diode Mount
  • Prewired with TECs and Temperature Sensor
  • Offered by Elite Thermal Engineering, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/OCP-300
PRICE $1400.00
General SPECIFICATIONS
  • Heat Dissipation Capacity: 300 Watts
  • TECs: Two Sets Wired In Series
  • Current per TEC Series: 7.5 A
  • Voltage per TEC Series: 40 V
  • Fan Voltage: 7.0 ~ 13.5 VDC
  • Fan Power: 16 W
  • Noise Level per Fan: 50 dBA
  • Dimensions: 13.528" x 8.466" x 3.820"

Product Overview:

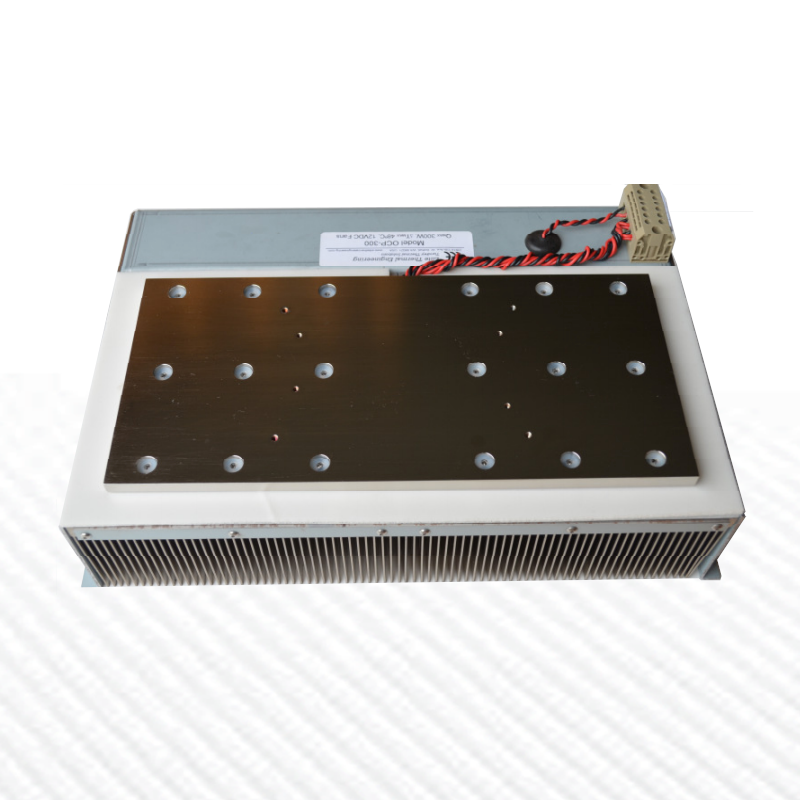

300 Watt TEC-Based Cold Plate / Laser Diode Mount The OCP-300 is a high power thermoelectric cooling system designed for OEM and laboratory / research applications for high power laser products, medical equipment, and semiconductor processing. It is also a convenient solution for general cooling of common fiber coupled lasers in laboratory environment.

The cold plate will be made to order with mounting hole patterns provided by customer. We also accept customer-supplied cold plates for installation in place of the standard cold plate.

Simple, Effective, and Proven Solution The OCP-300 is based on the popular and effective HS-004 fan-cooled heat sink. The addition of the TECs means more effective waste heat removal from high power laser diode modules, as well as the ability to hold a set temperature. The OCP-300 requires a high power bipolar thermoelectric cooler controller, such as the MC-1000-300.

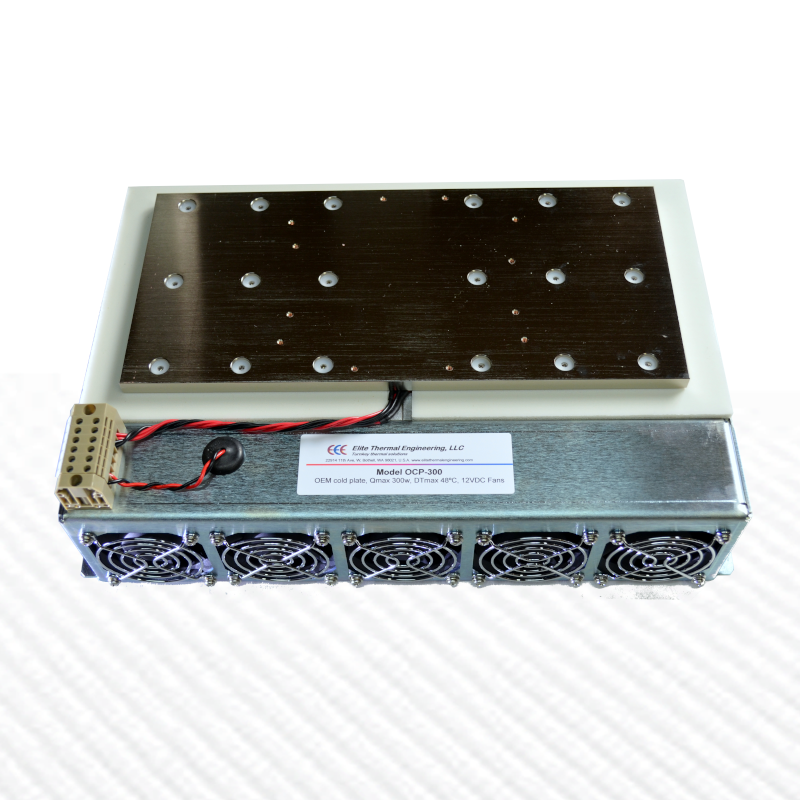

The OCP-300 is prewired for easy set up. The TECs are connected in two series-wired sets, each set is rated at 7.5 A and 40 V. The TECs are sealed to prevent moisture incursion, and are rated to operate at up to 150ºC.

Customizable Options for Maximum Versatility and Ease-of-Use All heatsink modules can be ordered with optional IP68 fans for operating in harsh dust and liquid environments. Also, custom mounting pre-drilled hole patterns are available from the manufacturer. Contact us for details and a quote. Elite Thermal Engineering offers TEC-based heatsinks for applications that require precision temperature control. Visit the ETE e-shop at LaserDiodeControl.com to see ETE's selection of TEC-based laser heatsinks.
