Butterfly Packaged Laser Diode Mount, Zero Insertion Force Socket with Clamp-Down Arms, Anodized Aluminum Heat Sink

  • ldm-bf-t1-d9-zif
  • butterfly-laser-diode-mount-pin-type-1
  • ldm-bf-t1-d9-zif
  • ldm-bf-t1-d9-zif-image
  • ldm-bf-t1-d9-zif
  • ldm-bf-t1-d9-zif

$179.00
sku / item#: BTY-T1-D9-ZIF
ships: Request a Quote for Current Ship Date

Key Features
  • 14-Pin Butterfly Package Laser Diode Mount and Heat Sink
  • Type-1 Pin Configuration
  • 9-Pin Female D-Sub Connector for Input of Laser Diode Driver and TEC Controller
  • Clamping Arms Press Laser Diode Pins Securely into Pad Locations to Prevent Contact Intermittency
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL BTY-T1-D9-ZIF
PRICE $179.00
KEY SPECIFICATIONS
  • Easy to Use Azimuth Zero Insertion Force Socket with Clamping Arms
  • Connector: D-Sub, 9-Pin
  • Maximum TE Current: 3 Amps
  • Maximum Laser Current: 3 Amps
  • Laser Mounting Screws: 4 x M2.5 HEX (included)
  • Product Dimensions (mm): 66 x 50 x 43

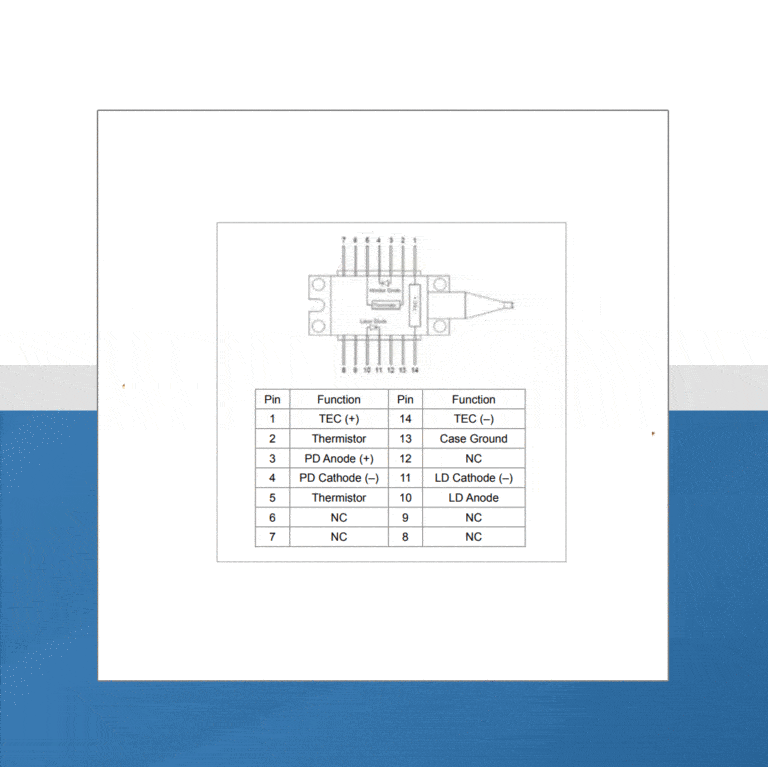

  • Configured for Laser Diode Pinout: Type-1
  • Photodiode Connectivity: Floating PD

Product Overview:

Butterfly Packaged Laser Diode Mount and Heat Sink Overview

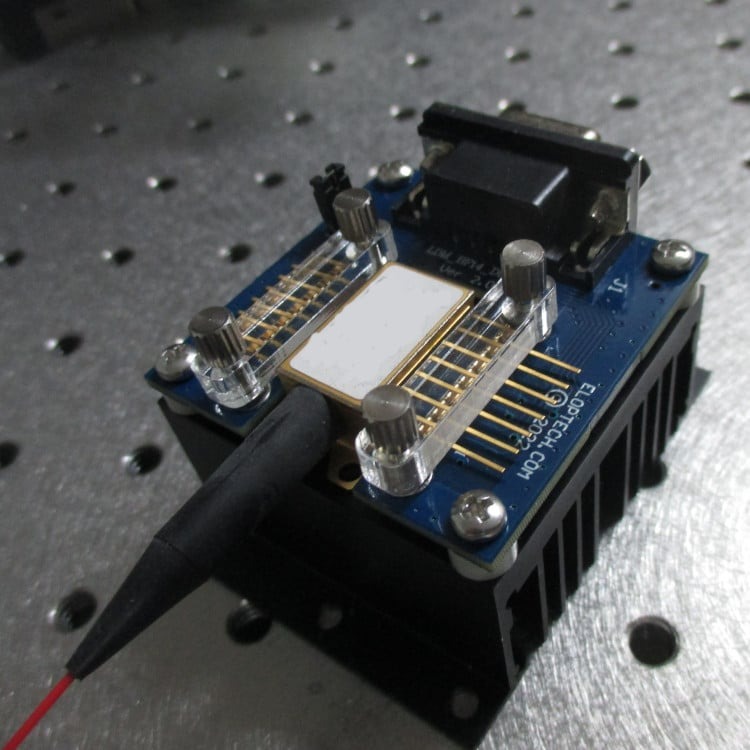

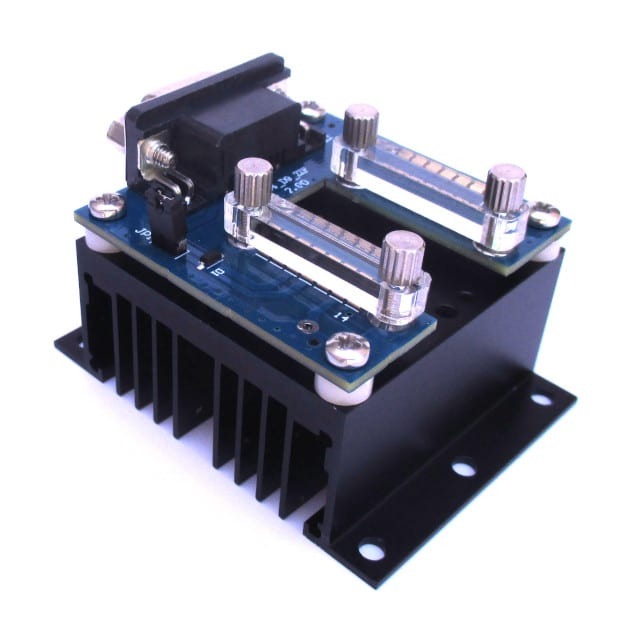

This butterfly packaged laser diode mount and heat sink is one of a series of affordable solutions designed for laboratory R&D applications. The model BTY-T1-D9-ZIF features easy-to-use plastic clamping arms to reliably, securely press the laser diode's pins into the pad locations. Secure contact connection is essential to preventing any possibility of damage to the laser that can be caused by contact intermittency. A 9-pin D-Sub connector interfaces with the laser diode controller cable. The pre-configured laser diode pinout is Type-1, which is commonly used for 976nm pump lasers as well as most single frequency DFB and DBR laser diodes.
