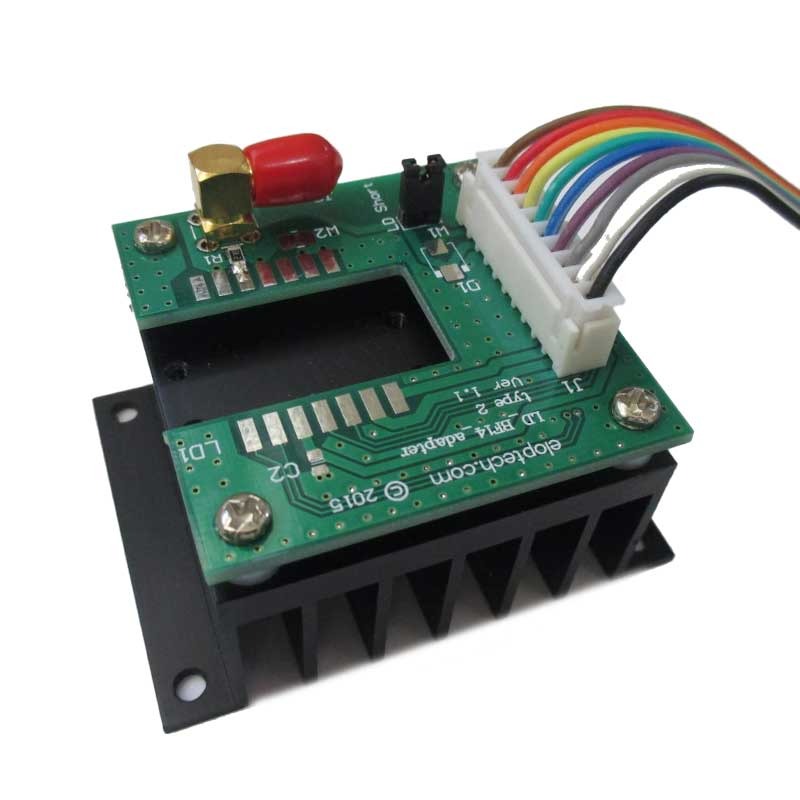

Butterfly Packaged Laser Diode Mount and Heat Sink, Type-2 Pinout, XH-Connector; 50 Ω SMA connector for RF Modulation

  • Butterfly laser diode mount

$169.00
sku / item#: BTY-T2-XHS
ships: Request a Quote

Key Features
  • Butterfly Packaged Laser Diode Mount and Heat Sink
  • Type-2 Laser Diode Pinout (Telecom Laser)
  • XH 10-Pin Connector Interface
  • SMA Connector RF Modulation Input
  • Soldered Connections for High Reliability
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL BTY-T2-XHS
PRICE $169.00
key specifications
  • Connector: XH 10-Pin Male
  • Pinout: Type-2 (Telecom Laser)
  • RF Modulation: SMA Connector, 50 Ω Impedance
  • Maximum TE Current: 3 Amps
  • Maximum Laser Current: 3 Amps
  • Laser Mounting Screws: 4x M2.5 HEX (included)
  • Dimensions (mm): 66 x 50 x 43

Product Overview:

Butterfly Packaged Laser Diode Mount and Heat Sink Overview

This butterfly packaged mount and heat sink is one of a series of affordable solutions designed for laboratory and R&D applications. The BTY-T2-XHS features a 10-pin XH connector to interface with the laser diode controller. The pre-configured laser diode pinout is Type-2, commonly used for telecom lasers, and uses a 50 Ω SMA connector for RF signal input.
