14-Pin Butterfly Packaged Laser Diode Mount and Heat Sink; Type-2 Pin Configuration

  • Type 2 Butterfly Heatsink Mount with SMA Connector

$163.60
sku / item#: BTY-T2-XHS-C1
ships: Request a Quote

Key Features
  • Mount and Heat Sink for Butterfly Packaged Laser Diodes
  • Type-2 Laser Diode Pinout
  • XH 10-Pin Connector
  • SMA Connector for RF Modulation Input
  • Soldered Connections for High Reliability
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL BTY-T2-XHS-C1
PRICE $163.60
key specifications
  • Connector: XH 10-Pin Make
  • Pinout: Type-2 (Telecom Laser)
  • RF Modulation SMA Connector Impedance: 50 Ω
  • Maximum Laser Current: 3 Amps
  • Maximum TE Current: 3 Amps
  • Photodiode Connection: Floating PD
  • Laser Mounting Screws: 4x M2.5 HEX (included)
  • Dimensions (mm): 85 x 70 x 31

Product Overview:

Butterfly Laser Diode Heatsink Overview

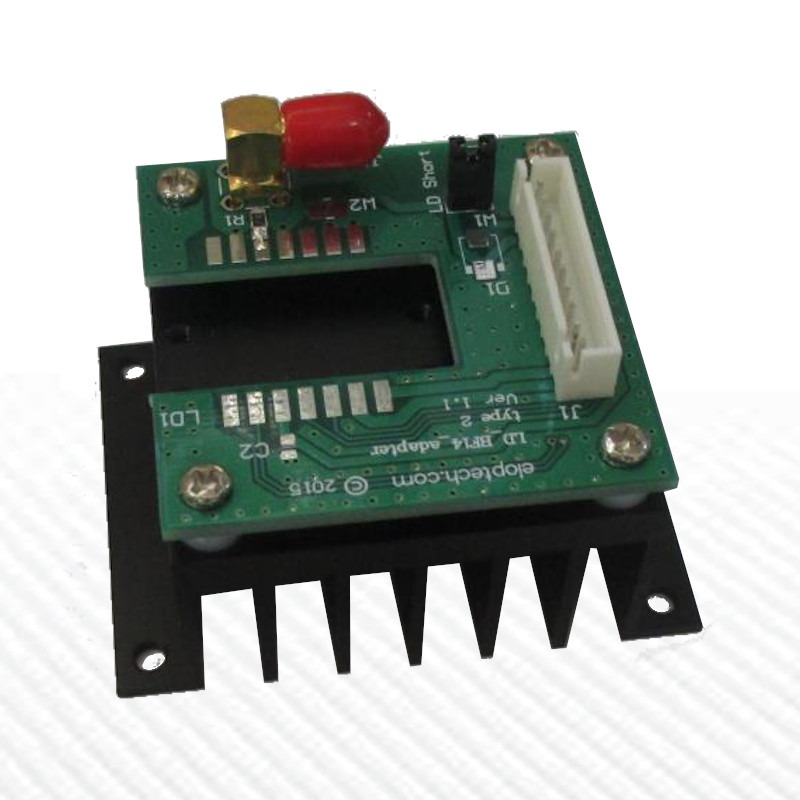

This laser diode mounting and heat sink is designed for butterfly packaged laser diodes used in laboratory and R&D applications. Model BTY-T2-XHS-C1 features a 10-pin XH connector to interface with the laser diode controller. The circuit board is preconfigured for Type-2 butterfly pinouts.
