Butterfly Packaged Laser Diode Mount and Heat Sink, Type-1 Pinout, XH-Connector

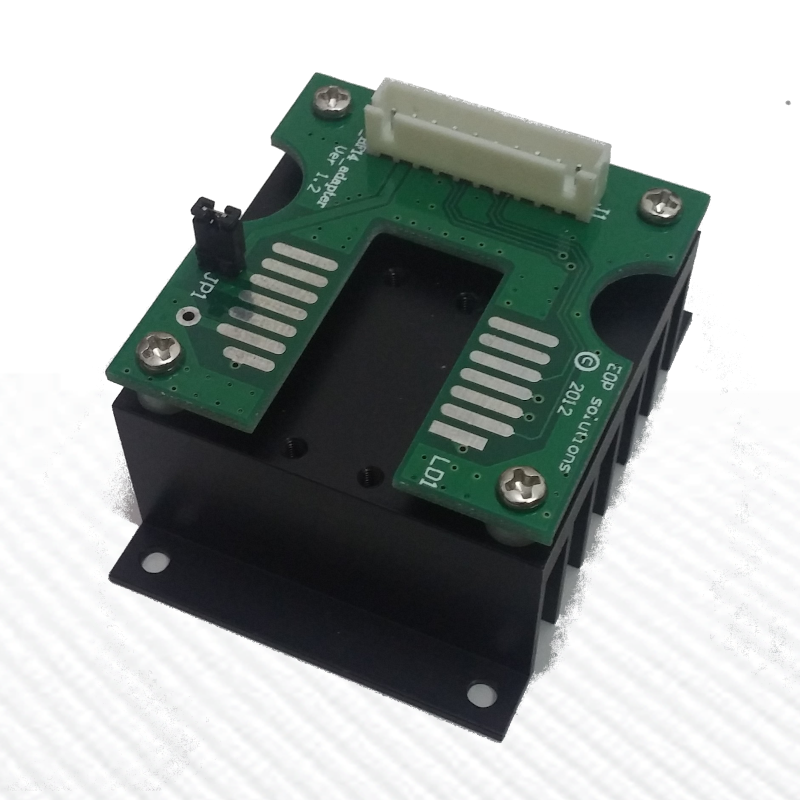

  • hx-butterfly laser diode mounting heatsink type1

$167.20
sku / item#: RLS / BTY-T1-XHS
ships: Inquire for Lead Time

Key Features
  • Butterfly Packaged Laser Diode Mount and Heat Sink
  • Type-1 Laser Diode Pinout (Pump Laser)
  • XH 10-Pin Connector Interface
  • Soldered Connections for High Reliability
  • Offered by ELOP Tech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / BTY-T1-XHS
PRICE $167.20
key specifications
  • Connector: XH 10-Pin Male
  • Pinout: Type-1 (Pump Laser)
  • Photodiode Connection: Floating PD
  • Maximum TE Current: 3 Amps
  • Maximum Laser Current: 3 Amps
  • Laser Mounting Screws: 4x M2.5 HEX (included)
  • Dimensions (mm): 66 x 50 x 43

Product Overview:

Butterfly Packaged Laser Diode Mount and Heat Sink Overview

This butterfly packaged laser diode mount and heat sink is one of a series of affordable solutions designed for laboratory and R&D applications.

Model RLS/BTY-T1-XHS features a 10-pin XH connector to interface with the laser diode controller. The pre-configured laser diode pinout is Type-1, which is commonly used for pump lasers.
