Laser Diode Mount and Heat Sink, Input Current up to 5 Amps

$340.00   Ships: In Stock | Model RLS-LDMOUNT-5A

Key Features
  • Capable of running lasers up to 5 A
  • Capable of running thermoelectrics up to 5 A
  • Compatible with 14-pin butterfly laser diode packages
  • Type 1 & Type 2 butterfly packages are supported with pre-soldered connection card
  • Zero insertion force (ZIF) socket holds laser diode
  • Laser interlock safety circuit
  • TEC Active/Bypass interlock safety circuit
  • Mounts to an optics table with standard 1/4-20″ screw

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-LDMOUNT-5A
PRICE $340.00
General SPECIFICATIONS
  • Laser Polarity: Anode Grounded
  • Supports Thermistors
  • Short Circuit Current: 10 mADC
  • Logic Level Source Current: 1.1 mA
  • Compact: 4 x 4 x 1.9 inches

Product Overview:

VERSATILITY

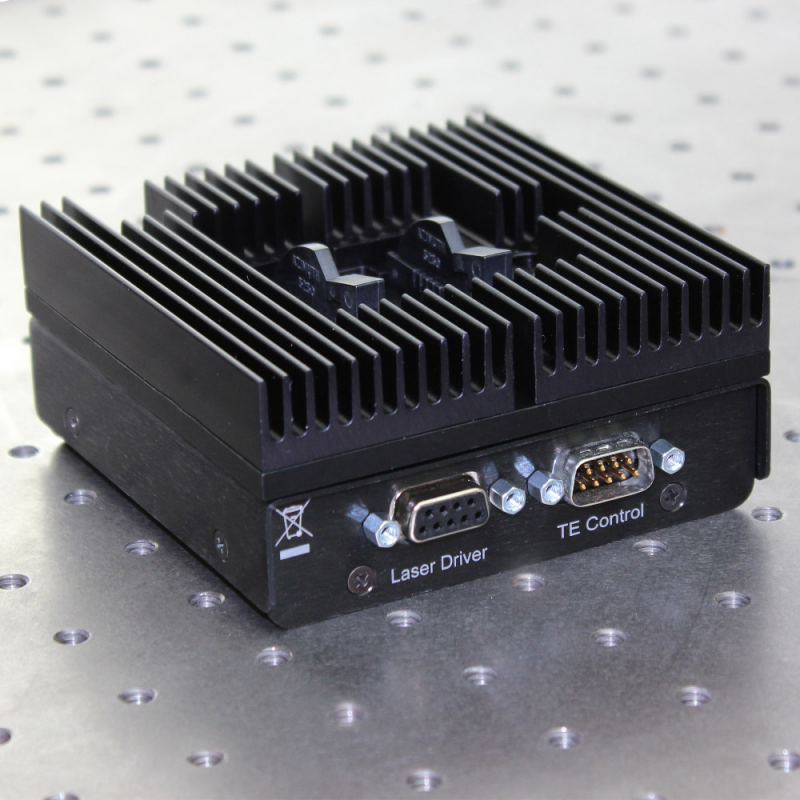

Designed for 14-pin butterfly laser diodes with internal thermistors and Thermo Electric Coolers (TEC), the LDMOUNT is a laser diode mount with integrated heat sinking, and simple connections between the drivers and the diode laser.

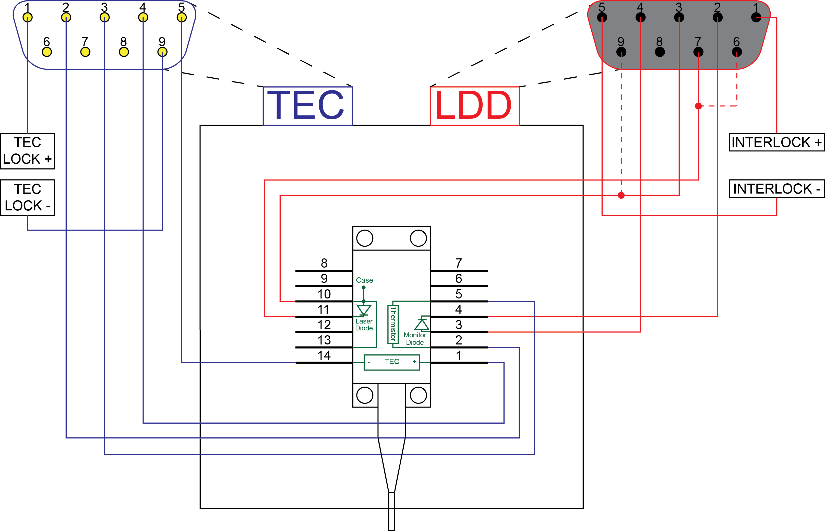

The LDMOUNT has easy connectivity. A zero insertion force (ZIF) socket holds the laser. Two 9-pin DSUB connectors enable TEC and laser driver control. Two basic butterfly laser diode types are supported. For any other pinout, the LDMOUNT-CU Card is available for hand wiring.

SAFETY
The LDMOUNT has several built-in safety features. These include a reverse bias protection diode across the laser diode, an interlock circuit for the laser diode current, and a TEC Active/Bypass switch to require active temperature control before laser current can be enabled.

APPLICATIONS
The LDMOUNT is ideal for pump and communication diode lasers. The user is able to change between the types easily by using the provided pre-configured connection card.
