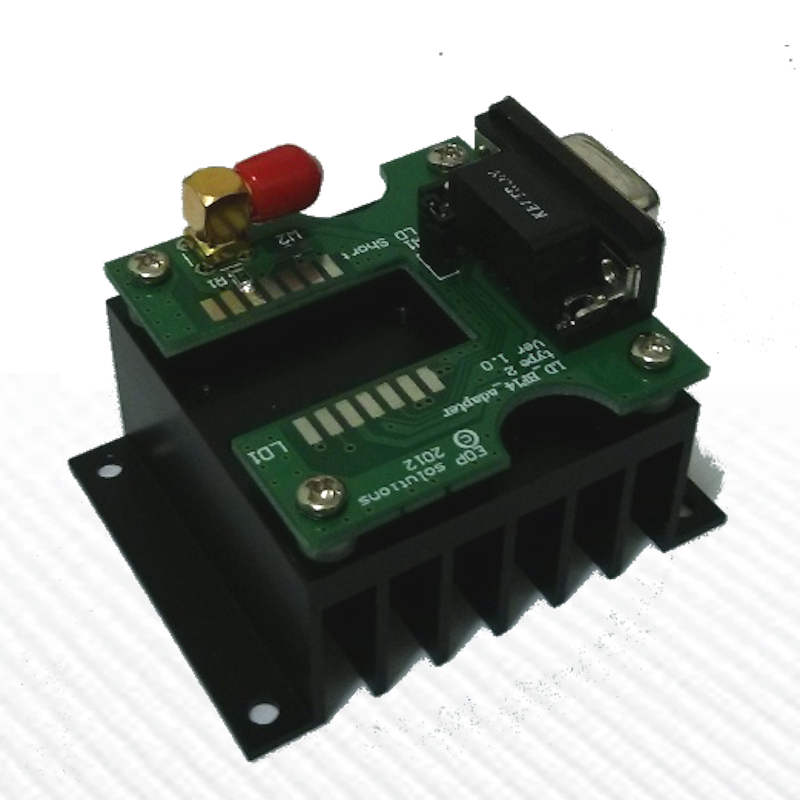

Butterfly Packaged Laser Diode Mount and Heat Sink
Type-2 Pinout with SMA Connector

  • Butterfly Type-2 Laser Heatsink and Mount

$168.10
sku / item#: RLS / BTY-T2-D9
ships: Inquire for Lead Time

Key Features
  • Butterfly Packaged Laser Diode Mount and Heat Sink, Simple and Affordable
  • Telecom Laser Diode, Type-2 Pinout Compatible
  • 50Ω Impedance SMA Connector for RF Input
  • D-Sub Connector, 9-Pin Female
  • Solder-Connections for High Reliability
  • Offered by ELOP Tech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / BTY-T2-D9
PRICE $168.10
key specifications
  • Connector: D-Sub, 9-Pin
  • Pinout: Type-2 (Telecom Laser)
  • SMA Connector Impedance: 50 Ω
  • Photodiode Connectivity: Floating PD
  • Maximum TE Current: 3 Amps
  • Maximum Laser Current: 3 Amps
  • Laser Mounting Screws: 4x M2.5 HEX (included)
  • Dimensions (mm): 66 x 50 x 43

Product Overview:

Butterfly Packaged Laser Diode Mount and Heat Sink Overview

This butterfly packaged laser diode mount and heat sink is one of a series of affordable solutions designed for laboratory applications.

Model RLS / BTY-T2-D9 features a 9-pin D-Sub connector to interface with the laser diode controller. The pre-configured laser diode pinout is Type-2, commonly used for telecom lasers, and includes a 50Ω SMA connector for the RF modulation signal input.
