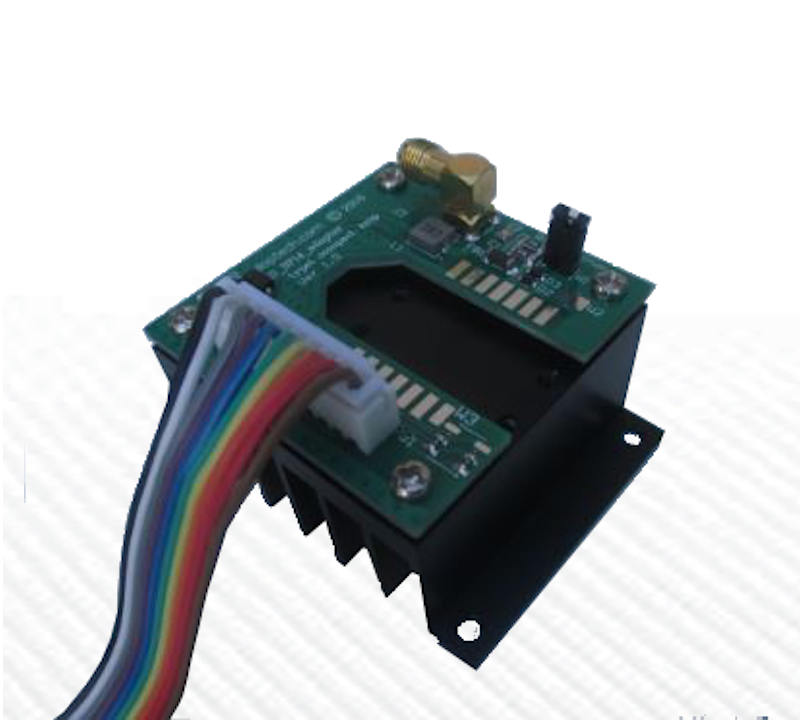

Butterfly SOA Mounting Heatsink,
Type-1 Pinout, XH-Connector and RF Input

  • SOA Laser Diode Heatsink and Mount

$219.50
sku / item#: RLS / BTY-T1SOA-XHS
ships: Inquire for Lead Time

Key Features
  • Butterfly SOA Laser Diode Heatsink
  • Type-1 Laser Diode Pinout
  • 50 Ω SMA Modulation Input Connector
  • XH 10-Pin Connector Interface
  • Soldered Connections for High Reliability
  • Offered by ELOP Tech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / BTY-T1SOA-XHS
PRICE $219.50
key specifications
  • Connector: XH 10-Pin Male
  • Pinout: Butterfly Type-1
  • RF Input Connector: 50 Ω, SMA
  • Modulation Rate: 1 – 1000 MHz
  • Photodiode Connection: Floating PD
  • Maximum TE Current: 3 Amps
  • Maximum Laser Current: 3 Amps
  • Laser Mounting Screws: 4x M2.5 HEX (included)
  • Dimensions (mm): 66 x 50 x 43

Product Overview:

Butterfly SOA Heatsink and Mount Overview

This butterfly mounting heatsink is one of a series of cost-effective solutions designed for laboratory and R&D applications.

Model RLS / BTY-T1SOA-XHS features a 10-pin XH connector to interface with the laser diode controller, and an SMA-type RF input connector with 50Ω input impedance. The pre-configured laser diode pinout is Type-1.
