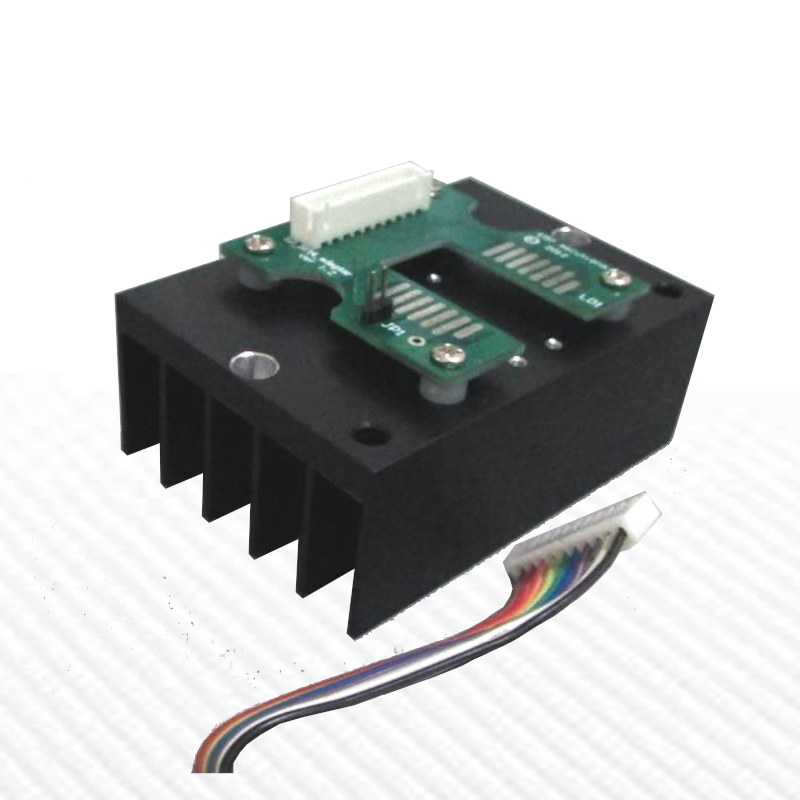

14-Pin Butterfly Packaged Laser Diode Mount with Heat Sink

  • 14-pin butterfly laser diode mounting heat sink

$163.60
sku / item#: RLS / BTY-T1-XHS-C1
ships: Inquire for Lead Time

Key Features
  • Heatsink Mount for Butterfly Pump Laser Diodes
  • Type-1 Laser Diode Pinout, Pump Laser
  • XH 10-Pin Connector
  • Soldered Connections for High Reliability
  • Offered by ELOP Tech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / BTY-T1-XHS-C1
PRICE $163.60
key specifications
  • Connector: XH 10-Pin Make
  • Pinout: Type-1 (Pump Laser)
  • Maximum Laser Current: 3 Amps
  • Maximum TE Current: 3 Amps
  • Photodiode Connection: Floating PD
  • Laser Mounting Screws: 4x M2.5 HEX (included)
  • Dimensions (mm): 85 x 70 x 31

Product Overview:

Butterfly Laser Diode Heatsink Overview

This mounting heatsink is part of a series of cost-effective solutions designed for butterfly laser diodes used in laboratory and R&D applications. Model RLS/BTY-T1-XHS-C1 features a 10-pin XH connector to interface with the laser diode controller. The circuit board is preconfigured for Type-1 butterfly pinouts which is commonly used for pump laser diodes.
