ILX Lightwave LDT-5412 Low-Cost TEC Controller/ Certified Pre-Owned / Functionally Tested with Full Warranty

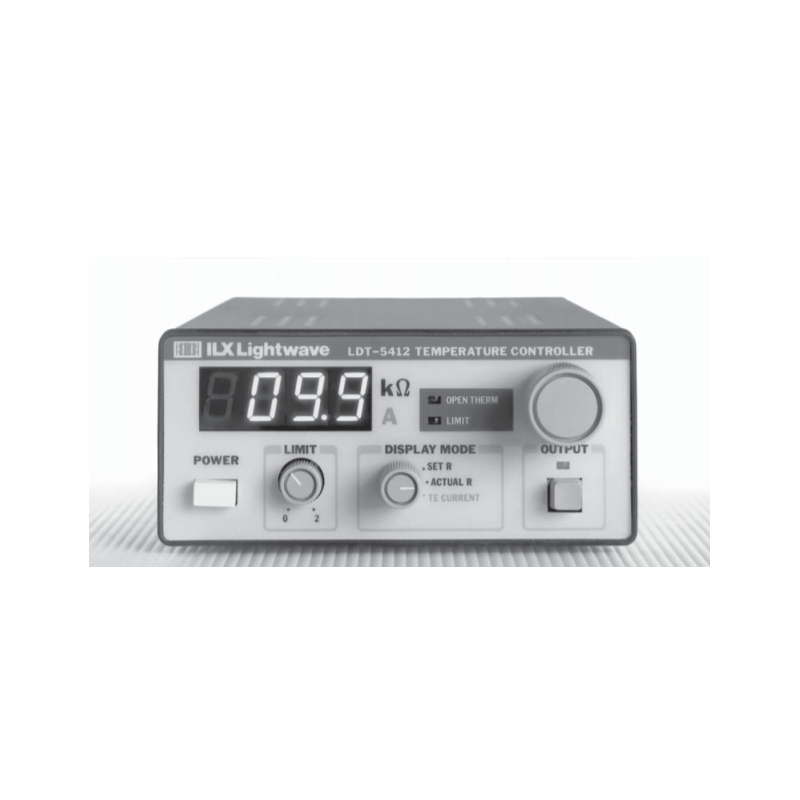

  • TEC controller top image

$275.00
sku / item#: RLS/LDT-5412
ships: In-Stock / Limited Quantity: 1 Available

Key Features
  • High stability temperature control
  • Hybrid P-I control loop for fast settling time
  • Device Condition: Certified Pre-Owned, In Excellent Condition
  • Offered by: Optical Innovations, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LDT-5412
PRICE $275.00
General SPECIFICATIONS
  • Output Type: Bipolar current source Current Range: –2 to 2A
  • Current Range: –2 to 2A
  • Compliance Voltage: >2V, DC

Product Overview:

ILX Lightwave LDT-5412 Low-Cost TEC Controller

Designed to be economical and flexible, the LDT-5412 Thermoelectric Temperature Controller offers a stable, low noise bipolar output and is optimized for controlling the temperature of laser diodes and photodetectors.

The instrument controls and displays thermistor resistane while delivering bipolar current to a thermoelectric module. The unit’s hybrid proportional-integral control loop offers fast settling times with a typical temperature stability of 0.01°C.

Thermoelectric Cooler (Peltier) Output

Range: -2.0 to +2.0 Amps
Voltage (max): +/- 3V
Type Bipolar - Linear
Setpoint Resolution: 0.01 Amps
Stability: +/- 0.005°C (1hr)
Control Algorithm: Proportional Adjustable, Integral Fixed
Limit: Front Panel Set, Resistance Units

Temperature Sensor

Thermistor NTC (2 wire)
Thermistor Sensor Resistance: 0 to 199.9K Range
Thermistor Sensor Resistance: 0.1K Resolution

TEC Controller Interface

Front Panel: 4 segment LED
Rear Panel: 15 Pin D-Sub Connector
