ILX Lightwave LDM-4989 26-Pin Butterfly Laser Diode Mount with External Temperature Control

$550.00
sku / item#: RLS/LDM-4989
ships: Currently Unavailable

Key Features
  • 20- and 26-Pin Butterfly Packaged Laser Diode Mount
  • Device Condition: Certified Pre-Owned, In Excellent Condition
  • Offered by: Optical Innovations, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
  • External case temperature control option with a built-in thermoelectric module and calibrated 10kΩ thermistor allows control of package temperature -5Degree C to +85Degree C
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LDM-4989
PRICE $550.00
specifications
  • Mounting Socket for 20- and 26-Pin Butterfly Packaged Laser Diodes
  • User Configurable Pin Configuration
  • Azimuth Zero Insertion Force Socket with Clamping Arms
  • Laser Diode Bias Current Maximum: 2 Amps
  • Dimensions 31.8 x 102 x 140 mm
  • Connector 1: Female 9-pin DSUB (Drive/Biase Current)
  • Connector 2: Male 15-pin DSUB (TEC)

Product Overview:

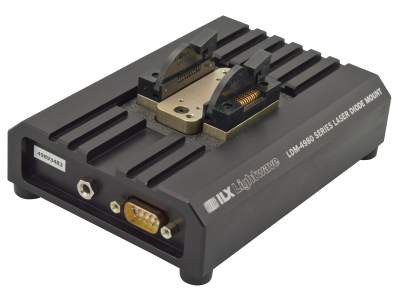

ILX Lightwave model LDM-4989 Butterfly Laser Diode Mount with External Temperature Control

The ILX Lightwave LDM-4989 butterfly packaged laser diode mount is a high performance mounting solution for industry standard 20/26-pin butterfly packaged lasers. The LDM-4989 has an external case temperature control option with a built-in thermoelectric module and calibrated 10kΩ thermistor. The external case temperature control option allows for control of package temperature -5Degree C to +85Degree C , resulting in simultaneous and independent temperature control of both laser die temperature and package temperature. The mount is configurable to support any laser diode pin configuration. It has a zero insertion force (ZIF) socket and clamping arms to make mounting of laser diodes simple and fast. The LDM-4989 LD mount from ILX Lightwave offers industry standard 9 pin D-sub input connectors for the bias current driver and TEC controller inputs.

Azimuth Zero Insertion Force Mounting Socket

The LDM-4989 series of Laser Diode Mounts provide a compact, easy-to-use solution for 20- and 26-pin butterfly packaged laser diode fixturing. Each mount features ILX Lightwave's standard 9-pin D-sub input connectors with pin designations to accommodate virtually any laser diode pin configuration. Zero insertion force (ZIF) sockets and spring-loaded clamps facilitate ease of mounting.

Key Features Review:

- User Configurable Pin Configuration
- Azimuth ZIF Socket
- NO Integrated TEC Cooler
- Supports Low Power Butterfly Packaged Lasers
- Package Styles: 20- and 26-Pin Butterfly
- TE Cooler Not Included
- Temperature Sensor Not Included
- Current Maximum: 2 Amps
- Dimensions 31.8 x 102 x 140 mm
- Connectors: Female 9-pin DSUB (Diode) / Male 9-pin DSUB (TEC)
