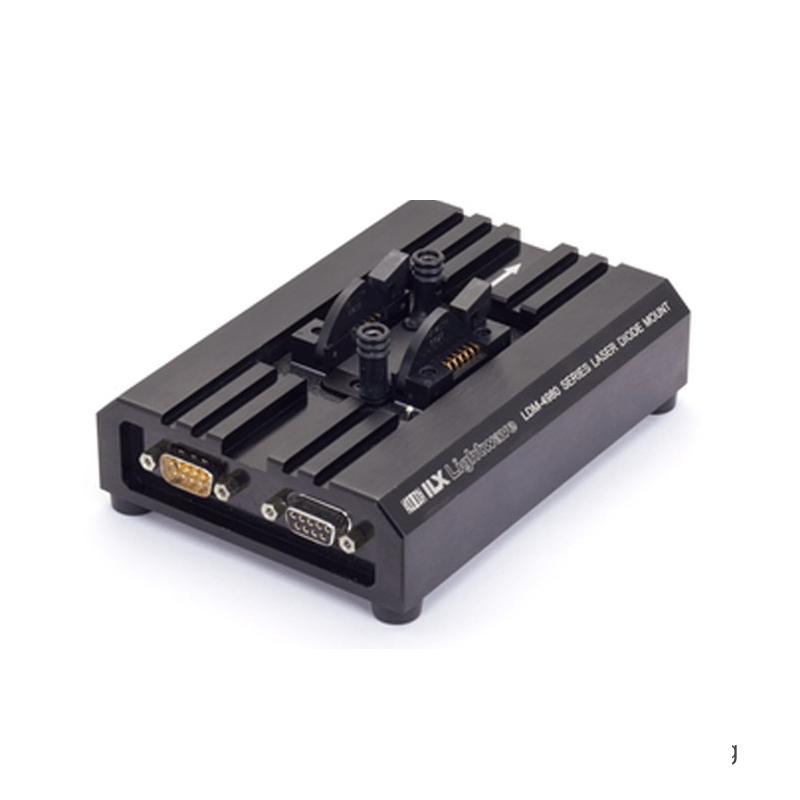

ILX Lightwave LDM-4984 Butterfly Laser Diode Mount

sku / item#: RLS/LDM-4984
ships: Currently Unavailable

Key Features
  • 14-Pin Butterfly Packaged Laser Diode Mount
  • Device Condition: Certified Pre-Owned, in excellent condition
  • Offered by: Optical Innovations, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE $375.00
  • Mounting Socket for 14-Pin Butterfly Packaged Laser Diodes
  • User Configurable Pin Configuration
  • Azimuth Zero Insertion Force Socket with Clamping Arms
  • Laser Diode Bias Current Maximum: 2 Amps
  • Dimensions 31.8 x 102 x 140 mm
  • Connector 1: Female 9-pin DSUB (Drive/Biase Current)
  • Connector 2: Male 15-pin DSUB (TEC)

Product Overview:

ILX Lightwave model LDM-4984

The ILX Lightwave LDM-4984 butterfly packaged laser diode mount is a high performance mounting solution for industry standard 14-pin butterfly packaged lasers. The mount is configurable to support any laser diode pin configuration. It has a zero insertion force (ZIF) socket and clamping arms to make mounting of laser diodes simple and fast. The LDM-4984 LD mount from ILX Lightwave offers industry standard 9 pin D-sub input connectors for the bias current driver and TEC controller inputs.

Azimuth Zero Insertion Force Mounting Socket

The LDM-4984 series of Laser Diode Mounts provide a compact, easy-to-use solution for 14-pin butterfly packaged laser diode fixturing. Each mount features ILX Lightwave's standard 9-pin D-sub input connectors with pin designations to accommodate virtually any laser diode pin configuration. Zero insertion force (ZIF) sockets and spring-loaded clamps facilitate ease of mounting.

Key Features Review:

- User Configurable Pin Configuration
- Azimuth ZIF Socket
- NO Integrated TEC Cooler
- Supports Low Power Butterfly Packaged Lasers
- Package Styles: 14 Pin Butterfly
- TE Cooler Not Included
- Temperature Sensor Not Included
- Current Maximum: 2 Amps
- Dimensions 31.8 x 102 x 140 mm
- Connectors: Female 9-pin DSUB (Diode) / Male 9-pin DSUB (TEC)
