Dual Output Precision TEC Controller, 2 x 84W Output Channels, 0.01 °C Temperature Control Stability

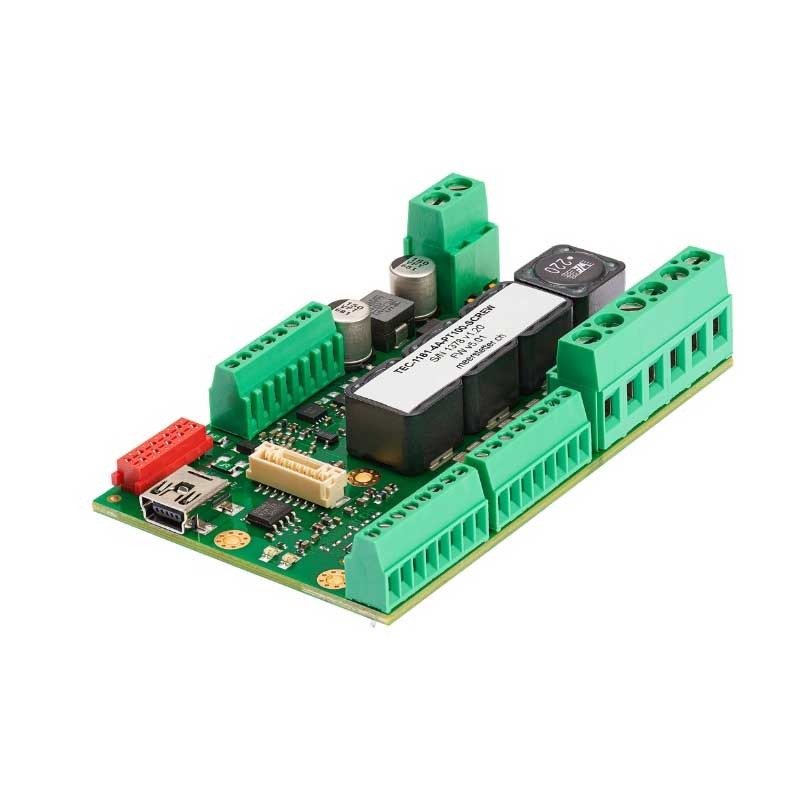

  • TEC-1161-4A TEC

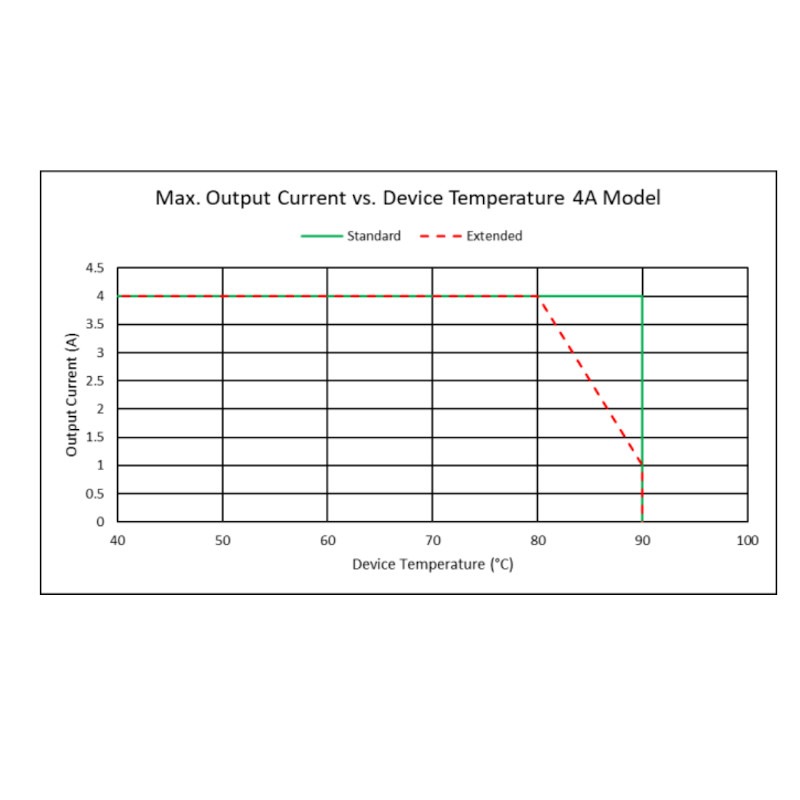

  • Dual TEC Controller Operating Temperature Output

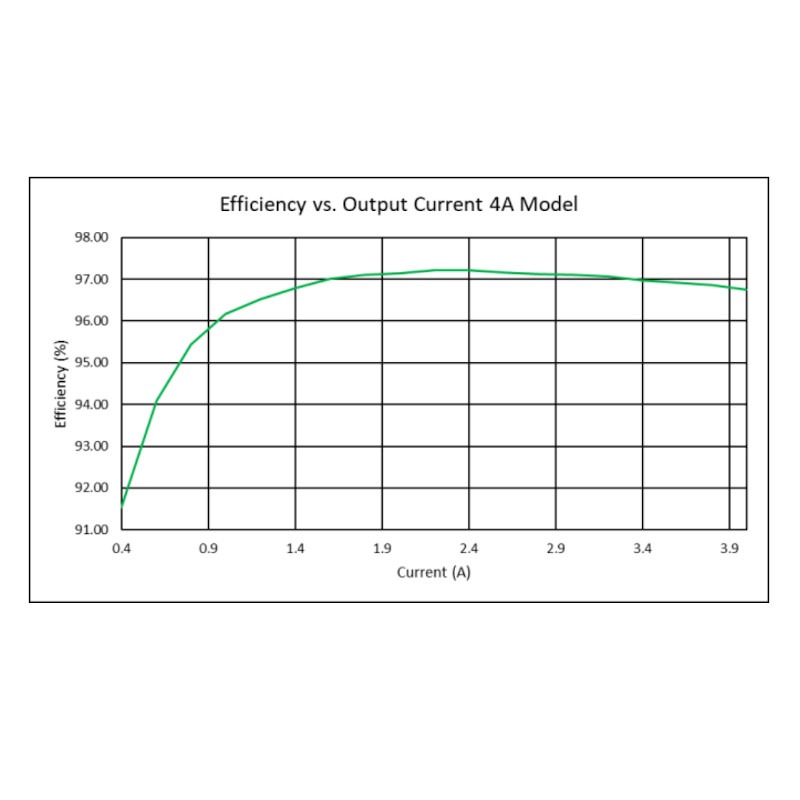

  • Dual TEC Controller Efficiency

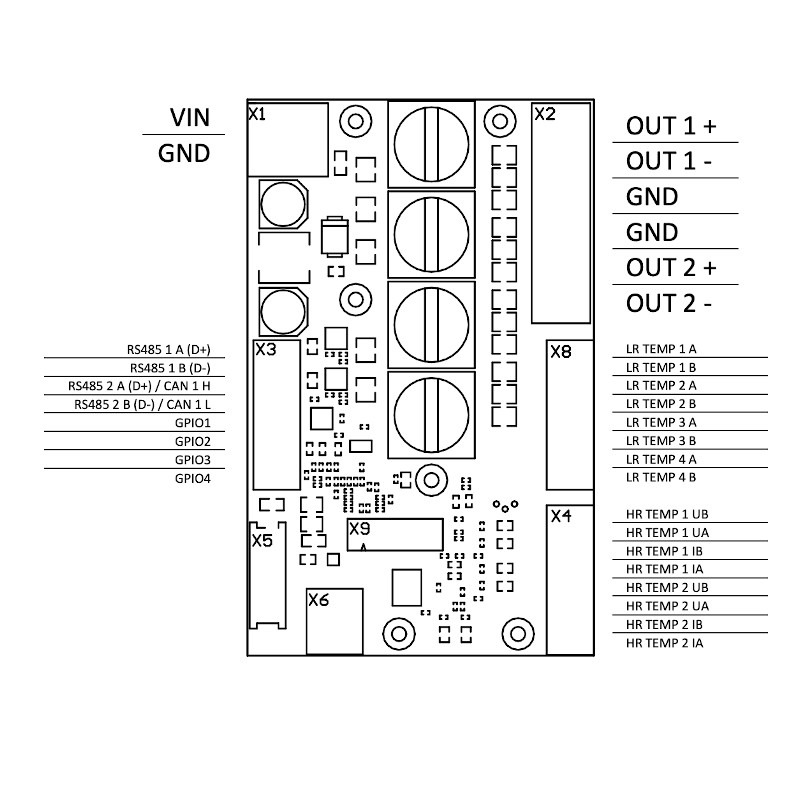

  • Dual TEC Controller Pinout
  • Shop Meerstetter Engineering TEC Controllers
  • TEC OEM Controller Display Kit
  • Shop Meerstetter Logo

$656.00
sku / item#: TEC-1161-4A-NTC / TEC-CONTROLLER
ships: Request a Quote for Current Ship Date

Key Features
  • Two Independent TEC Controller / Driver Channels
  • 2 x 84 Watt TEC Controllers
  • Output Current up to ±4 Amps per Channel
  • Output Voltage up to ± 21 Volts per Channel
  • Temperature Stability: < 0.01 °C
  • Available Sensor Types: Pt100, Pt1000, NTC, Voltage
    Standard / Default Configuration is NTC
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL TEC-1161-4A-NTC / TEC-CONTROLLER
PRICE $656.00
General Specifications
  • TEC Output Current: 0 to ±4 A per Channel
  • TEC Output Voltage: 0 to ±21 V per Channel
  • Noise and Ripple : <100 mV (p-p)
  • Temperature Control Frequency: 1 Hz, 10 Hz, 80 Hz
  • Temperature Sensor Input: NTC (ie. 10k Thermistor)
  • Auxiliary Temp. Sensor Input: NTC (ie. 10k Thermistor)
  • PID Temperature Control: PID Setting and Auto-Tuning
  • User Configuration: USB / RS485 PC Software / CAN
  • Available Temperature Sensor Types: Pt100, Pt1000, NTC, Voltage
    Standard / Default Configuration is NTC
  • Refer to Datasheet for Additional Specifications
Electrical Specifications
  • DC Input Voltage: 4 to 24 V
  • Efficiency: 94% (@ 50% Load)
Package Specifications

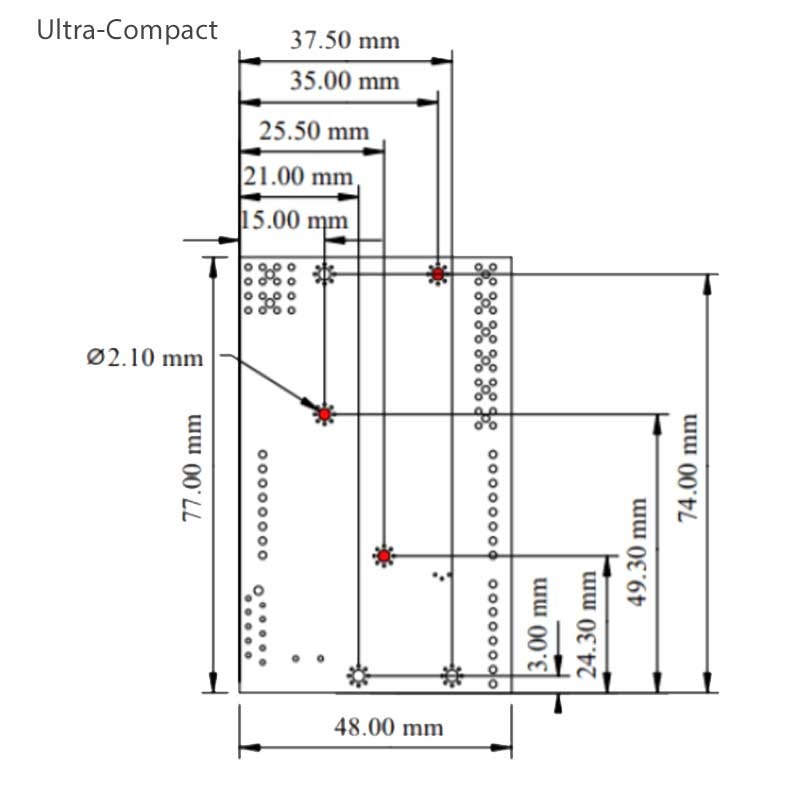

  • Dimensions (L x W x H): 77 x 48 x 20 mm
  • Remotely Controlled Mode over USB, RS485, RS422, I/O
  • Digital Interface: USB 2.0 1kV isolated (FTDI Chip); 2x RS485 / RS422
Applications
  • Pump Laser Cooling
  • High-Power Electronics Cooling
  • Infrared Detectors / Sensors

Product Overview:

2x 84 Watt, Dual Output Precision TEC Controller

The TEC-1161-4A is a specialized TEC controller able to precisely control two independent Peltier elements or resistive heaters. Each output channel features a true bipolar current source for cooling / heating, two temperature monitoring inputs (1x high resolution, 1x auxiliary) and intelligent PID control with built-in autotune. The TEC-1161's hardware and firmware offers various communication and multiple safety options.

Powerful Two-Channel TEC Control

The TEC-1161's two independent channels may also be operated in parallel, to either drive two individual or one common load (current doubling). Further functionality and features include: smooth temperature ramping, thermal stability indication and auto gain (NTC probes). The heating and cooling power is optimized by proprietary thermal management routines based on power balance models (for Peltier elements and resistive heaters).

Auxiliary Temperature Sensors for Added Safety

The TEC-1161-4A is delivered configured for independent NTC (thermistor) temperature sensors for each channel. Each channel is also configured with an auxiliary temperature input that allow the connection of an NTC temperature sensor located on the heat sink of the Peltier elements; these auxiliary sensors can be used to ensure the thermal safety of the system by preventing thermal runaway. The analog measurement circuit is factory calibrated.

Versatile TEC Control for Laser Diodes and Temperature Sensitive Electronics

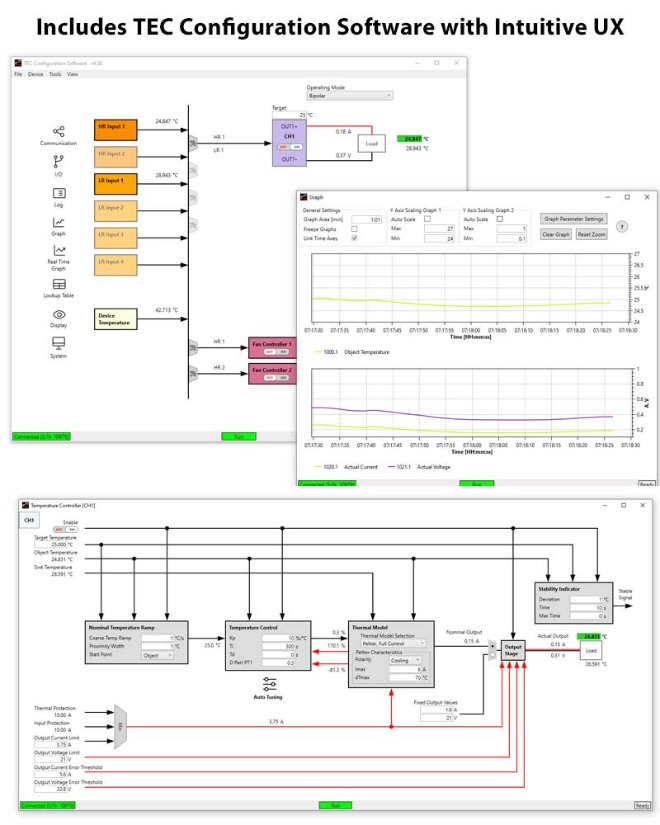

These small footprint TEC controllers are digitally controllable through software or API and scripting, including a LabVIEW VI software (PDF) available to operate the TEC controller. Several communication and security features enhance the functional range. The PC-Software allows data logging and configuration import/export.

DPY-1113 Display Kit for Rapid Prototyping

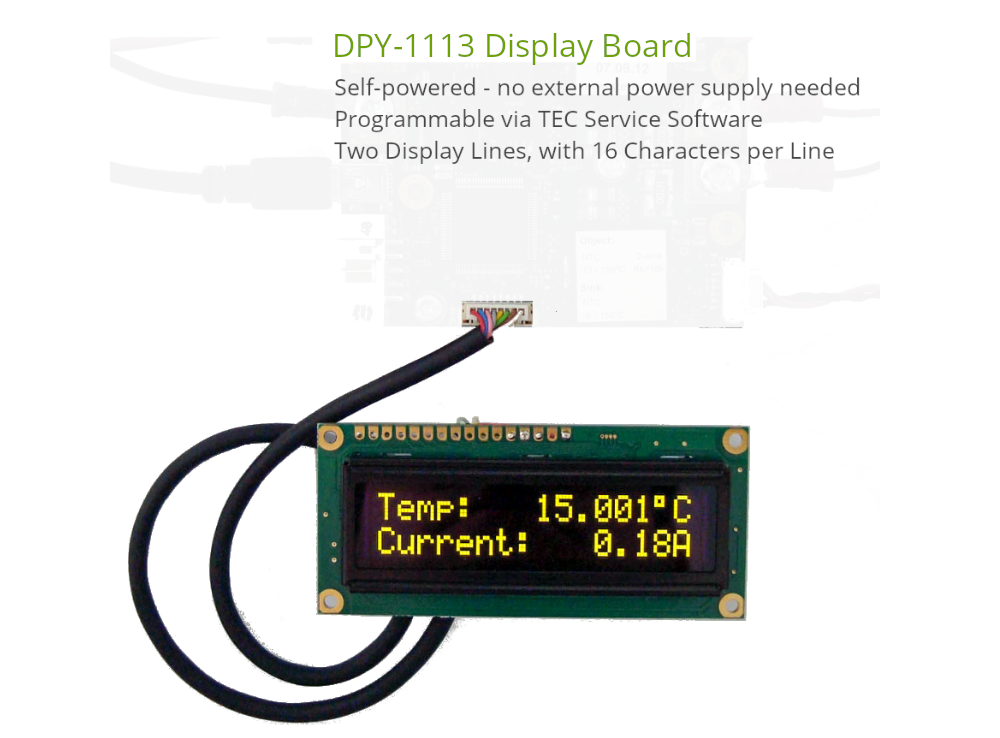

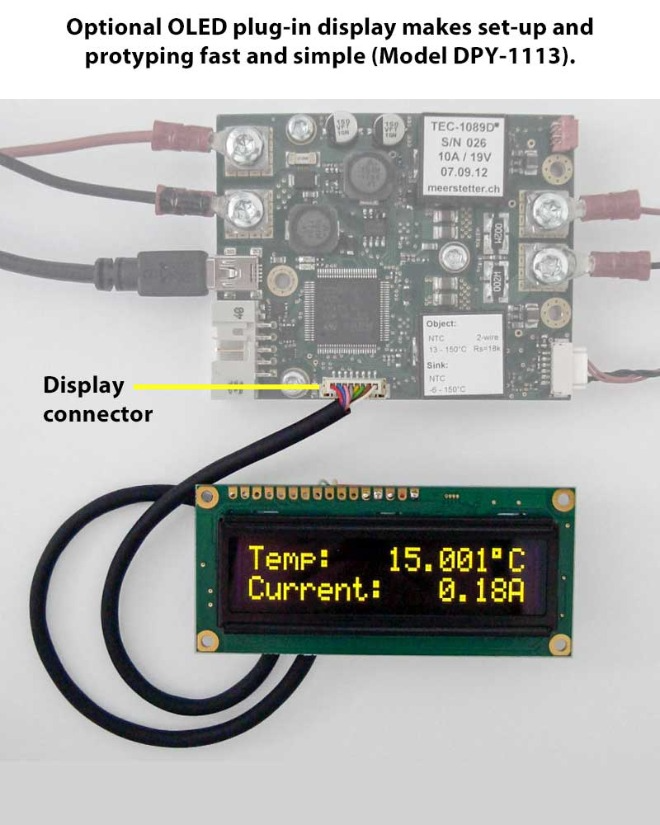

The DPY-1113 TEC Status Display Kit is available to help speed prototyping efforts. The DPY is configurable via the TEC Service Software, and allows the display fields to be customized.

Complete Laser Diode Control Control Solution Portfolio

This module is part of the TEC-Family of Meerstetter TEC Controllers designed to operate alongside devices of the LDD-Family of laser diode drivers. Both families of drivers share the same system bus, design, technology and physical dimensions.

Temperature Sensor Options for Application Versatility

The TEC-116A-4A is available in other configurations: Pt100/Pt1000 temperature sensor inputs, Voltage sensor inputs. The TEC-1161-4A can be ordered with different connection options: the standard module is configured with screw terminals; also available is a SIP-pin option for direct connection to ribbon cables or another circuit board, or solder pads for direct wire connection. Inquire for details on the different configurations and a quotation.
