TEC Status Display Kit (DPY‑1113), OLED Add‑On for Meerstetter TEC Controllers

  • TEC Controller Display Board
  • ch-image

$215.00
sku / item#: DPY-1113 / TEC-DISPLAY
ships: In-Stock (USA)

Key Features
  • OLED Display Kit for Meerstetter TEC Controllers
  • Ready‑to‑use display kit with cable and connector for quick integration into TEC systems
  • Connects Directly to TEC Board
  • Display content configurable via TEC Configuration Software (temperature, voltage, current, status, etc.)
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Buy Now / Add to Cart

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL DPY-1113 / TEC-DISPLAY
PRICE $215.00
General Specifications
  • Two Lines x 16 Characters
  • Character Color: Yellow
  • Cable Length Approx 50 cm
  • Outside Dimensions: 80mm x 36mm x 10 mm
  • Compatible with TEC‑Family controllers (e.g., TEC‑1089, 1090, 1091, 1122, 1163, etc.; TEC‑1092 requires EVL‑1093)
  • Required firmware ≥ v1.60
  • No external power required (implied in product info, typical spec)

Product Overview:

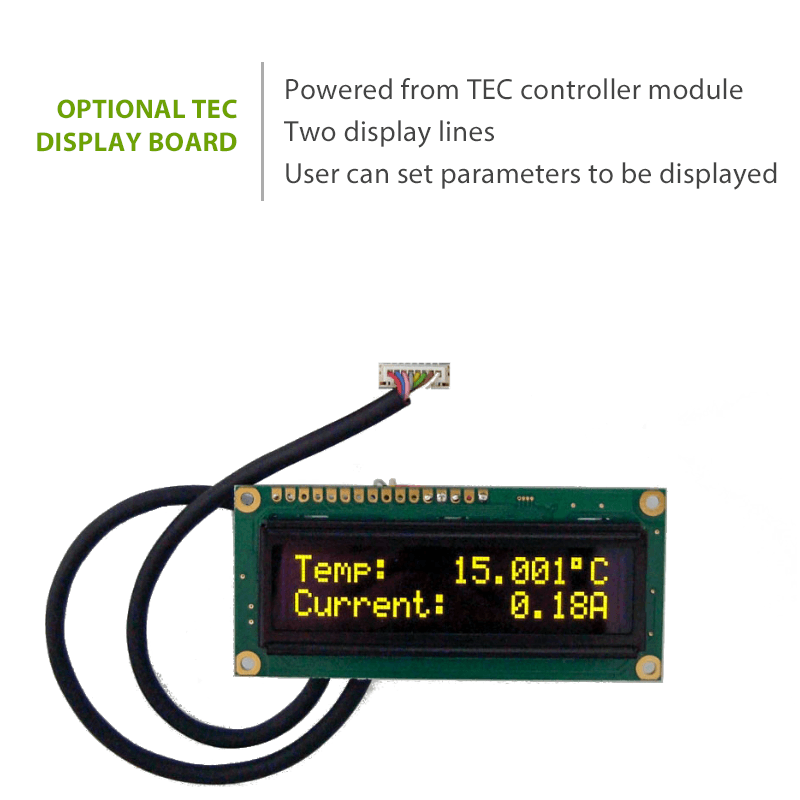

TEC Controller Status Display Kit for Meerstetter TEC Modules

The DPY‑1113 is an add‑on OLED display kit for Meerstetter TEC family controllers, providing real‑time visualization of system parameters such as temperature, voltage, current, and status. Display content and format can be freely configured via the TEC Configuration Software, enabling flexible monitoring of all controller parameters. The ready‑to‑use kit includes cable and connector and connects directly to compatible TEC controllers, making it suitable for standalone operation in single‑ or dual‑channel setups. The display is compatible with TEC‑family controllers (e.g., TEC‑1089, 1090, 1091, 1122, 1163, etc.; TEC‑1092 requires EVL‑1093) and requires firmware version ≥ v1.60.
