Water Cooling Module

  • OptLasers Water Cooling Plate_Top
  • OptLasers Water Cooling Plate_Back
  • OptLasers Water Cooling Plate_Water Ports
  • OptLasers Water Cooling Plate_Mechanical 1
  • OptLasers Water Cooling Plate_Mechanical 2

$114.00
sku / item#: RLS/001463
ships: 5 Days

Key Features
  • High Precision Machined Aluminum
  • Versatile Applications
  • Compact Size
  • Offered by: OptLasers, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/001463
PRICE $114.00

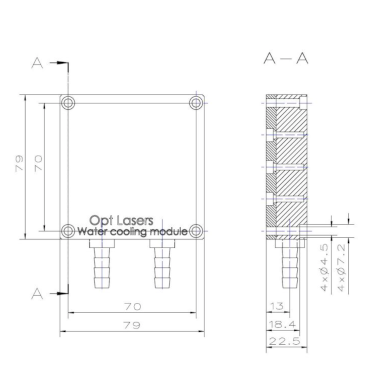

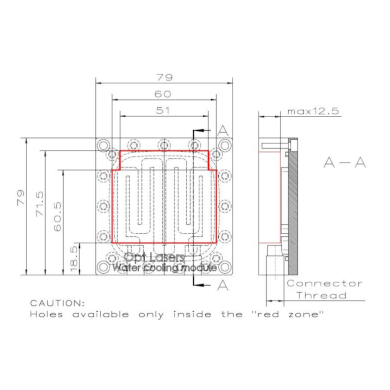

Mechanical
  • Outside Dimensions: 79 mm x 79 mm x 23 mm
  • Brass Hose Barb Fittings, 8 mm
  • Mount Hole Spacing: 70 mm x 70 mm
  • Material: Aluminum
  • Weight: 400 g

Product Overview:

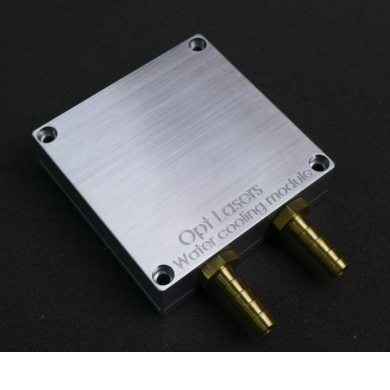

Water Cooling Module Description:

This water cooling block plate is useful for laser diode cooling, laboratory instruments, medical products, recirculating chillers.

The user provides a source of cool liquid (e.g.: tap water). The liquid travels back and forth through the chambers inside of the water block thereby absorbing the heat from the TECs or electronics. The warmer liquid then exits the water block.

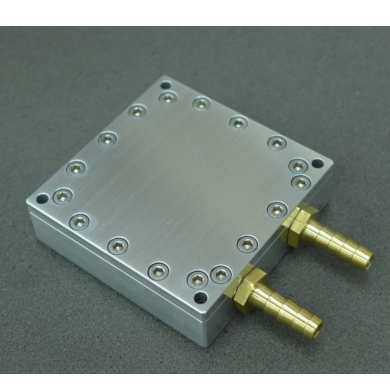

Plates are CNC machined from solid billets of aluminum and connect together using seventeen M4 screws and O-ring seal.

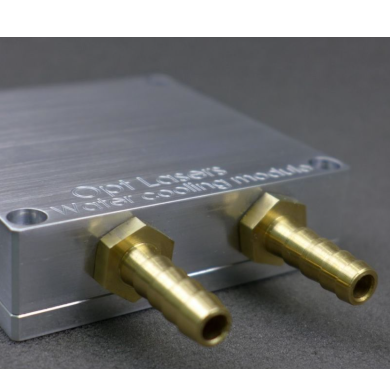

Inlet and Outlet are on the same side. The module has 2 pieces of brass hose barb fittings.
