TEC Controller Board
MOT705M_OEM

$110.00   ships: 3 days | item#: RLS/MOT705M-OEM

Key Features
  • Two versions; stand alone MOT705_OEM and MOT705M_OEM (micro control with LabVIEW GUI)
  • Supports MOT700X and MOT300-25 TEC Controller modules
  • Very small footprint (72 x 45mm)
  • 3V to 5V operation
  • Complete evaluation and verification solution
  • Fully RoHs compliant

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/MOT705M-OEM
PRICE $110.00
MOT705_OEM AND MOT705M_OEM
  • ±2A, ±2.5A, or ±3A Maximum TEC Current
  • Temperature Stability Better than ±0.002°C
  • Adjustable TEC Voltage Limit
  • Independent Cooling and Heating Current Limit
  • Voltage Programmable TEC Current Set
  • Slow Start Circuit for TEC Protection
  • Very Low Noise and Low Ripple Design
  • TEC Current Monitor
  • TEC Temperature Monitor
  • Over-temperature and Under-temperature Alarm
  • Precision Reference Voltage Output
  • Low Power Consumption
  • Small Footprint
  • Full RoHS compliant

Product Overview:

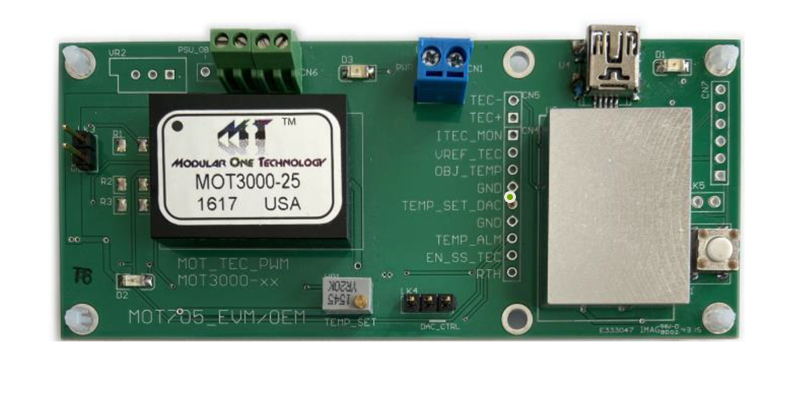

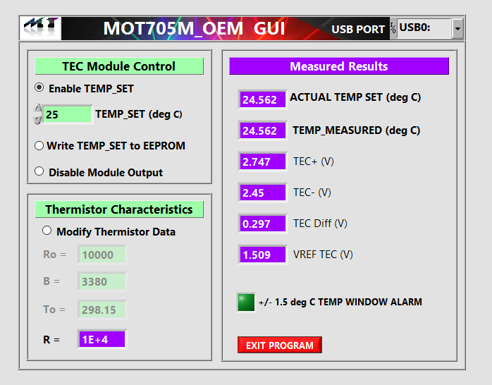

The MOT705_OEM has all the functionality of the MOT701_OEM in a smaller footprint (72 x 44 mm). It also includes component footprint for a variable power supply for the Object board. This feature is not implemented normally unless it is requested when ordered. The Object board can be used for test mounting the TEC, which includes a temperature feedback thermistor and diodes which can be driven by MOT705_OEM to generate heat, simulating dissipation from a laser diode or other heat generating elements of the target system. The MOT705_OEM is designed to allow the user to quickly evaluate and implement a Thermoelectric Cooler (TEC) design based on the MOT700x and MOT3000 series TEC controller modules. It can be used standalone (MOT705_OEM) utilizing on-board potentiometers to set target temperature and monitor object temperature, TEC current and temperature alarm status. The micro control version MOT705M_OEM allows this TEC controller to be connected to a PC using USB interface. The various parameters can be controlled through a graphical user interface (GUI).
