Precision Single‑Channel TEC Controller, 700 W Typical Cooling Capacity, ±25 A / ±56 V Output, ≤0.01 °C Stability

  • p-tec-controller-tec-1163-tb-1280
  • p-tec-controller-tec-1163-con-1280
  • p-tec-controller-tec-1163-configurations-1280
  • meerstetter-engineering-tec-controller-display
  • meertstetter-engineering-tec-controller-software

$945.00
sku / item#: TEC-1163 / TEC-CONTROLLER
ships: Request a Quote for Current Ship Date

Key Features
  • Controls temperature to within 0.01 °C of desired set-point
  • TEC output current: 0 to ±25 A
  • TEC output voltage: 0 to ±56 V
  • Thermistor / NTC primary temperature sensor input (other sensor types available)
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL TEC-1163 / TEC-CONTROLLER
PRICE $945.00
General Specification
  • TEC Output Voltage: 0 to ±56 V
  • TEC Output Current: 0 to ±25 A
  • Auxiliary Temp. Sensor Input: NTC (ie. 10k Thermistor)
  • Smooth Temperature Ramping and High Thermal Stability
  • PID Temperature Control: PID Setting and Auto-Tuning PID Set Capability
  • Available Temperature Sensor Types: Pt100, Pt1000, NTC, Voltage
    Standard / Default Configuration is NTC
  • Output voltage ripple: 120 mVpp at 25 A.
  • Refer to Datasheet for Additional Specifications
Electrical Specifications
  • Input voltage: 11.5–63 VDC; maximum input current: 27 A
  • Power efficiency: 93% at 50% load and 95% at 100% load, under datasheet test conditions
  • Input ripple tolerance: 300 mVpp, provided UIN remains within limits
Package Specifications
  • Dimensions (L x W x H): 160 mm x 65 mm x 28 mm

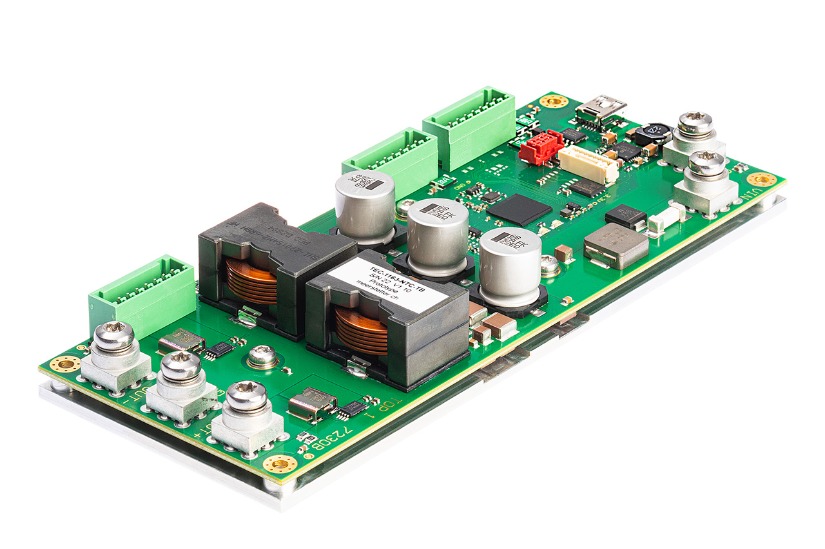

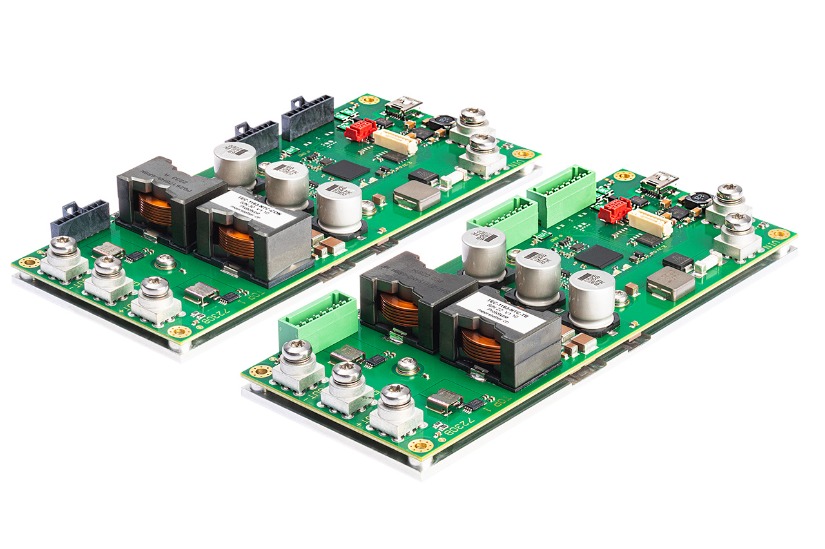

  • Terminal configuration options: NC, CON locking connector, or TB terminal block

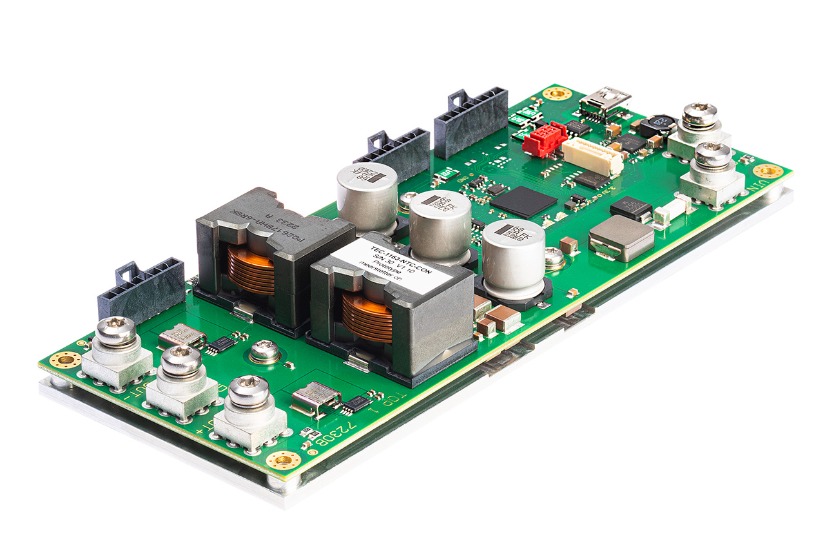

  • CON locking Connector available (best suited for series production); Inquire for Quote
  • Up to 10 GPIO signals for monitoring and control
  • Control Interfaces: USB, RS485, CANopen, RS232 TTL, I/O
Applications
  • Pump Laser Cooling
  • High-Power Electronics Cooling
  • Thermal Cycling
  • Autonomous, mobile devices

Product Overview:

700 Watt Output TEC Controller Overview

The TEC‑1163 is a high‑precision single‑channel thermoelectric controller for driving and monitoring Peltier elements and resistive heaters. It is fully digitally controlled, its hardware and firmware offer numerous communication and safety options. It is a true bipolar DC current source for cooling / heating of Peltier elements, with three temperature monitoring inputs (1x high resolution, 2x low resolution) and intelligent PID control with auto tuning. Thermal control is managed through digital PID control, sensor feedback, configurable limits, and ramping functions.

Auxiliary Temperature Sensors for Added Safety

The TEC-1163 is delivered configured for NTC (thermistor) temperature sensors. The controller is also configured with auxiliary temperature inputs that allow the connection of NTC probes located on the heat sinks of the Peltier elements. These auxiliary sensors can be used to ensure the thermal safety of the electronics system by preventing thermal runaway. The analog measurement circuit is factory calibrated.

Multiple TEC Controller Interface Options

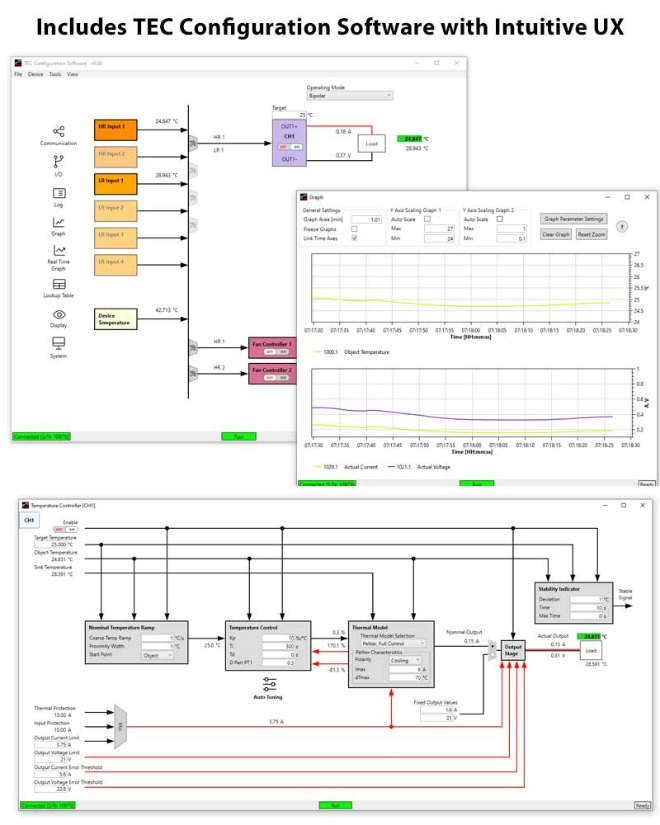

This laser diode TEC controller includes PC-Software which allows configuration, control, monitoring and live diagnosis of the TEC Controller using USB, RS485, RS232 TTL or CANopen connections from a PC running Windows.

Software Control and Non-Volatile Memory Operation

After power up, the unit will operate according to pre-configured values. The software comes with a user-friendly interface for maintenance, firmware upgrades, basic data logging and device calibration. All of the parameters can be saved a nonvolatile memory. Saving can also be disabled for bus operation.

Display Kit for Rapid Prototyping

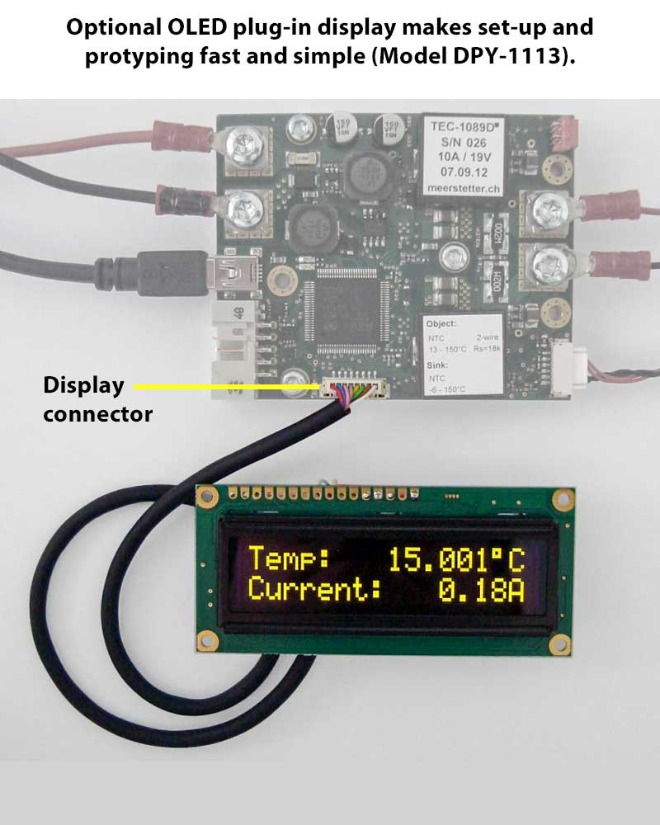

The DPY-1113 TEC Status Display Kit is available to help speed prototyping efforts. The DPY-1113 Display is configurable via the TEC Service Software, and allows the display fields to be customized. The OLED Display DPY-1113 can be connected with the connector X13. Other displays for the TEC-1163 are available: DPY-1114 and DPY-1115; Inquire for details on the different OLED displays from Meerstetter.
