Certified Used Newport Model 700 TO-Can Packaged Laser Diode Mount

  • Used Newport Laser Diode Mount Model 700

Request Quote
sku / item#: RLS/700-9-5.6
ships: Currently Unavailable

Key Features
  • Used TO-Can mount; operationally tested and in good working condition; cosmetically in fair condition
  • Temperature controlled mount for 5.6mm and 9mm TO-Can packaged laser diodes

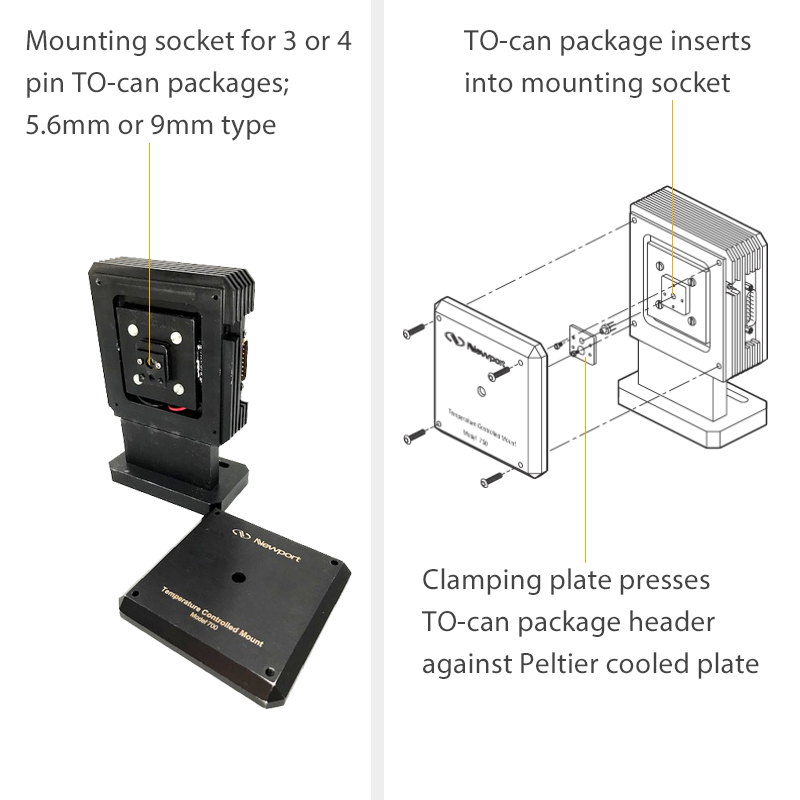

  • Peltier cooled mounting plate; front clamping plate presses TO-can header against peltier cooled back plate
  • Configurable mounting socket and wiring accommodates 3 pin and 4 pin configurations
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/700-9-5.6
PRICE Request Price
Specifications
  • Accommodates 3 and 4 pin packages
  • Accommodates 5.6mm and 9mm TO-can packages
  • Includes 2 x 12.5W integrated Peltier / TE coolers
  • TO-Can Package Beam Height: 50mm
  • Configurable rear panel wires allow user to set pins for any configuration
  • Side panel d-Sub connectors for TEC Controller and Current Source Connections

Product Overview:

Newport Model 700 TO-Can Laser Diode Mount Overview:

These model 700 laser diode mounts offer an affordable and convenient mounting solution. Direct access to the TO-Can window is offered as well as two built-in 12.5 watt Peltier thermoelectric coolers. This allows for a wide operating temperature range and high efficiency heat transfer which extends the operational lifetime of any diode used with this mount. The sockets and wiring will accommodate both 3 and 4 pin configurations. The rear panel can be removed to configure for any pin configuration. The sides of the mount have d-SUB connectors for current source and temperature (TEC) controller connections. Optimum temperature control is achieved via two built-in 12.5 W Peltier thermoelectric coolers (TEC). To increase system flexibility, the mount incorporates a nitrogen purge fitting, a BNC connector and solder post for modulation (BIAS-T not included), and two temperature sensors (thermistor and AD592CN)
