1 Amp x 3 Channel Laser Diode Driver

  • 1 Amp, 3 Channel Laser Diode Driver
  • 1 Amp, 3 Channel Laser Diode Driver for OEM Applications
  • 1 Amp, 3 Channel Compact Simple Laser Diode Driver

$375.00
sku / item#: RLS/LPLDD-1A-16V-3CH
ships: Request a Quote for Current Ship Date

Key Features
  • 3 Separate Driver Channels, Independently Controlled
  • Up to 1 Amp per Channel
  • Soft Start Current Ramp 2000 ms
  • Offered by: OptLasers, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LPLDD-1A-16V-3CH
PRICE $375.00
Electrical specifications
  • Maximum Laser Diode Driver Current Output: 1 Amp
  • Number of Outputs: 3
  • Modulation Frequency 0 - 100 kHz
  • Modulation Input Voltage Range: 0 - 5V
  • Modulation Type: Analog
  • Reverse Polarity Protection: No
  • Soft Start Ramp Time (ms): 2000ms
  • Input Voltage: (V) 3.3VDC - 12VDC
  • Default Current Setting: 500mA per output
  • Transistor type N-MOSFET
Dimensions
  • Dimensions (LxW mm): 55mm x 23.5mm

Product Overview:

1 Amp x 3 Channel Laser Diode Driver Overview

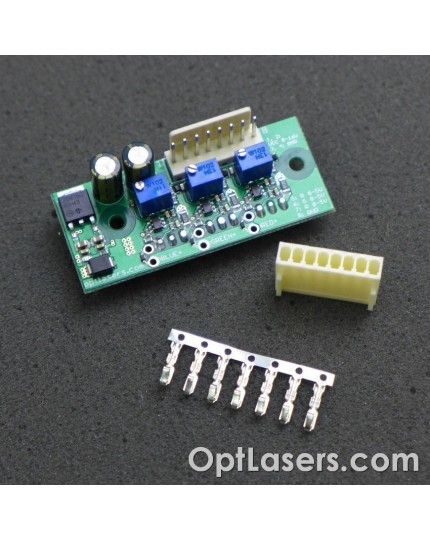

These affordable PCB mounted laser diode drivers offer a cost effective way to driver multiple laser diodes simultaneously. Originally designed for integration into red / green / blue laser control circuits in commercial products, these driver modules are now offered as an affordable laboratory driver.

They include a 2000 millisecond slow start current ramp. They have 3 separate trim potentiometer adjustment knobs to set the amplitude of of current to each laser. The adjustment knob controls are clearly identified on the PCB to make operation and set-up simple and intuitive. There are separate output connectors for each laser. These units do not offer temperature protection for the laser diode under test, and the driver PCB should by mounted by the user to an aluminum heat sink for proper operation.
