ILX Lightwave LDX-3525 Laser Diode Driver / Certified Pre-Owned / Functionally Tested with Full Warranty

  • Used ILX Lightwave Laser Diode Driver for Sale

Request Quote
sku / item#: RLS/LDX-3525
ships: Currently Unavailable

Key Features
  • Precision 200 mA / 500 mA Laser Diode Driver
  • Setpoint Accuracy: ±0.1% (±0.2 mA / ±0.5 mA)
  • Front Panel Control; USB Not Installed
  • Certified Pre-Owned, In Excellent Condition
  • Offered by: Optical Innovations, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LDX-3525
PRICE Request Price
General SPECIFICATIONS
  • Output Current: 200 mA / 500 mA
  • Setpoint Resolution: 12 bit (100 μA / 150 μA)
  • Setpoint Accuracy: ±0.1% (±.2 mA / ±0. 5mA)
  • Compliance Voltage: 7.0 V
  • Short Term Stability: <20 ppm
  • Long Term Stability: <50 ppm
  • Noise and Ripple, CW: <2 μA rms /<2 μA rms
  • Noise and Ripple, Modulation Mode: <4 μA rms /<4 μA rms
  • Front-Panel Operation Only; USB Not Installed
  • Refer to Datasheet for additional specifications

Product Overview:

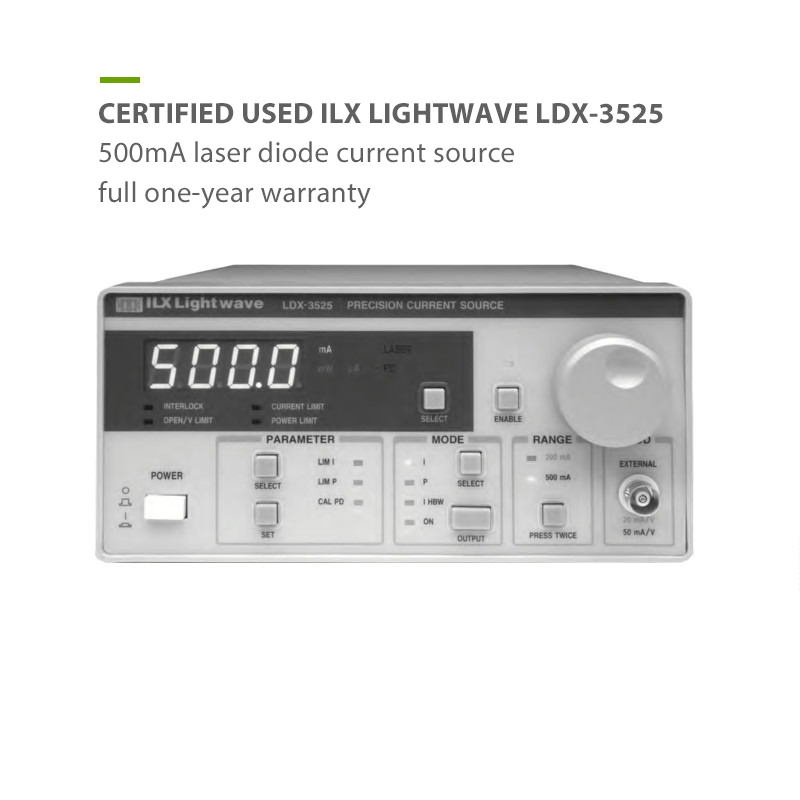

ILX Lightwave LDX-3525 Laser Diode Driver, Certified Pre-Owned

The ILX Lightwave LDX-3525 is part of the 3500 series family of low noise, high stability laser diode current sources and drivers specifically for precision control of low power lasers. It is a switchable range 200mA / 500mA current source that offers robust integrated laser diode protection circuits.

These drivers are loaded with industry leading features such as dual current range, and fine and coarse set point control through the front panel digital trim potentiometer control knob. They offer an external modulation capability. Slow start current set point, current limits and voltage limits offer a high level of laser diode protection. These drivers operate in either a constant current mode (CC) or a constant optical power mode (APC) to cover a wide range of research lab testing applications.
