ILX Lightwave LDT-5525 TEC Controller / Certified Pre-Owned / Functionally Tested with Full Warranty

  • Used ILX Ligtwave TEC Controller Model LDT-5525

sku / item#: RLS/LDT-5525
ships: Currently Unavailable

Key Features
  • 24 Watts Output Power
  • Typical Drift < 0.004 Degrees Celsius
  • Certified Pre-Owned, In Excellent Condition
  • Offered by: Optical Innovations, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE $500.00
  • TEC Drive Current: ±4 A
  • TEC Voltage: ±6 V
  • Maximum Output Power: 24 W
  • Current Noise and Ripple: <1 mA RMS
  • Temperature Setpoint Accuracy: ±0.2°C
  • Temperature Sensor: 2-Wire NTC, 2-Wire RTD, LM335/AD590
  • Refer to Datasheet for Additional Specifications

Product Overview:

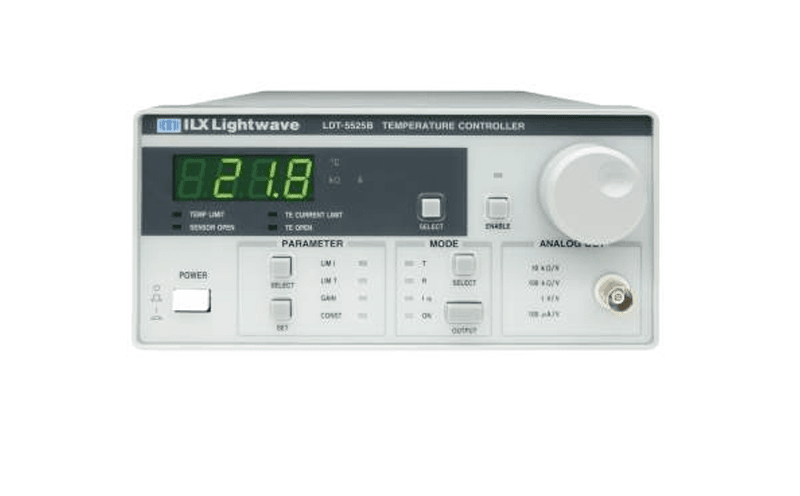

LDT-5525 TEC Controller

The LDT-5525, manufatured by ILX Lightwave, is a precision TEC controller designed specifically for temperature control of laser diodes. Its temperature contol loop is based on a hybrid PI design. This control loop combines precision temperature control with simple set-up and control. The LDT-5525 will work with multiple temperature sensor types, including thermistors and IC sensor types. The wide range of acceptable temperature sensors provides a broad range of temperature control options.

Fast Temperature Settling and High Stability TEC Control

These controllers are designed to ensure quick temp. settling times and maintain high temperature stability over the control range. The typically stability is within +0.04 degress Celsius of the temperature set-point. A simple, intuitive front panel provides allows the user to get this TEC controller up and running in a matter of minutes.

Review of Key Features
- 24 Watts Output Power
- Low noise, bi-polar output
- Wide temperature control range
- Operational with thermistors and IC temperature sensors
