ILX Lightwave LDC-3916371 Laser Diode Controller Module, Pre-Owned

  • Pre-Owned LDC-3916371 Laser Diode Controller Module
  • LDC-3916371 Pre-Owned Laser Diode Controller Module

$525.00
sku / item#: RLS/LDC-3916371
ships: In-Stock (USA) -- Quantity Available: 1

Key Features
  • 500 mA / 9 W Laser Diode Controller Module
  • High-Precision Temperature Controller:
    0.01°C Resolution and ±0.2°C Accuracy
  • Precision Control, Endless Versatility
  • Front Panel Control and GPIB Networkable
  • Certified Pre-Owned, In Excellent Condition
  • Offered by: Optical Innovations, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Shipping & Warranty Information

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LDC-3916371
PRICE $525.00
Laser Driver Specifications
  • Laser Drive Current: 0 - 500 mA
  • Setpoint Resolution: 10 µA
  • Setpoint Accuracy: ±0.1% of FS
  • Compliance Voltage: 6V (adjustable voltage limit)
  • 1 Hr Stability: < 20 ppm
  • Current Limit Range: 0 - 500 mA
  • Current Limit Accuracy: ±0.7 mA
Temperature Controller Specifications
  • Temperature Control Range: -5°C to +50°C
  • Setpoint Resolution (-20°C to 20°C): 0.01°C
  • Maximum Output Current: 1.5 A
  • Maximum Output Power: 9 W
  • Temperature Sensor Type: 2-Wire NTC

Product Overview:

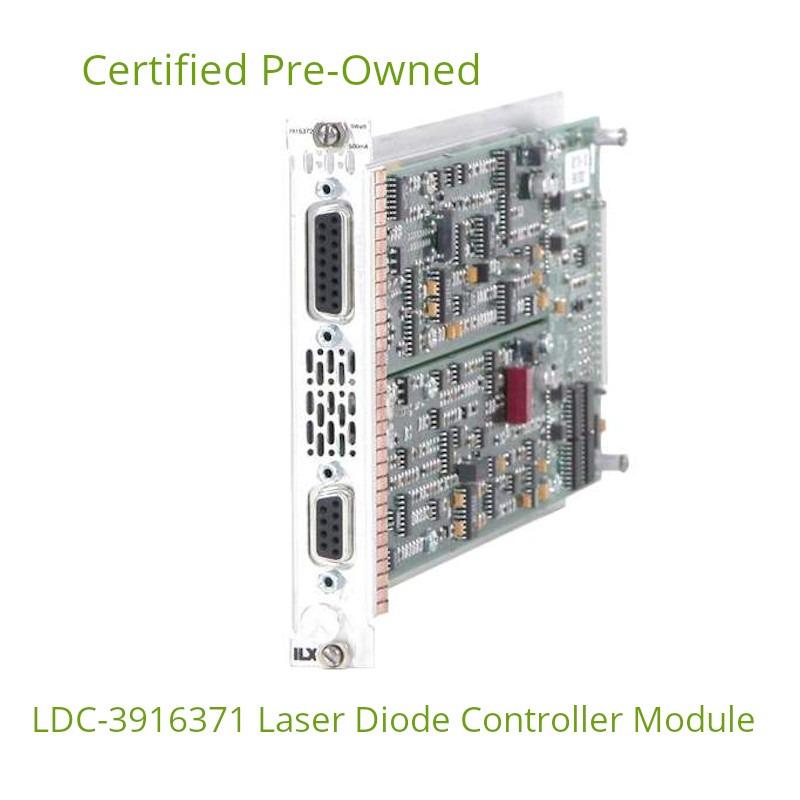

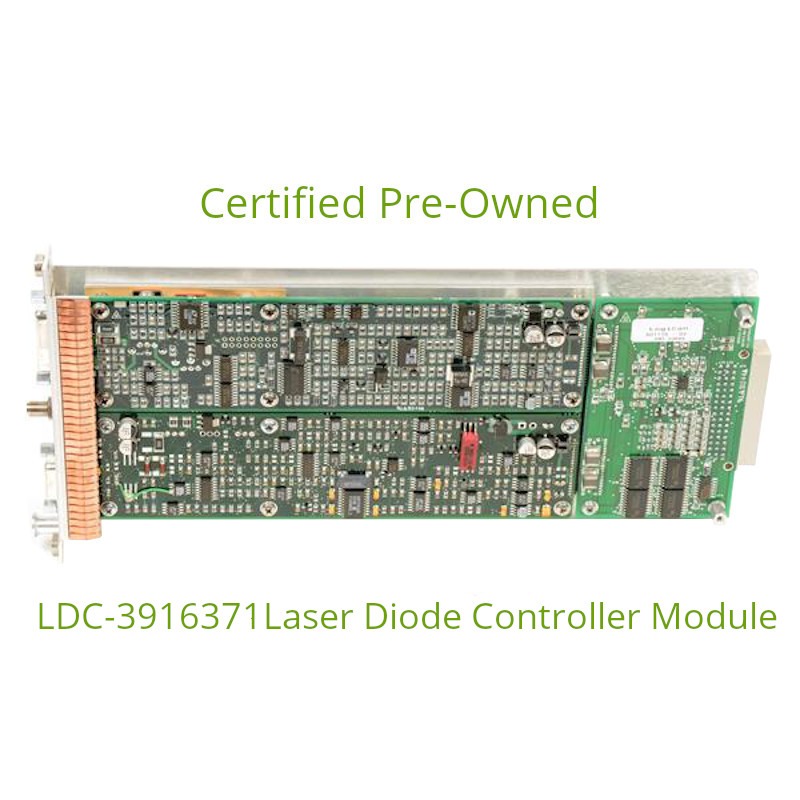

ILX Lightwave LDC-3916371 Laser Diode Controller Module, Pre-Owned

The LDC-3916371 Laser Diode Controller Module employs a high-precision and high-stability temperature controller for increased wavelength stability in your R&D application.

The venerable LDC-3916 mainframe accepts up to 16 of these LDC-3916371 Laser Diode Controller Modules, providing unparalleled versatility and reliability in your R&D lab. These modules fit the LDC-3908 mainframe, the 8-channel variant of the famous mainframe platform.

Operational modes including constant current in low or high bandwidth or constant optical power are selectable from the front panel or via the remote interface. Measurement of the laser diode forward voltage is provided with 4-wire accuracy for protection environments where longer cable runs are common. A single, rear panel modulation port provides direct modulation of each channel’s laser current and supports external modulation bandwidths of up to 1MHz (lower current modules). Individual channel modulation ports are available on request.

These certified pre-owned modules are in perfect working order, and will continue to provide reliable service.
