60A CW / 120A QCW Laser Diode Driver
- Compliance Voltage 40V
- Rack-Mounted
- Single-Phase 220V Power Input

  • Ultra High Power Pulsed Laser Diode Driver
  • Ultra High Power Laser Diode Controller
  • Multiple Pulsed CW Laser Diode Driver System

Request Quote
sku / item#: RLS/SF550-60/80
ships: *** This product is currently unavailable **

Key Features
  • CW Output Current up to 60 Amps
  • Pulsed Output Current up to 120 Amps
  • Laser Diode Voltage: up to 40 VDC
  • Variable Pulse Width: 50 µs to 1000 µs
  • Pulse Rise time <60 µs
  • Trigger In / Trigger Out
  • LCD Display, Front Panel or PC Control
  • Three Phase AC Power Input
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/SF550-60/80
PRICE Request Price
Pulse (QCW) mode
  • Output Current: 1 - 120 A
  • Output Voltage: 0 - 40 V
  • Pulse Rate: 1 - 1000 Hz
  • Pulse Duration: 50 μs - 1000 μs
  • Maximum Output of Current and Voltage Must be Below 4.8kW Average Power
CW mode
  • Output current: 1 - 60 A
  • Output voltage 0 - 40 V
General characteristics
  • Cooling: Air Cooled
  • Power Input: Three Phase 220/380 VAC, 50Hz

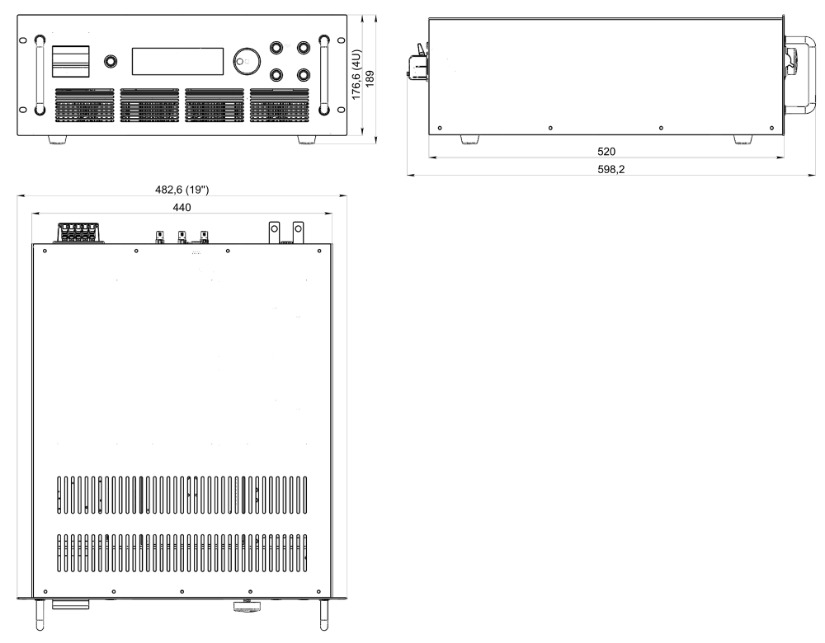

  • Dimensions: 440mm x 177mm x 520mm, 4U High
  • Weight: 25kg
  • Control Interface: RS232
Additional information
  • Values Are Limited by Average Power:
    F * V * I * τ ≤ P (pulse mode)
    V * I ≤ P (CW mode)
  • With a Length of Laser Diode Power Wire is Not More Than 2m

Product Overview:

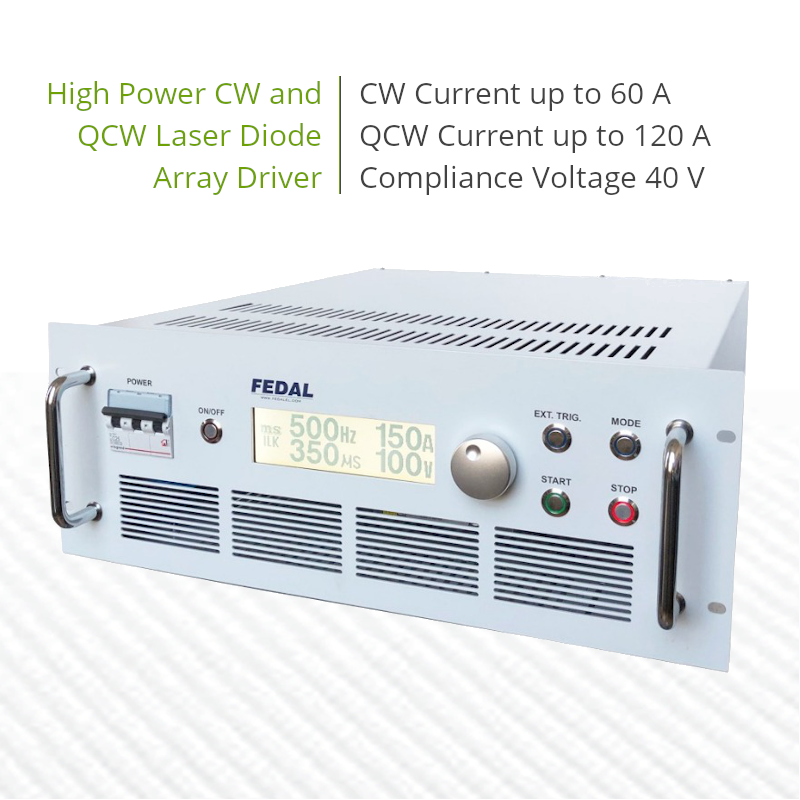

High Current CW/QCW Laser Diode Driver Overview

This high power CW / QCW laser diode driver is designed to drive high current laser stacks and arrays. Designed and optimized for use as part of laboratory, educational, experimental, and industrial applications, the driver has current limit, duty cycle limit, and safety interlocks to help protect the laser diodes and the user.

The rack-mounted controller includes an RS232 interface and PC-based software for control. The front-panel provides easy control of the driver, with a large LCD display and adjustment knob .

Versatile Options Increase Driver Functionality

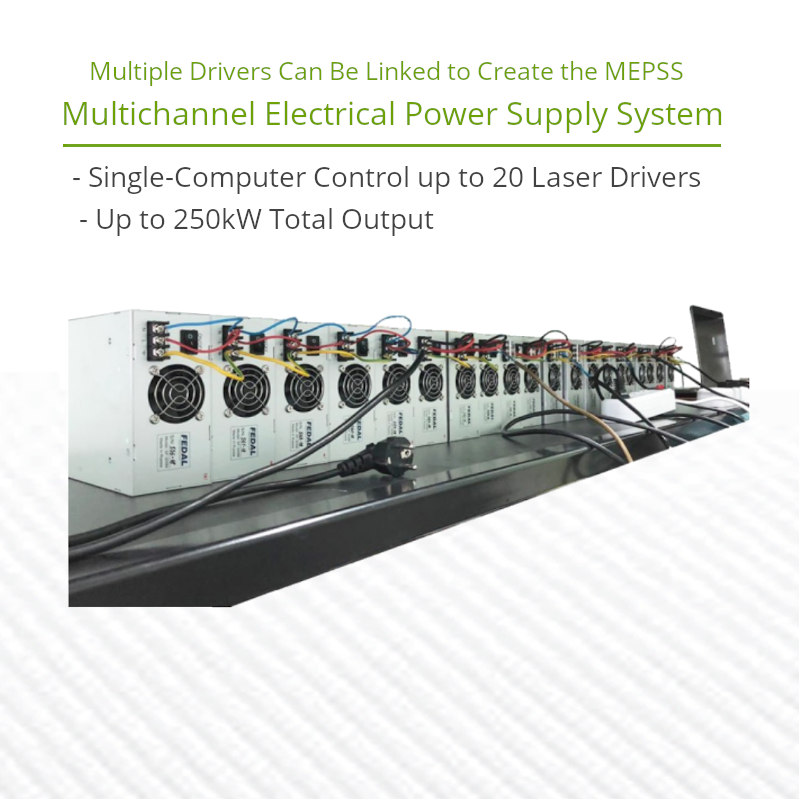

Multiple high power CW/QCW laser diode drivers can be used to build the Multichannel Electrical Power Supply System (MEPSS). The MEPSS can operate up to 20 laser diode drivers, and is designed for things like inertial confinement fusion, laser-matter interactions, laser diode array testing, and other cases where multiple high power lasers are controlled simultaneously.

The laser diode driver can be factory-equipped with a high power temperature controller for laser temperature stabilization; inquire for details and options.

Additionally, the flexible internal architecture allows for factory customization to suit customer requirements for a specific load. Optionally, the driver can be equipped to operate in a temperature range of –40°C / +50°C.
