High Performance Cooled Mounting Socket for Thermal Control of 9mm TO-Can Packaged Laser Diodes

Request Quote
sku / item#: ColdPack
ships: Request a Quote for Current Ship Date

Key Features
  • This product is currently only offered for use with Eagleyard Photonics TO-Can Packaged Laser Diodes

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL ColdPack
PRICE Request Price
key specifications
  • Operation Temperature at Laser Diode Case: 0ºC – 50ºC
  • TEC Current: 1.2 A
  • TEC Voltage: 17.2 V

Product Overview:

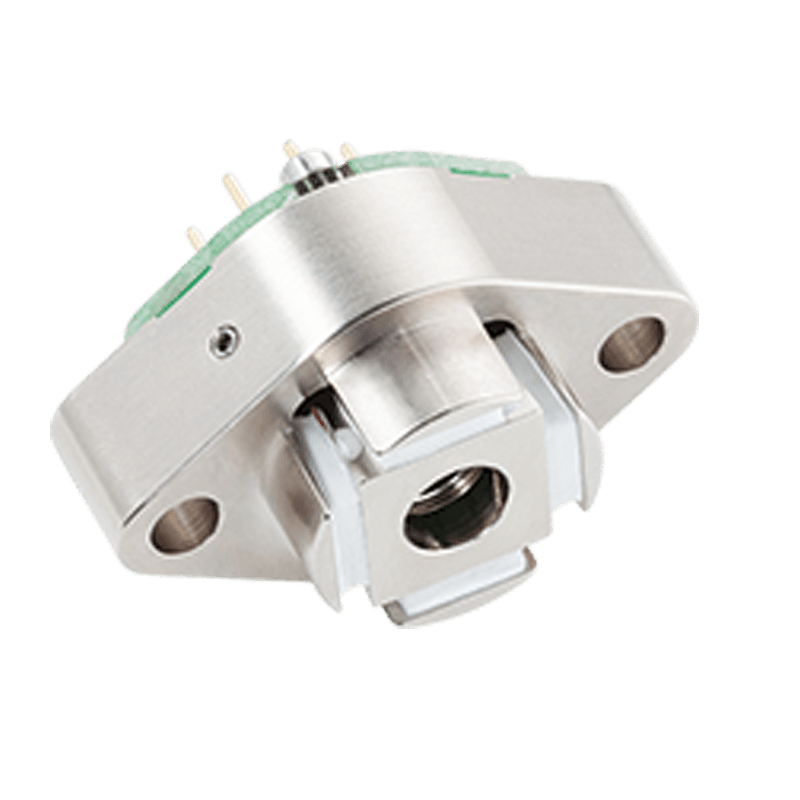

The "ColdPack" laser diode mounting socket from Eagleyard Photonics is a high performance thermal control and mounting solution for 9mm and 5.6mm packaged lasers. These mounting sockets have an integrated thermoelectric cooler and thermistor. The integrated TE cooler enables very high thermal stability and optimal wavelength tuning. The embedded TE cooler requires a separate / external TEC controller (not included). The standard product is available for 9mm TO-Can packages. Their is an option for 5.6mm TO-can package styles. Please refer to the data sheet for more details.
