High Voltage, High Current CW and QCW Mode Laser Diode Driver:
- Up to 2.4 kW Output Power
- Current Range 20A CW and 40A QCW
- Compliance Voltage up to 120 Volts

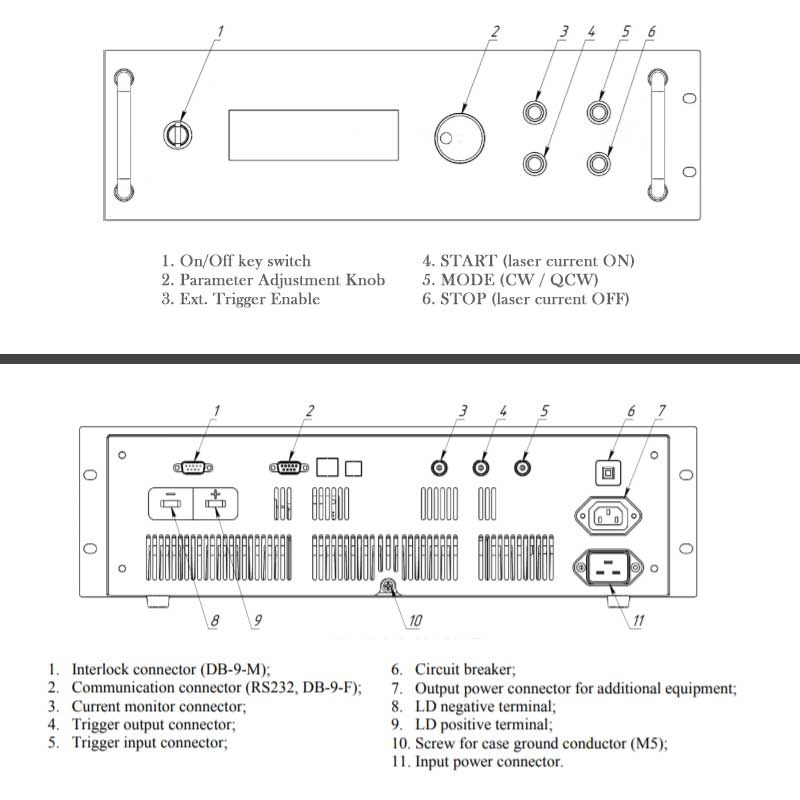

  • Laser Diode Driver Front Panel View SF30-20
  • Laser Diode Driver Key Features Bullets SF30-20

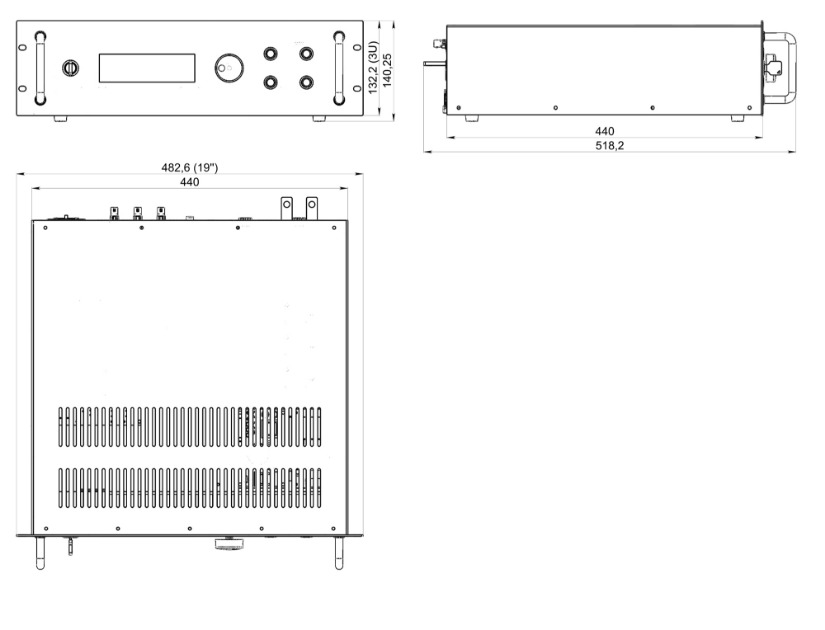

  • SF530-20/120 laser diode driver dimensions

Request Quote
sku / item#: SF530-20/120 LASER-DIODE-DRIVER
ships: *** This product is currently unavailable **

Key Features
  • Designed for High Power Laser Diode Stacks, Arrays and Multi-Single Chip Emitters
  • Supports Laser Compliance Voltage up to 120 Volts; Current Range 20 Amps in СW Mode and 40 Amps in QCW Mode
  • QCW Mode User Adjustable Pulse Width from 50 µsec to 1 msec
  • Total Average Output Power up to 2.4 kW (max)
  • Multiple Integrated Laser Diode Protection Features
  • Requires Single Phase 220 VAC Power Input
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL SF530-20/120 LASER-DIODE-DRIVER
PRICE Request Price
Pulse (Quasi-CW) mode
  • Output current range: 0.5 - 40 Amps
  • Compliance voltage range: 0 - 120 Volts
  • User adjustable pulse repetition rate: 1 - 500 Hz
  • User adjustable pulse duration: 50 μs - 1000 μs
CW mode
  • Output current: 0.5 - 20 Amps
  • Compliance voltage range: 0 - 120 Volts
General characteristics
  • Air cooled chassis
  • AC power input: Single Phase 220 VAC, 50/60 Hz
  • Enclosure Dimensions: 440mm x 132mm x 440 mm, 3U high
  • Weight: 20 kg
Remote Interface
  • Remote control interface: RS232
Total Output Power is Limited to Max Avg Power 2.4 kW:
(pulse mode): F * V * I * τ ≤ P
(CW mode): V * I ≤ P
  • Pulse rate (F) Hz
  • Output current (I) amperes
  • Output voltage (V) volts
  • Pulse duration (τ) μs
  • Power (P) kW

Product Overview:

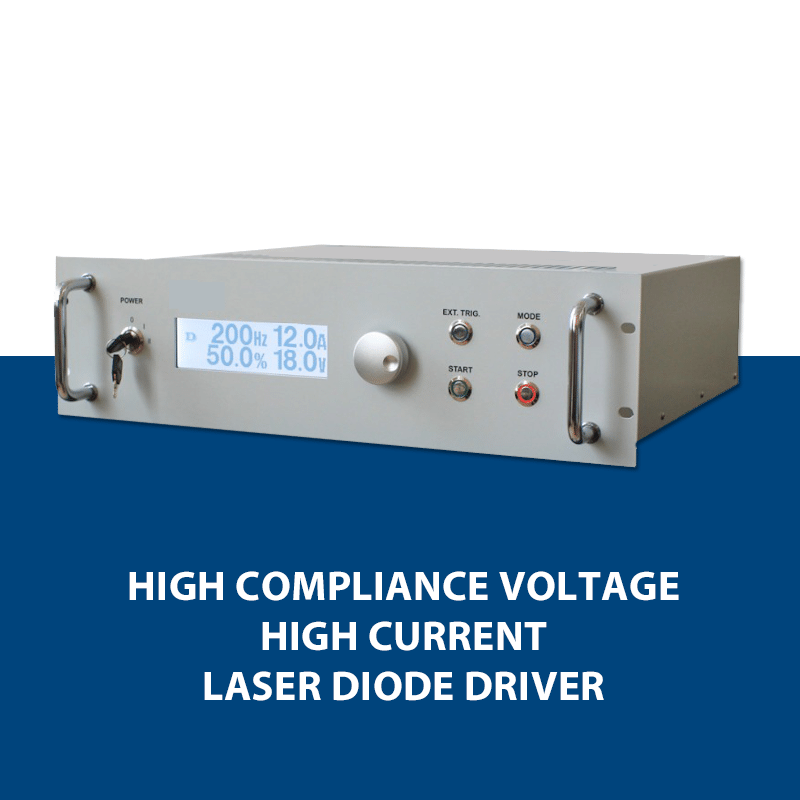

High Voltage Laser Diode Driver Overview

This high voltage CW and QCW mode laser diode driver is designed to drive high power laser stacks, arrays and multi-chip pumps. These current sources have been optimized for use in R&D laboratory applications as well as industrial applications. These drivers offer multiple safety and protection features. They have a user-set current limit, duty cycle limit and safety interlocks to help protect the laser diode and the user. The benchtop and rack-mounted capable controller chassis includes an RS232 interface. There is also free software to enable quick set-up and operation in a remote control environment. The front panel provides easy control of the driver with a large LCD display, adjustment knob and buttons for laser current start and stop. They key lock on the front panel allows the user to completely disable the unit as needed.

Driver Functionality

Multiple OEM versions of this driver can be used to build the Multichannel Electrical Power Supply System (MEPSS). The MEPSS can power up to 20 laser diodes and is designed for applications such as inertial confinement fusion, laser-matter interactions and laser diode array burn-in and testing. This unit can also be factory-equipped with a high power temperature controller for laser temperature stabilization; inquire for details and options. Additionally, the flexible internal architecture allows for factory customization to suit customer requirements for a specific load.
