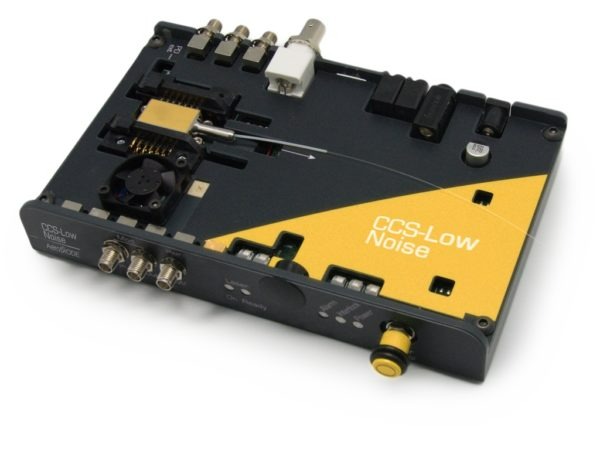

ALL-IN-ONE / Ultra-Low Noise Laser Diode Driver, TEC Controller & Butterfly Mount Module (TYPE-1)

  • Laser Diode Controller and Mount Module, Ultra-Low Noise

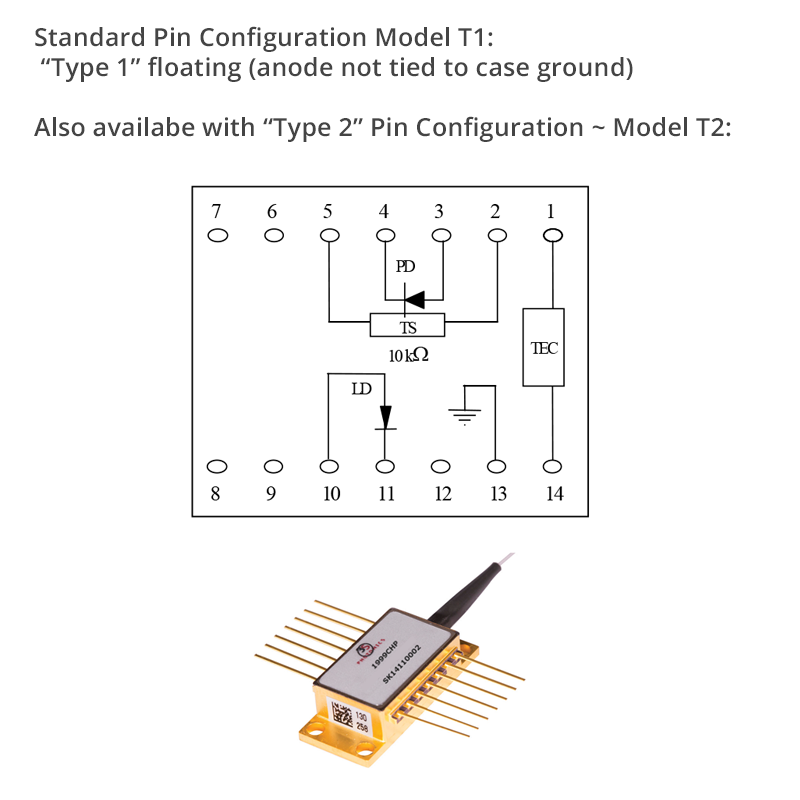

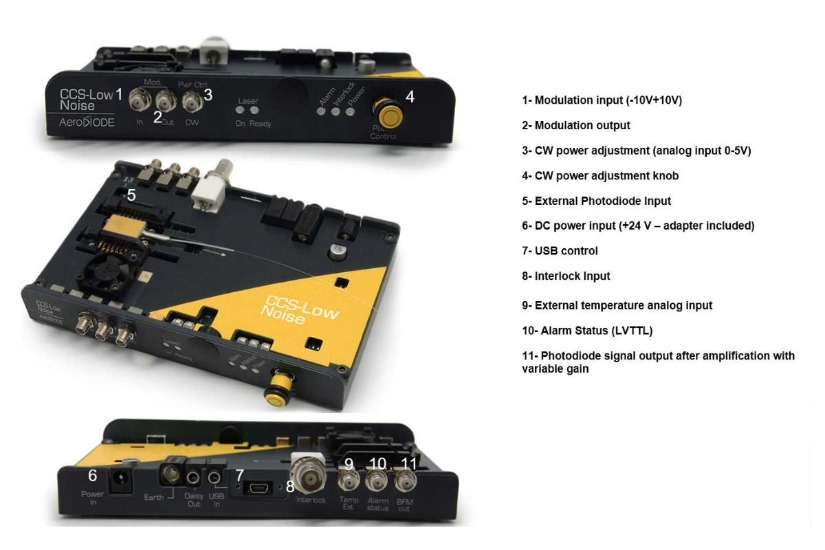

  • Butterfly Laser Controller Pinout

$5695.00
sku / item#: CCS-LN / Laser Diode Driver & Mount Unit
ships: Request a Quote for Current Ship Date

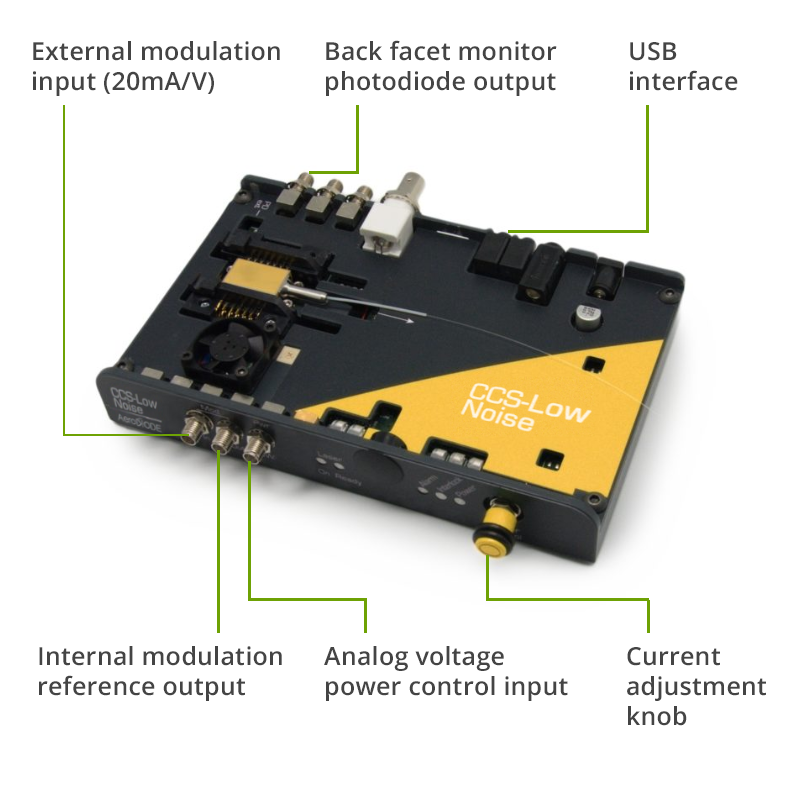

Key Features
  • Ultra-Low Relative Intensity Noise Laser Diode Driver for Narrow Laser Spectral Linewidth Applications
  • Integrated TEC Controller + Butterfly Mount
  • Milli-Kelvin Temperature Control Stability
  • USB Interface, Includes Programming Tools Software Suite, DLL Library and GUI
  • User Adjustable Laser Output Power by On-Board Control Knob, Analog Voltage Signal, or USB
  • Offered by AeroDIODE, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL CCS-LN / Laser Diode Driver & Mount Unit
PRICE $5695.00
Low Noise Laser Diode Driver

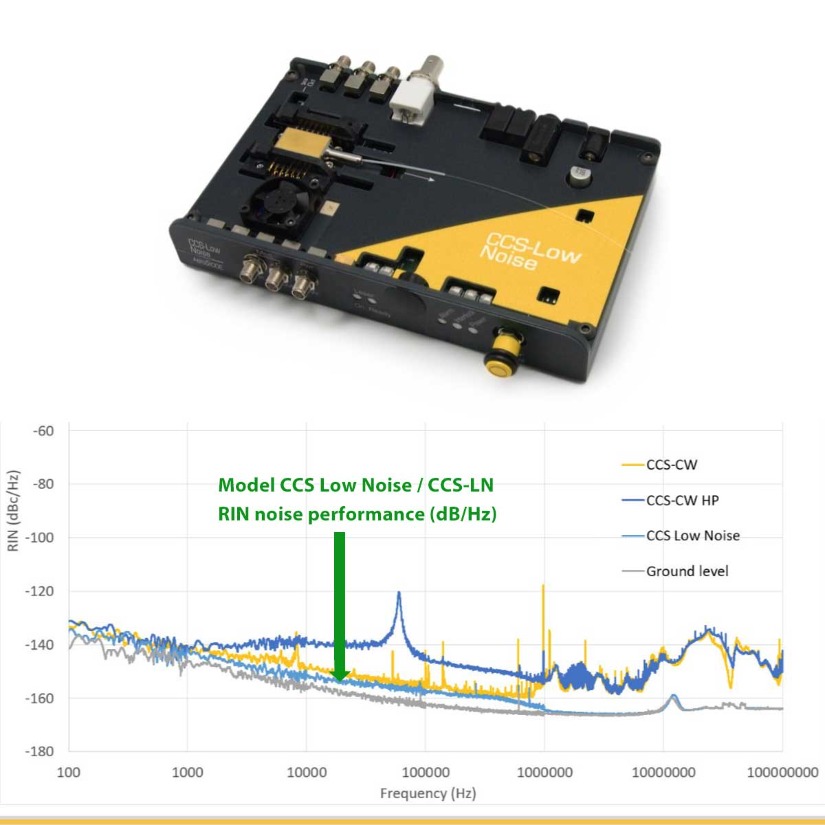

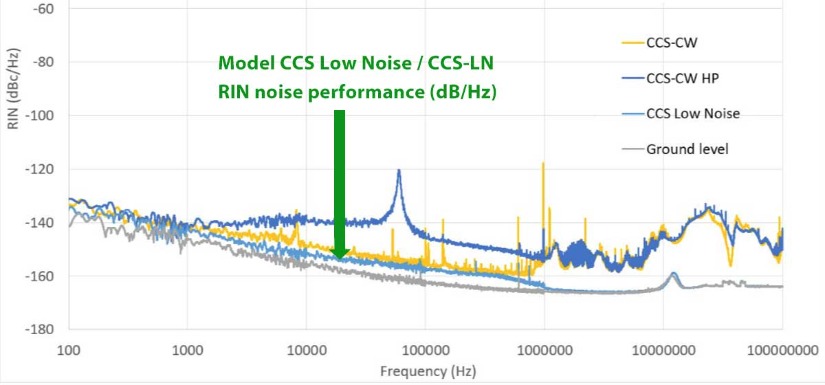

  • CURRENT NOISE: Refer to Data Sheet & Image Carousel to View 1/f Noise Spectrum Plot (RIN)
  • Output Current: 0.00 mA - 1,500.00 mA
  • Current Set-Point Resolution: 0.025 mA
  • Back-Facet Monitor: Yes (Variable Gain)
  • External Photodiode Measurement: Yes (Variable Gain)
  • Modulation Bandwidth: 100 Hz
  • Internal Modulation Generator: Square, Triangle, Sine
  • External Modulation: 0 - 20 mA/V
  • Output Compliance Voltage Maximum: 5 Volts
TEC Controller & Mounting Socket
  • Zero Insertion Force Mounting Socket with Clamping Arms
  • Low Thermal Resistance Anodized Aluminum Butterfly Mount Plate
  • Pre-Configured Pin Wiring for Type 1 and Type 2 Configurations
  • All Pin Configurations Available (request)
  • TEC Current: ±3 A
  • TEC Voltage: 4.6V
  • Temperature Sensor Compatibility: NTC Thermistors
  • Temperature Control Stability (typ) : 0.001°C
  • TEC Control Loop Type: Bipolar
Laser Diode Protection
  • User Set Current Limit
  • User Set Temperature Limit
  • Safety Interlock
  • Soft-Start Ramp to Current Set-Point
  • Transient and ESD Surge Clamp
  • Closed Short Circuit (when laser OFF)
Modulation, User Interface and Power Input
  • PC Interface: USB with GUI and Control Software
  • Analog Voltage Control Input: 0 to 5 V (DC to Full Output Current)
  • Side Panel Manual Control Adjustment Knob
  • External Modulation Input Bandwidth: DC ~ 100 Hz
  • Modulation Transfer Function: 20 mA/V
Dimensions and Included Parts
  • Dimensions: 170.0 mm (W) 126.8 mm (L) 32.5 mm (H)
  • Weight: < 0.5 kgs
  • Power Supply: +24 VDC Power Supply Included
  • USB Cable: Micro-Connector to Standard PC USB Connector Included
Pin Configurations
  • Standard Pin Configuration: Type-1
  • Also Available: Type-2 and Type-2 Bias-T

Product Overview:

Ultra-Low Noise Laser Diode Driver

These low noise laser diode drivers were designed for applications which require narrow linewidth and high optical stability from the laser diode. They are used extensively in tunable diode laser absorption spectroscopy applications. The laser diode controller and butterfly mount modules are designed for precision control of single frequency, narrow spectral linewidth laser diodes. These low noise laser diode controllers offer very low noise density performance similar to battery powered laser diode drivers. Please refer to frequency domain noise plot in the attached data sheet.

Precision Temperature Control for Maximum Wavelength Stability

These laser diode control units are equipped with a high stability temperature controller to ensure the highest level of power and wavelength stability. The temperature controller delivers up to 14 watts of  TEC power to the laser diodes integrated TE cooler with 1 mK stability.

Comprehensive Laser Diode Protection

The integrated laser diode protection circuits protect your device at all times. The user-set current limit and user-set temperature limit clamp both the bias current and the operating temperature to prevent damage to the laser. Soft-start current ramp to the user defined current set-point protects the laser from the possibility of thermal shock or current surges. The integration of the mounting socket directly with the current source eliminates the need for cables and connectors from the current path, which greatly reduces the likelihood of ESD damage to the laser from plugging and unplugging cables, and prevents external electronic noise affecting the diode drive current signal.

USB Interface and Versatile Controller Software

The controller is equipped with a USB interface, and delivered with easy-to-use GUI software. Several software conrol libraries are provided for custom control software development, including Labview, DLLs, Hexa, and Python.
