Turn-Key Lumentum Model 4900 Laser Diode Control Electronics and Mounting System

  • laser diode controller front panel view

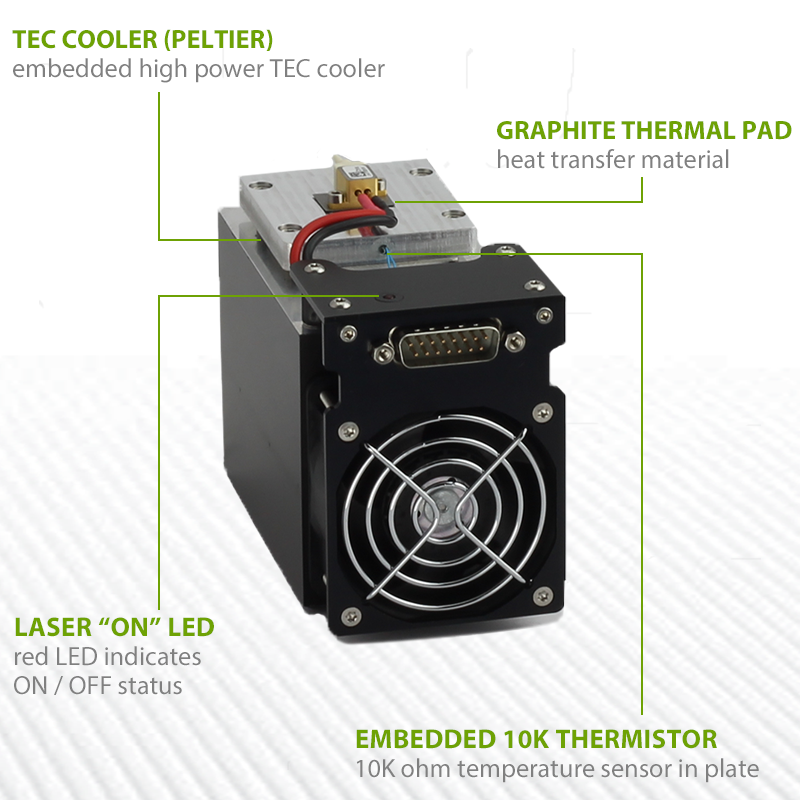

  • Heat Sink for Laser Diodes 50W

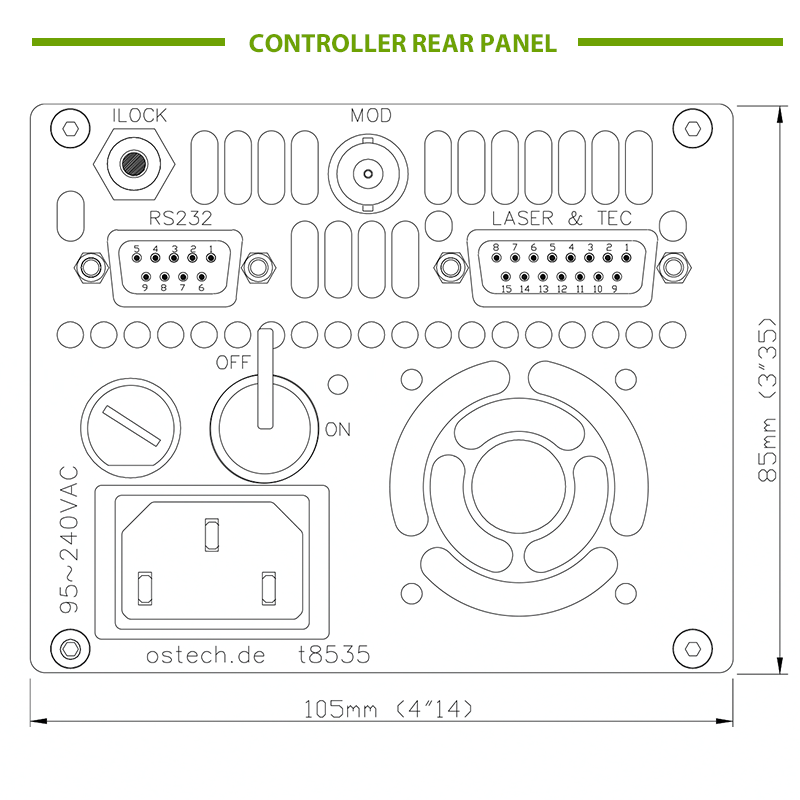

  • Rear Panel Diagram of Laser Diode Controller

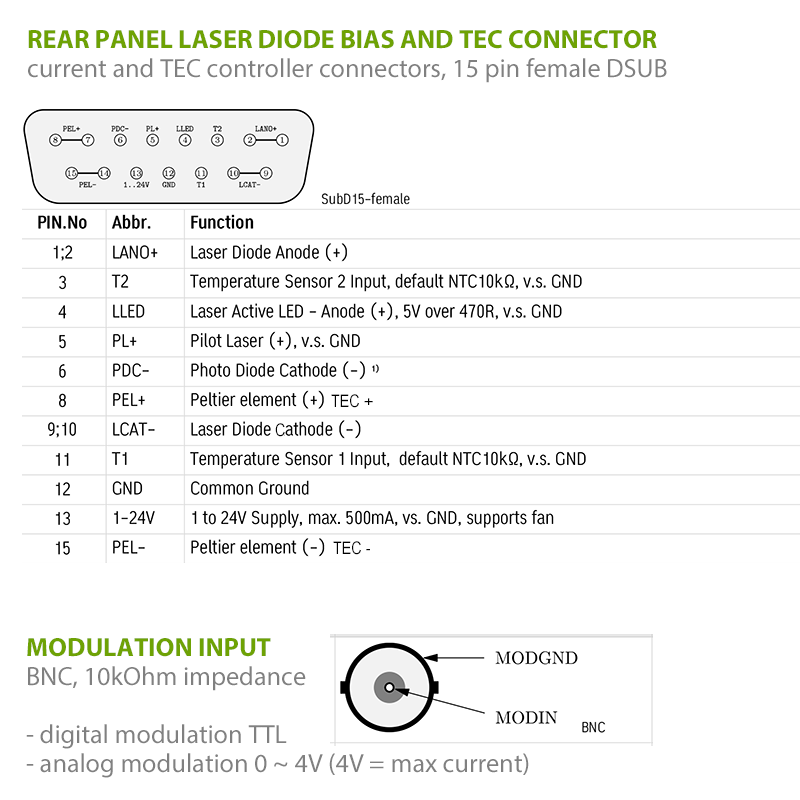

  • laser diode controller rear panel connector view
  • Lumentum 4900 Laser Diode Controller

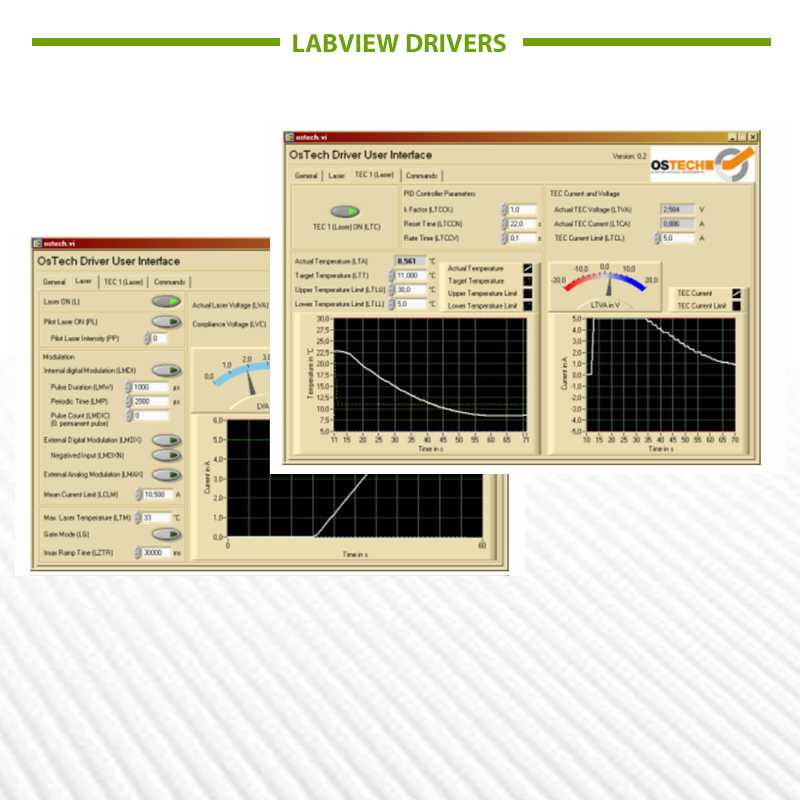

  • laser diode controller labview drivers

sku / item#: RLS/LDC-500X/L4
ships: Request a Quote for Current Ship Date

Key Features
  • Lumentum 4900 Series Uncooled Pump Laser Diode Pre-Configured Control Electronics and Mounting System with Customized Mounting Plate
  • Current & TEC Controller + Cooled Mount + Cables
  • Precision 14 Amp Current Source with 112 Watt TEC / Peltier Temperature Controller
  • RS232 and LabView Drivers Standard
  • USB Interface Optional, Inquire

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE $3545.00
laser diode CURRENT SOURCE
  • Output Current Range: 0.00 - 14.00 Amps
  • Compliance Voltage Range: 0.10 - 6.00 Volts
  • Current Noise & Ripple (rms): < 1% of Full Scale Current
  • Current Setpoint Resolution: 5.0 mA
  • Current Setpoint Accuracy: ± 0.5%
  • Current Stability (4 hours): ≤ 100 ppm (@ full scale)
  • Current Limit Setpoint Accuracy: ± 2%
  • Photodiode Current Measurement Accuracy: ± 0.5%
  • Photodiode Current Measurement Range: 0.00 - 700 μA
  • TEC Output Power Total: 112 Watts
  • TEC Output Current Range (bipolar): ± 8.00 Amps
  • TEC Output Voltage Range (bipolar) : ± 14.00 Volts
  • Temperature Sensor Inputs: 10 kΩ Thermistor, NTC, PT100, PT1000
  • TEC Control Loop Algorithm: Full P.I.D.
  • P.I.D. Variables: User Adjustable to Optimize Temp. Settling Speed
  • TEC Setpoint Resolution: 0.01°C
  • TEC Output Stability: ± 0.01°C (subject to ambient temp. stability)
  • Temperature Range: -25°C to 150°C
  • Factory Set Default Lower Temperature Limit: 5°C
  • Factory Set Default Upper Temperature Limit: 35°C
  • Cooling Method: TEC-Peltier Cooler, Fan for Waste Heat Removal
  • TEC Rating (max): 9 Amps, 17 Volts
  • Heat Sink Thermal Load Maximum: 38 Watts (@25ºC)
  • Fan Rated Input Voltage 24 VDC (supplied by controller)
  • Fan Rated Input Current: 300 mA (supplied by controller)
  • Mounting Plate Material: Anodized Aluminum
  • Mounting Plate Area: 105 mm x 75mm
  • Mounting Plate Hole Footprint: Lumentum L4 (4900 Series)
  • Mounting Plate Integrated Thermistor: 10 kΩ
  • Electrical Connector to Controller: DSUB, 15-pin
  • System Includes 1 x 1.5 meter Current Interface Cable (50A rated)
  • System Includes 1 x 1.5 meter TEC Control Interface Cable (20A rated)
  • Internal Pulse Generator QCW Pulse Width Rise Time: 20 μsec to CW
  • Pulse Time Base Accuracy: ± 1.0%
  • QCW MODE 1: User Adjustable Pulse Width and Repetition Rate using Internal Pulse Generator
  • QCW MODE 2: External Trigger to Internal Pulse Generator: Rising Edge Triggered QCW Pulse with Internally Adjusted Pulse Width
  • MODULATION Input (BNC): Digital (TTL) or Analog
  • Modulation BNC Input Impedance: 10K ohm Modulation Input
  • ---------------------------------------------------------------------------------------------
  • MODULATION Input Voltage Range: 0 ~ 4 Volts (4V = Max Current)
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
  • User Programmable Soft-Start Current Ramp to Setpoint
  • Soft-Start Current Ramp Default Set to 300 Milliseconds
  • Current Limit
  • Temperature Limits (Upper and Lower)
  • Open Circuit Detection
  • Short Circuit when Laser Diode Current Turned OFF
  • ESD and Power Surge Clamp
  • Reverse Voltage Transient Clamp
  • Factory Pre-Set Default Upper Temperature Limit: 35°C
  • AC Line Filter
  • Rear Panel Keylock Switch and Interlock
Controller Computer Interface
  • RS232 Standard
  • USB Optional: $95.00 (Option SVC-USB)
  • LabView Drivers Included
Power Supply, Weight and Dimensions
  • Power Input: Universal 90 ~ 230 VAC, 50/60 Hz
  • System Weight (total): ~ 10 kg
  • Dimensions: 200mm x 105mm x 85mm

Product Overview:

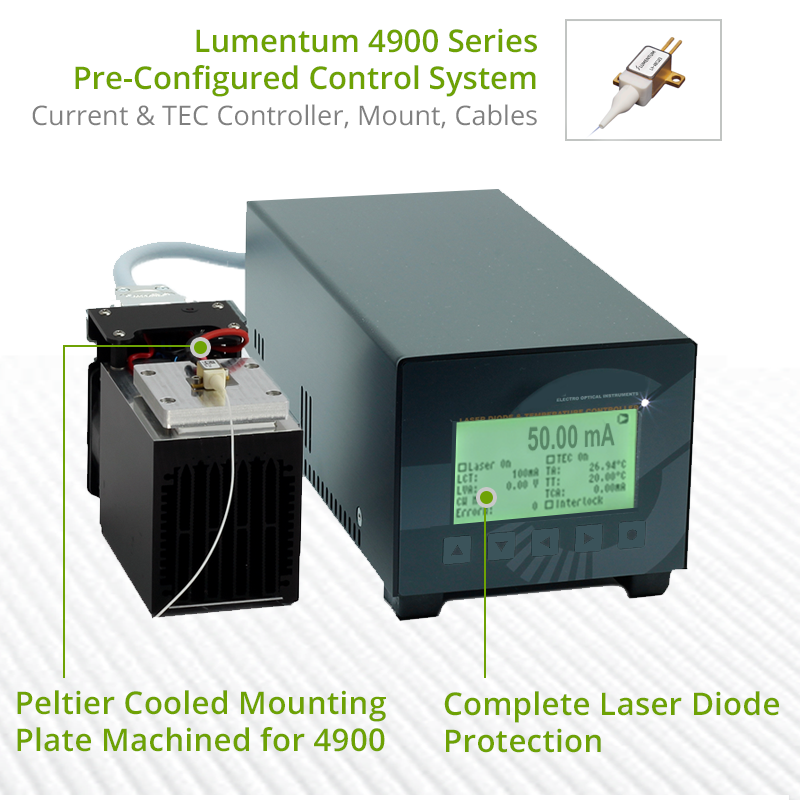

Lumentum Model 4900 Laser Diode Control Electronics and Mounting System

This high power control solution is an all-inclusive system for controlling Lumentum L4 high power single emitter pump laser diodes. This system includes a precision laser diode driver / current source, a full PID temperature controller, an actively cooled heat sink and all required cables. The current source offers industry leading protection for your laser diode. The heat sink and TEC cooled mounting plate offer a high performance pre-configured mounting solution. The LDC-500X/L4 is an affordable, high performance solution for safely powering your laser and running at a stable temperature in laboratory environments.

Pre-Configured Mounting Plate for Lumentum 4900 Series Uncooled Multimode Pump Laser Diodes (L4)

The LDC-500X/L4 comes with a Peltier / TEC cooled mounting plate which is configured for the 4900 series L4 style package. The mounting plate holes are drilled to 4900 series module footprint and all of the interconnect cables are terminated for the 4900 series pin diameters. In addition to single digit micron level surface flatness and finish, the mounting plate comes with a small piece of graphite thermal foil to ensure the highest levels of heat dissipation.

Factory-Configured Laser Diode Protection

High power laser diode protection features include current limit, slow start current ramp to the user specified set point, adjustable temperature limits, and clamping circuitry to protect the laser against power surges. In addition to the current the temperature limit protection settings, the user has the option of setting the soft-start current ramp time from 300 milliseconds up to 10 seconds. The system is set to a 300 millisecond ramp as the default mode. This user adjustable current ramp allows you to customize the "power on" sequence of the source for your specific application.

Flexible Modulation, Internal Function Generator & QCW Pulse Modes

In addition to CW (continuous wave) mode of operation, the 500X system includes flexible modulation capabilities and a slow pulse (QCW) mode. The rear panel of the controller has a BNC input for an analog or TTL digital modulation input with a 10K input impedance. The controller has an internal function generator which can be used to set the modulation signal or the quasi-CW pulses with a time base accuracy of 1.0%. In QCW mode, the user can also set the 20μs to CW pulses from a remote TTL signal source.

Flexible User Controls

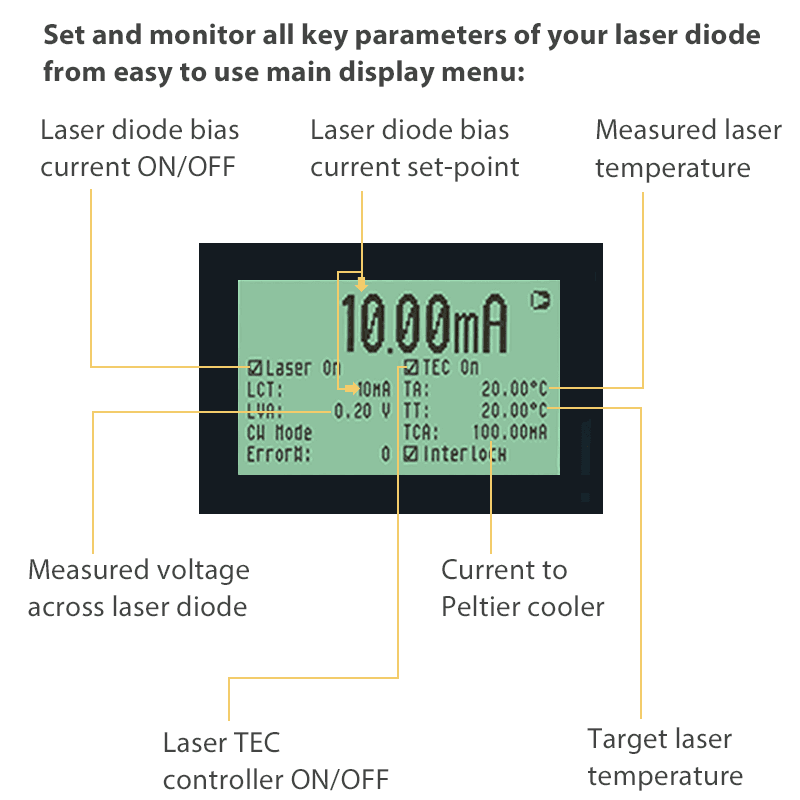

Users have full control of the fiber coupled laser module power through a touch-key front panel menu and LCD display or through the digital interface. You control the high power laser diode amplitude by adjusting the current level or adjusting the laser in automatic power (APC) control mode (Watts of optical power) using an external photodiode. These systems can be controlled remotely by RS232 or USB. They ship with LabView drivers and a terminal control software programming suite. All systems have both digital and analog modulation control inputs.
