17 Watt Laser Temperature Controller

$119.00   Ships: Stock | Model HTC4000

Key Features
  • Compact Size: 1.6 x 2.65 x 0.34 inches
  • ±4.0 A Output
  • Interfaces with Thermistors, IC Sensors, & RTDs
  • Single supply operation +5 V to +12 V
  • +10.8 V compliance with +12 V input
  • Stabilities as low as 0.0009°C
  • Temperature Setpoint, Output Current Limit, Sensor Bias, Proportional Gain, and Integrator Time Constant are User Adjustable
  • Monitor outputs for Temperature Setpoint and Actual Temperature
  • Linear Bipolar Output operates thermoelectrics

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL HTC4000
PRICE $119.00
General SPECIFICATIONS
  • Input Supply Voltage: +5 to +12 VDC
  • Output Current: ±4.0 Amps
  • Operating Temperature: 0 to +50 ˚C
  • Storage Temperature: -40 to +125 ˚C
  • Size (HxWxD): 0.34 x 2.65 x 1.6 inches
  • Weight: <1.5 oz

Product Overview:

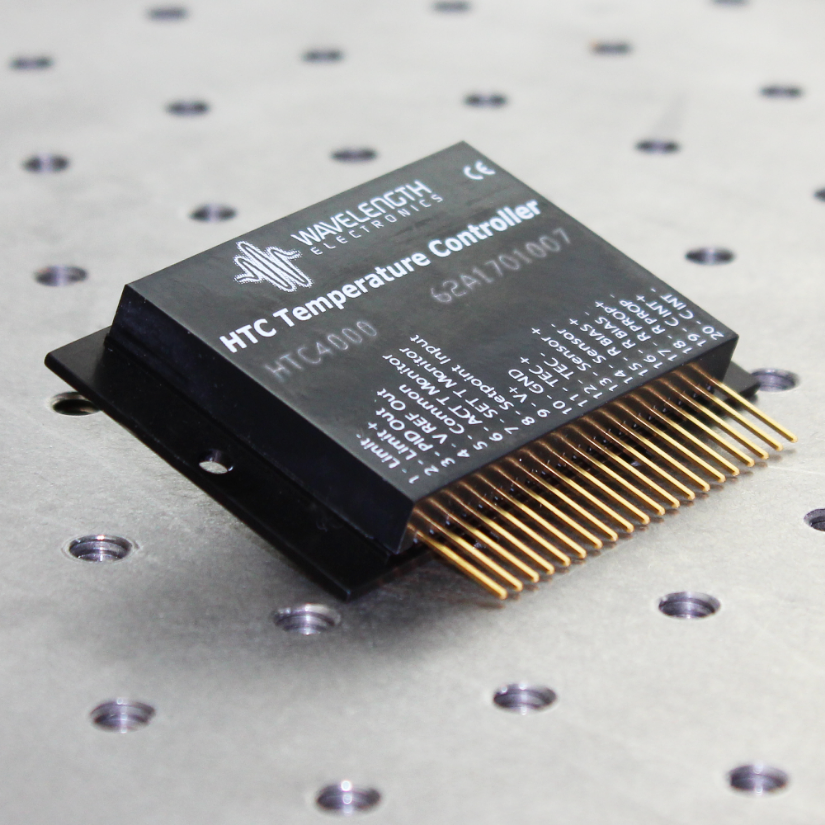

The HTC 4000 is a low-profile and efficient laser diode temperature controller that fits your needs. It has advanced and reliable circuitry that achieves 0.0009°C temperature stability. It has a small, low profile package that is ideal for designs with space constraints. It has a linear, PI control loop that offers maximum stability while the bipolar current source has been designed for higher efficiency.

The HTC Temperature Controllers can easily be configured for any design. Virtually any kind of temperature sensor can be used with the HTC 4000. It has a built in sensor bias current source simplifies use with resistive temperature sensors. The independently adjustable Proportional Gain (P) and Integrator Time Constant (I) can be modified to optimize laser diode temperature overshoot and stability.

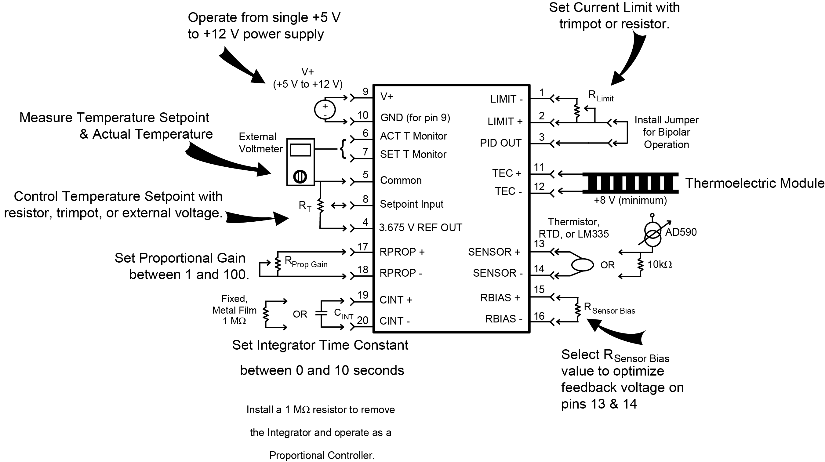

The HTC 4000 has other features that offer added flexibility. A single resistor sets the maximum output current to your load. An onboard reference voltage simplifies potentiometer control of the temperature setpoint.

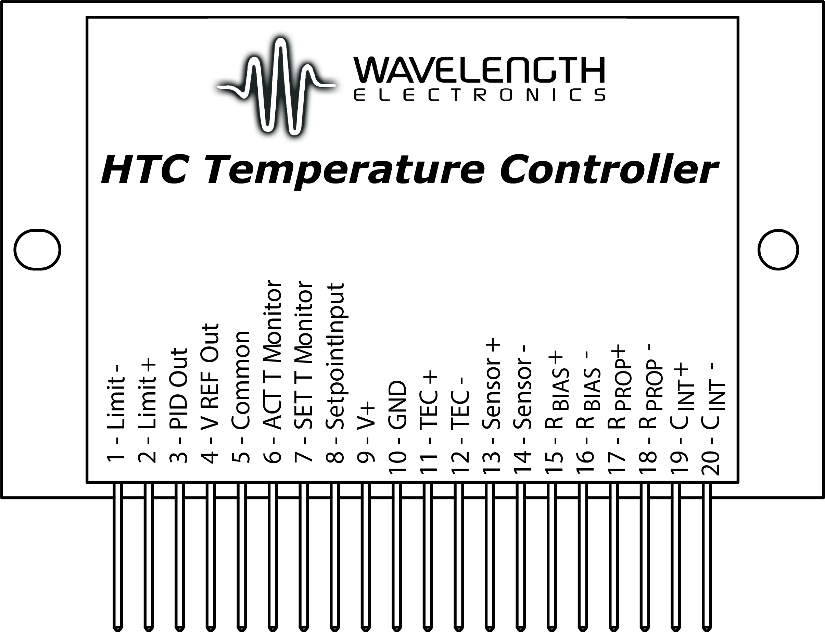

You can also choose to operate remotely with an external setpoint voltage. Two monitor pins provide access to the diode laser temperature setpoint voltage and the actual sensor voltage.

The HTC Series Temperature Controller is a linear controller designed for stable, low noise operation. We recommend using a regulated, linear supply for optimum performance.
