58 Watt Laser Diode TEC Controller

$78.00   Ships: stock | Model WHY5640

Key Features
  • ±2.2 Amps TEC Controller Output Current
  • Low Cost
  • 0.008˚C Stability (typical)
  • Linear PI Control
  • Control Above and Below Ambient
  • Small Package Size: 1.3 x 1.28 x 0.313 inches

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL WHY5640
PRICE $78.00
General SPECIFICATIONS
  • Supply Voltage 1 : +5 to +26 VDC
  • Supply Voltage 2 : +4.5 to +30 VDC
  • Output Current : ±2.2 Amperes

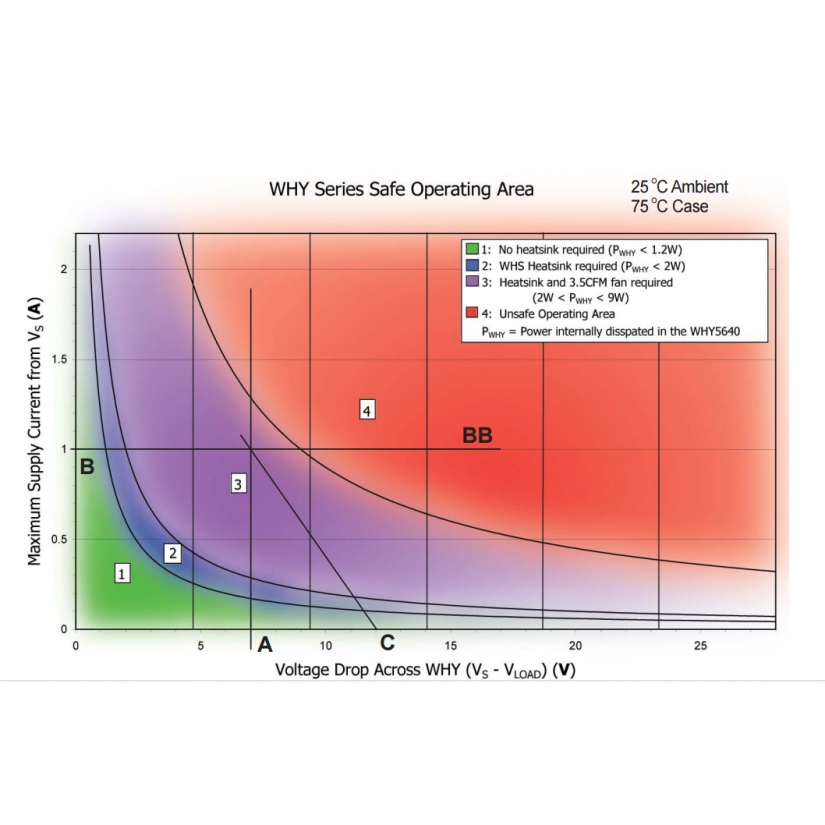

  • Power Dissipation : 9 Watts
  • Operating Temperature : -40 to +85 ˚C
  • Storage Temperature : -65 to +150 ˚C

Product Overview:

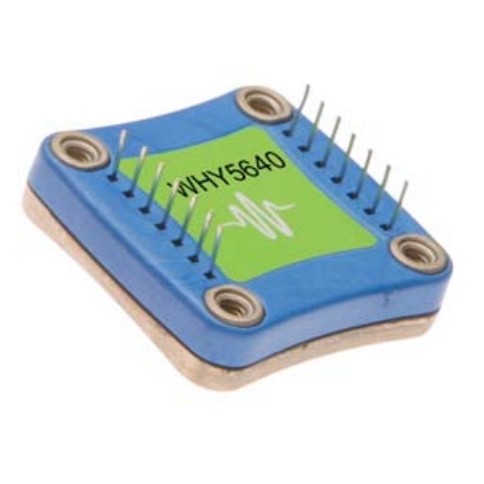

The model WHY5640 is a sub-miniature TEC Controller that can be used in thermoelectric or resistive heater temperature control applications.

It is a general purpose analog PI (Proportional, Integral) control loop and maintains precision temperature regulation using an active resistor bridge circuit that operates directly with thermistors or RTD temperature sensors. Supply up to 2.2 Amps of heat and cool current to your TEC from a single +5 Volt power supply.

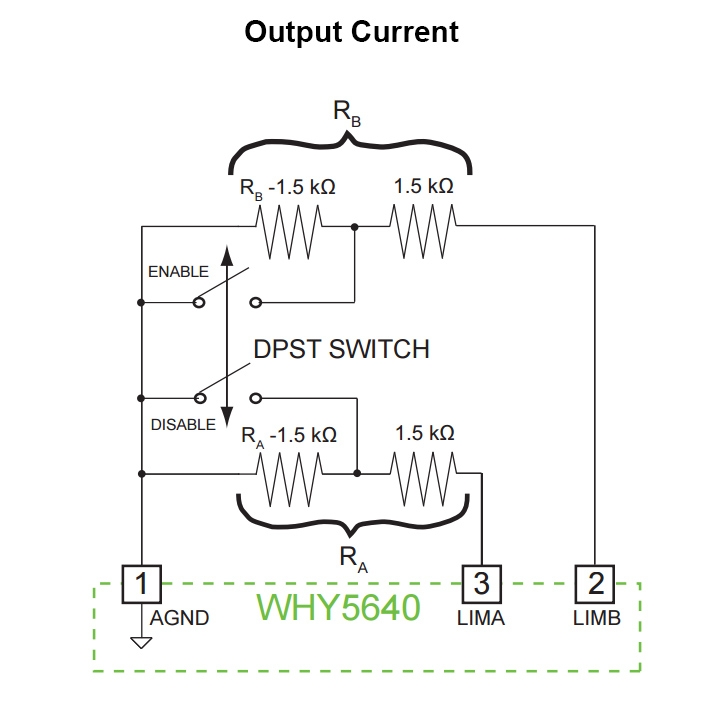

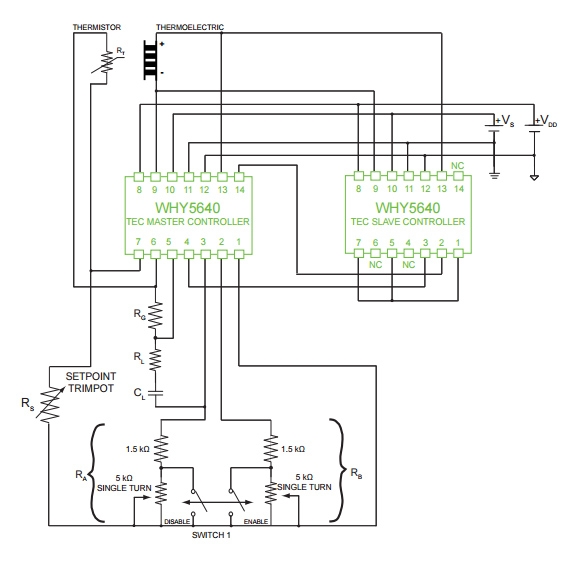

The WHY5640 is specifically designed to operate in a master/slave output current boosting confi guration. You can connect two or more WHY5640 units together and drive higher output currents. A single resistor or trimpot sets the temperature setpoint. Independent heat and cool current limits are set by single resistors. A single resistor sets proportional gain. A resistor / capacitor in series sets the integrator time constant.

The WHY5640 can also operate with unipolar current for Resistive Heaters.

Wavelength Electronics, Inc. (Wavelength) certifies that this product met it’s published specifications at the time of shipment. Wavelength further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology, to the extent allowed by that organization’s calibration facilities, and to the calibration facilities of otherInternational Standards Organization members.
