Advanced Performance High Power Laser Diode Driver Module; Industrial Design for Product Integration
- Current Setpoint Range 2A to 75A
- Compliance Voltage Range 70V (max)

sku / item#: LDD-1137-CW / LASER-DIODE-DRIVER
ships: Request a Quote for Current Ship Date

Key Features
  • Current / Voltage Ranges (CW): 75 Amps, 70 Volts
  • Compact, Highly Advanced Design w/RS485 / USB / Ethernet Interfaces and Control Software Included
  • Designed for Industrial Laser System Integration
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE $1609.00
  • Output Current Range: 2 Amps – 75 Amps
  • Compliance Voltage (max): 70 Volts
  • Current Setpoint Resolution: 1.5 mA
  • Output Current Ripple: ~ 0.2%
  • (CW) Continuous Operation > 60 Amps May Require Additional Cooling
Laser Safety Specifications
  • On-Board Interlock Connector
  • Ultra-Fast Output Switch-Off
  • Thermistor Input for Laser Chip Temperature Sensing
General Specifications
  • Input Voltage: 18 V – 75 VDC
  • Input Voltage Ripple (max): 300 mV pp
  • Operating Temperature Range: 0ºC to 70ºC
  • Operating Humidity: 5% – 95%, non-condensing
  • Dimensions: 118 mm x 171 mm x 48 mm
  • Efficiency: >96%, at 50% duty cycle
  • Cooling: Conductively Cooled Baseplate

Product Overview:

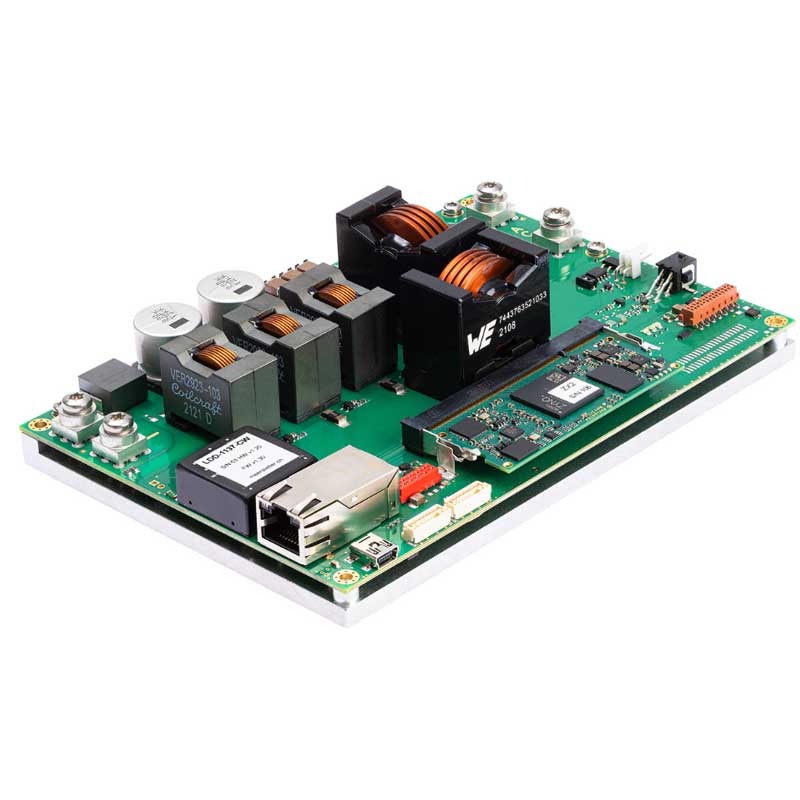

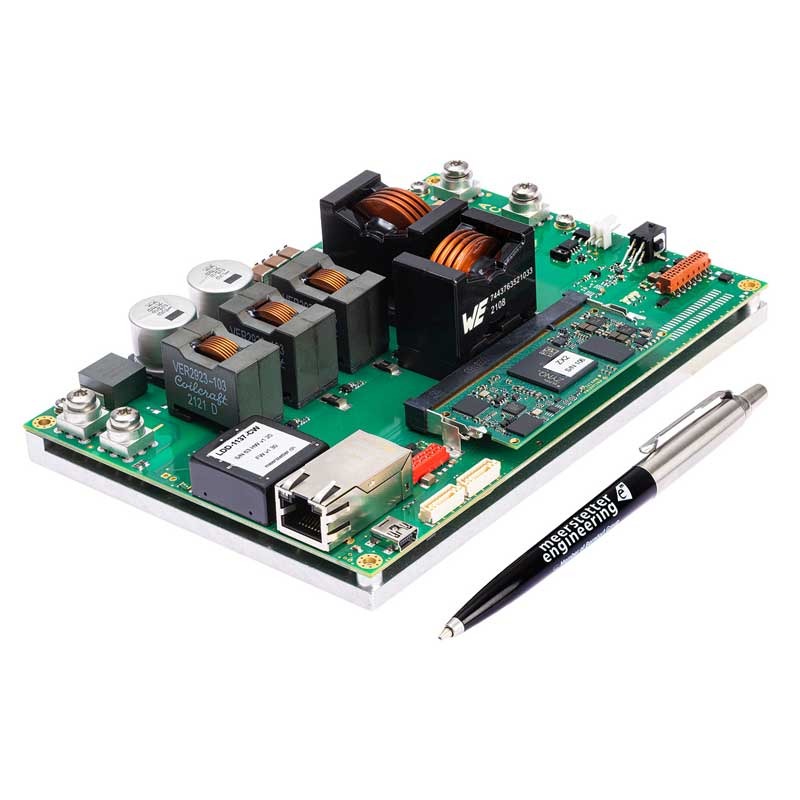

75 Amp OEM CW Laser Diode Driver Overview

The latest generation LDD-1137 is an advanced performance laser diode driver. It is available in two models: a CW mode and a Pulsed mode model. New, high performance eGaN FETs enable lower noise, high resolution control and increased electrical efficiency. A new processing core enables a faster processor connection to the powerful FPGA, more interfaces, more precise timing, and additional functions, while still maintaining a 1.5 mA resolution and keeping a very low output ripple. Equipped with optional light measurement circuitry, the LDD-1137 can also be operated as a Laser Power Controller (LPC).

Low Noise Output and Industry Leading Laser Diode Protection

These modules are innovative current drivers that contain a proprietary current source able to precisely drive laser diodes in pulsed or CW mode. It can be equipped with an optional laser power measurement circuit / photo-diode input. The LDD-1137 also monitors laser diode temperature (NTC thermistor input). The LDD-1137 is fully digitally controlled; its firmware is upgradeable to offer various communication options and to meet specific customer requirements.

USB and RS485 Interfaces with Control Software

The included PC-Software (USB / RS485) facilitates configuration, control, and real-time monitoring of the LDD-1137. All device settings are saved in non-volatile memory and can be backed up and restored. For remote / OEM applications, the LDD-1137 may be fully controlled by a system bus that features RS485 communication, pulse, interlock and 6 reserve lines. The LDD-1137 is part of the LDD family of Meerstetter laser diode drivers, which are designed to operate alongside devices of the TEC family of Peltier controllers.
