5 Amp, 35 Volt Board-Level Laser Diode Driver with Heat Sink / Affordable High Voltage Laser Diode Driver

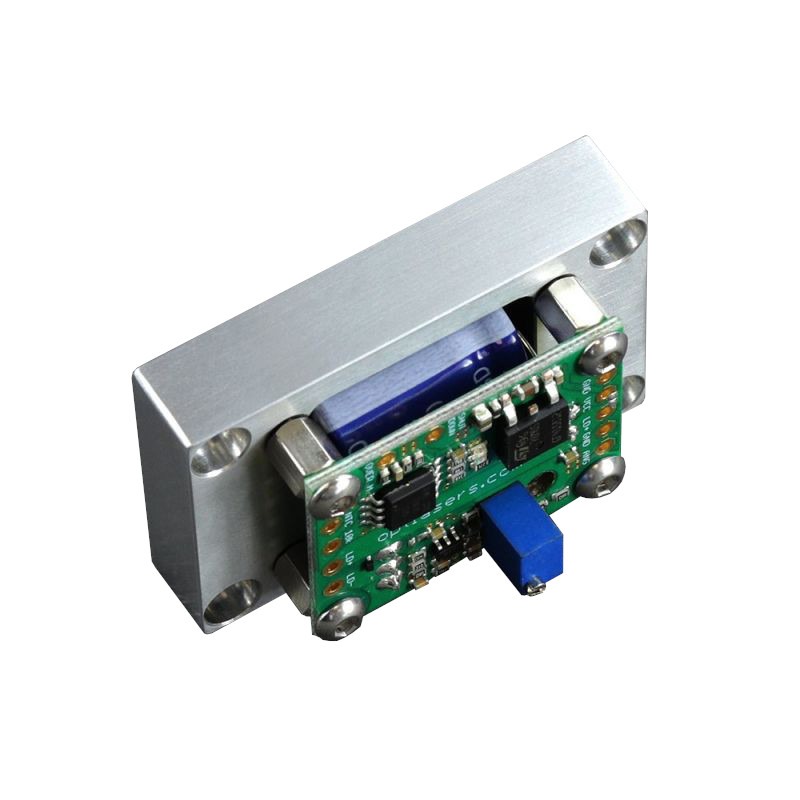

  • 5A-24V OEM Laser Diode Driver Heatsink

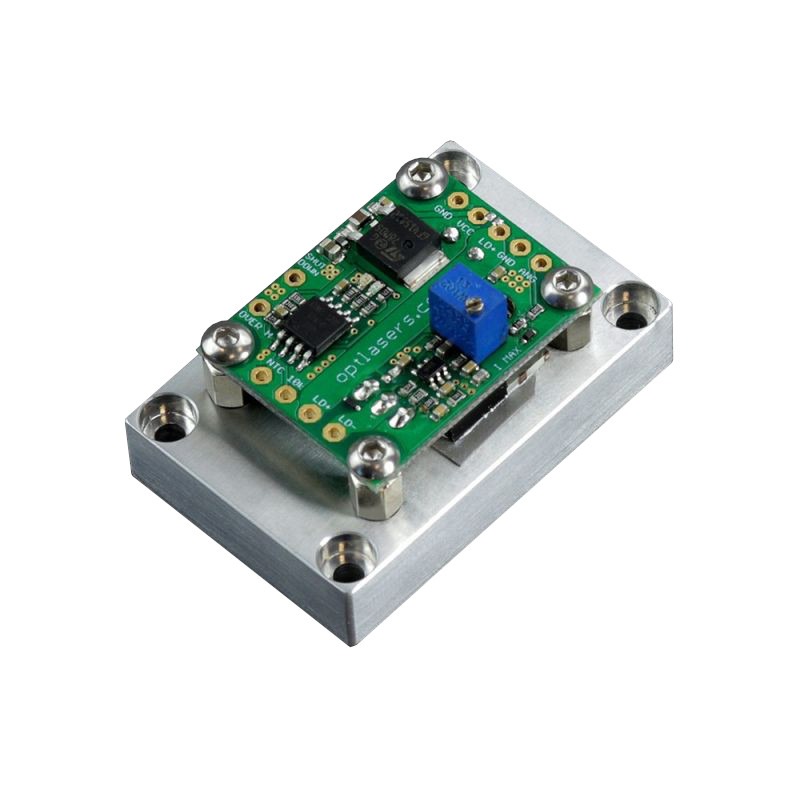

  • 5A-24V OEM Laser Diode Driver Side

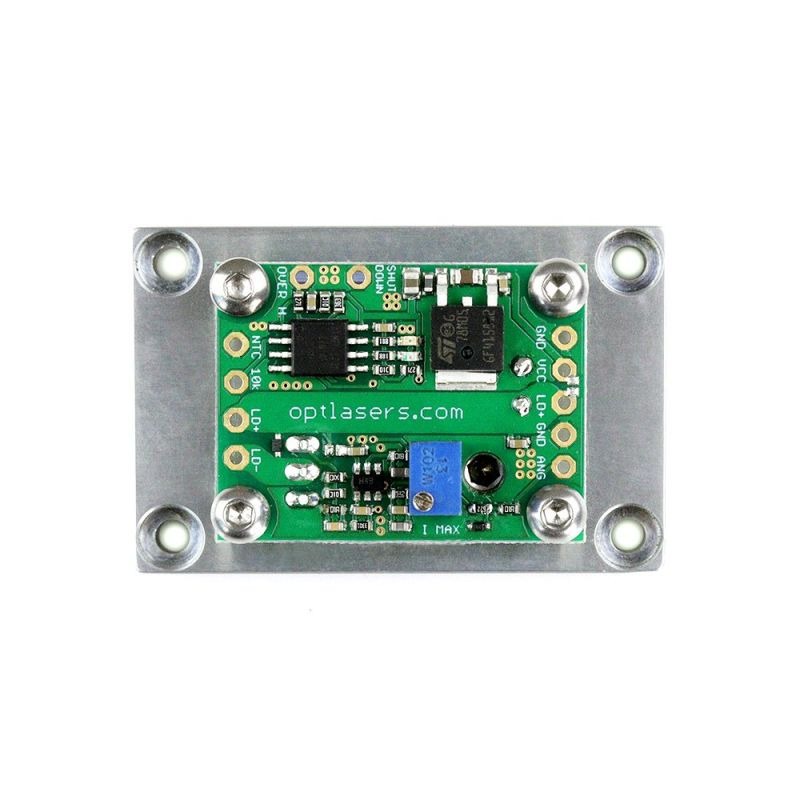

  • 5A-24V OEM Laser Diode Driver Top View

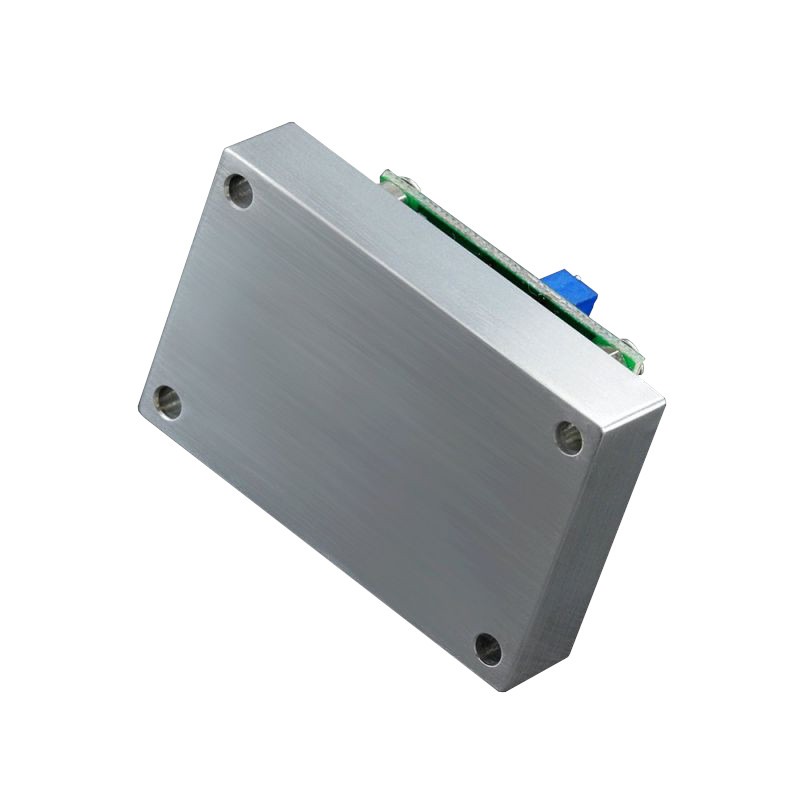

  • 5A-24V OEM Laser Diode Driver Heatsink

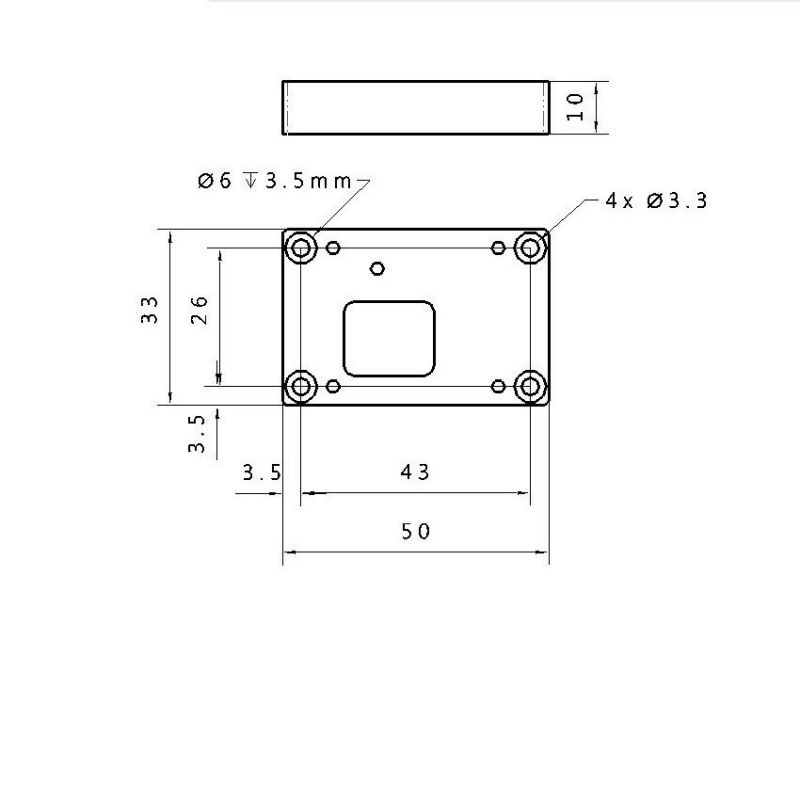

  • 5A-24V OEM Laser Diode Driver Dimensions

$249.00
sku / item#: RLS/LPLDD-5A-35V-TP-H
ships: Request a Quote for Current Ship Date

Key Features
  • Affordable Laser Driver Circuit with Integrated Laser Protection Features
  • Laser Output Current Range up to 5 Amps
  • Integrated Soft-Start Ramp to Set-Point
  • Analog Modulation Input, Up to 100 kHz
  • Minimum Order Quantity: 2 pcs
  • Offered by OptLasers, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LPLDD-5A-35V-TP-H
PRICE $249.00
Laser Driver Specifications
  • Maximum Laser Diode Driver Output: 5 Amps
  • Modulation Voltage: 0 - 5 V
  • Modulation Frequency: 0 - 100 kHz
  • Modulation Type: Analog
  • Current Monitor: 100 mV / 1 A
  • Soft Start Time Period: 1 ms
  • Laser Diode Supply Voltage: 3.3 - 35 V
  • Over 5 V Modulation Input Clamp: 5 V Zener diode
  • Noise and Ripple (RMS): < 12.5 mA
  • Rise and Fall Time: < 1.5µs
Additional Specifications
  • Dimensions (L x W x H): 50 mm x 33 mm x 26.3 mm
  • Mounting Hole Spacing: 43 mm x 26 mm

Product Overview:

5 Amp, 35 Volt Laser Diode Driver, Powerful OEM Solution

This is a single channel 5 A, 3.3 - 35 V laser diode driver with thermal protection. Because of popular demand from customers, this version of the LPLDD-5A-35V driver is equipped with thermal protection which switches off the laser diode circuit if the temperature exceeds 45 °C.

The logic line of the controller is powered with voltage in the range of 7.5 - 35 V DC and laser diode line has to be connected to the power supply in the range of 3.3 V - 35 V DC. This feature allows you to power your laser diode from low voltage, therefore, lower power dissipation produced by the driver.

Laser Diode Protection Features

The circuit responsible for powering a laser diode is protected against reversed polarity. The high current Schottky diode of an extremely low forward voltage protects the laser diode against connecting reversed voltage. In turn, the low forward voltage does not cause excessive heat loss during normal operation.

The analog input is protected by a 5V1 Zener diode on occasion there appears the voltage higher than 5 V. Even with this added protection, the input should not be used with higher voltages.

A microcontroller ensures the proper operation of the entire system by continuously monitoring the thermistor connection. If the thermistor connection is lost, the controller switches off the laser diode current and the TEC current. The microcontroller triggers an on-board LED alarm if the thermistor temperature measures above 40 °C; if the thermistor temperature exceeds 45 °C the laser diode current switches off.

The laser diode controller is fitted with a two-second soft-start designed to protect the laser diode against switch-on effects.
