480W Ultra-Compact OEM Temperature Controller

  • Pulsed 480W Temperature Controller

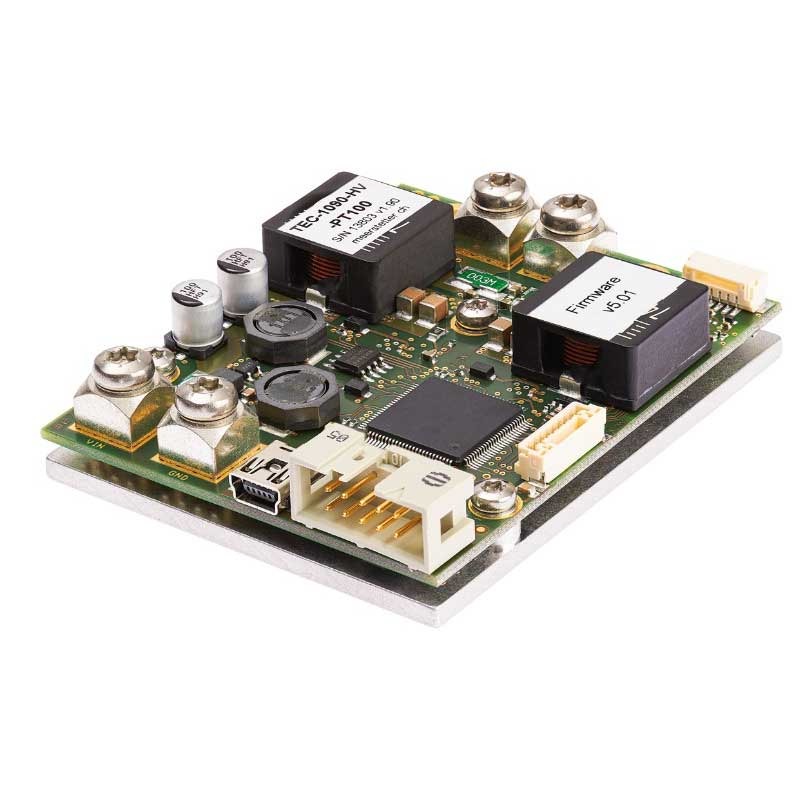

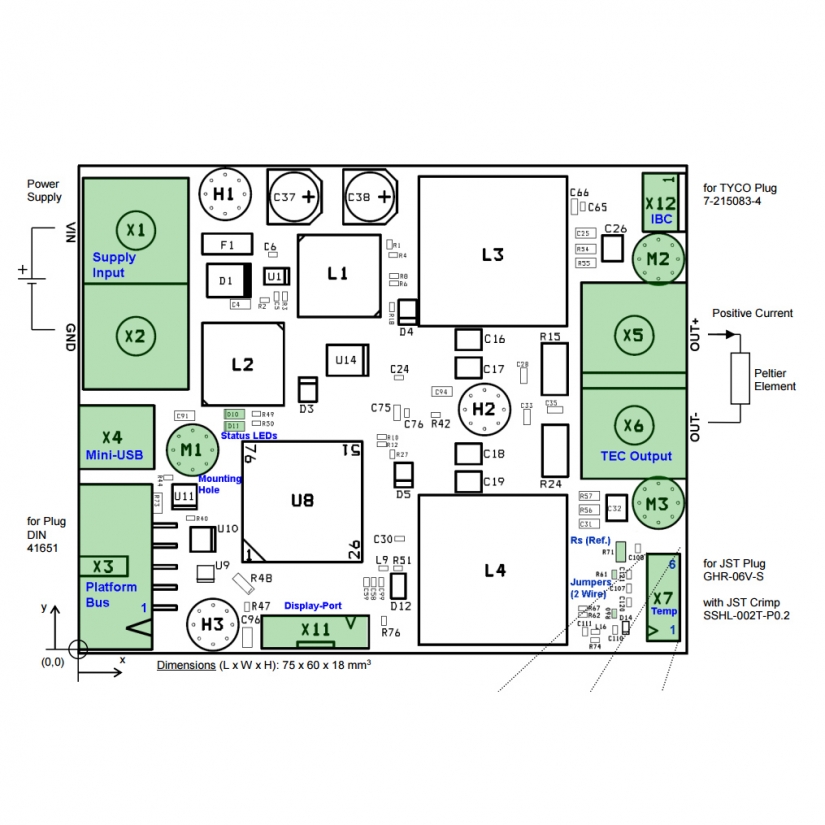

  • Pulse 480W Temperature Controller Diagram

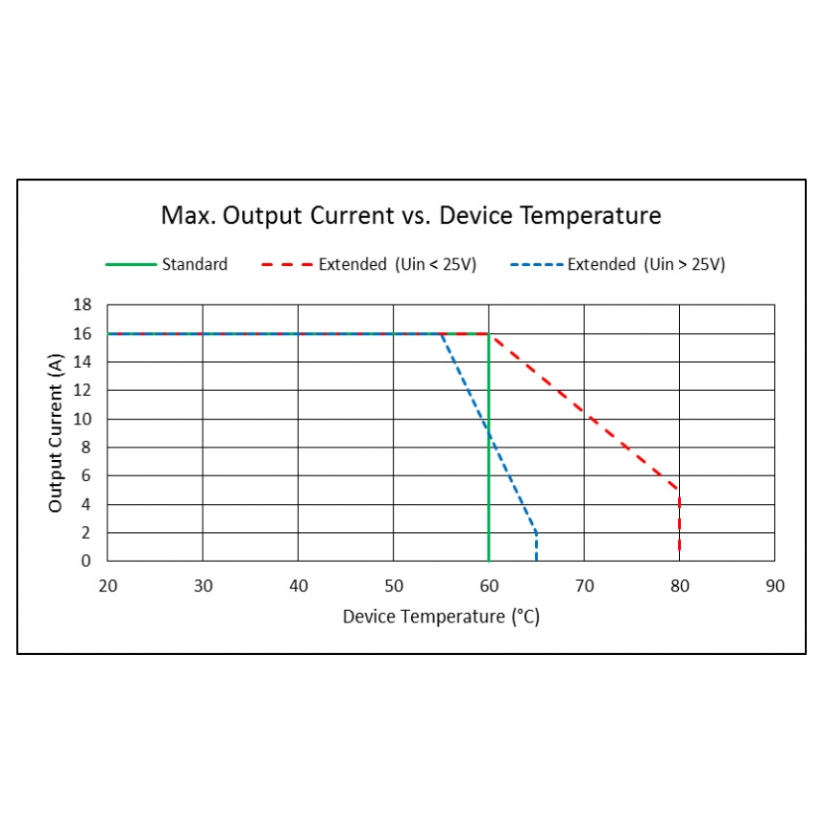

  • Pulsed 480W Temperature Controller Output Current VS. Device Temperature

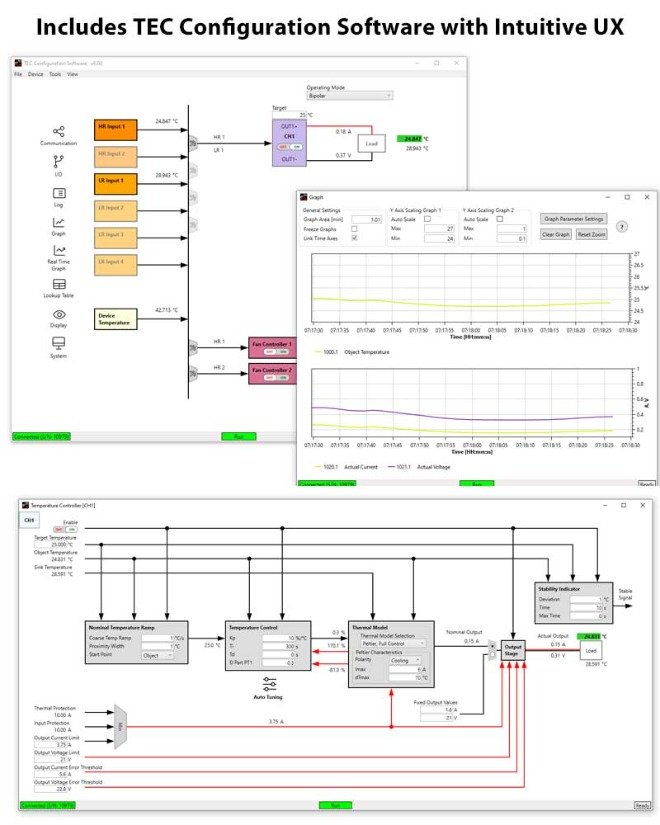

  • Pulse 480W Temperature Controller Software

$528.00   ships: 10 days | item#: RLS/TEC-1090

Key Features
  • Up to 480 Watts Output Power
  • Output Current up to ±16 A
  • Output Voltage: ±30 V
  • Available Sensor Types: Pt100, Pt1000, NTC, Voltage
    Standard / Default Configuration is NTC
  • Performance-Optimized PID Control Loop
  • Configuration / Diagnosis over USB and RS485 PC Software
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Add to Cart or Buy Now

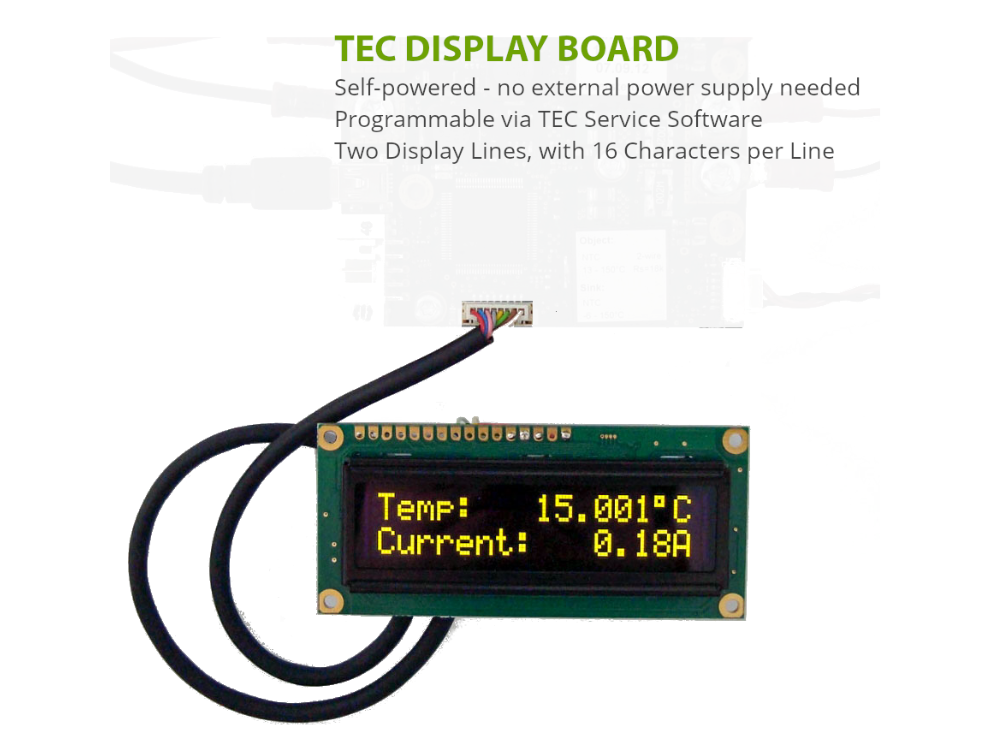

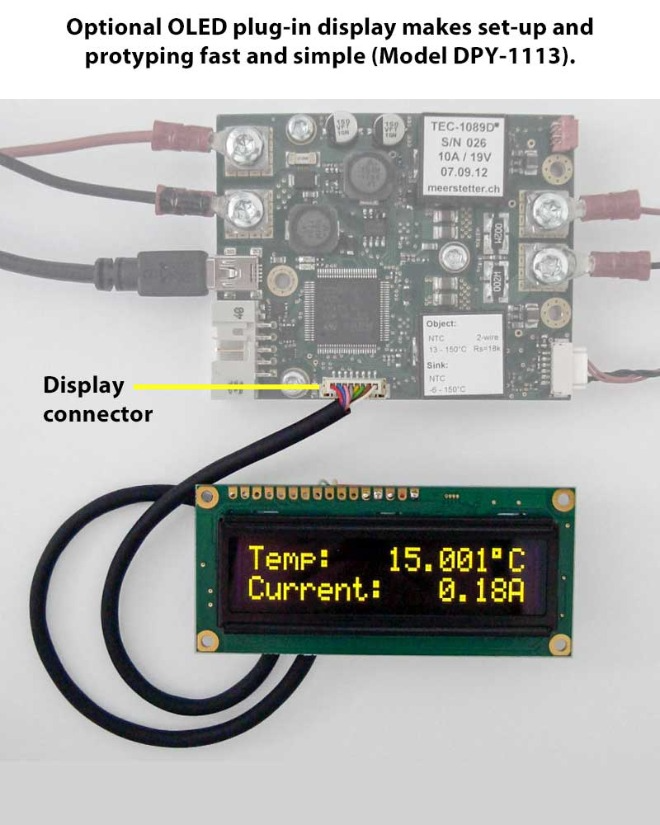

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/TEC-1090
PRICE $528.00
General SPECIFICATIONS
  • Output Current: 0 to ±16 A
  • Output Voltage: 0 to ±30 V
  • Output Noise: <1.5% Ripple
  • Temperature Sensor Input: NTC (ie. 10k Thermistor)
  • Auxiliary Temp. Sensor Input: NTC (ie. 10k Thermistor)
  • Temperature Control & Measurement Frequency: 1 Hz, 10 Hz, 80 Hz
  • Performance-Optimized PID for Thermal Power Control
  • Stand-Alone Mode without Live Control Interface
  • Script-Controlled over Lookup Table Read-Out
  • Temperature Control: PID Settings, Auto Tuning, optionalCool/Heat-Only or Resistor modes
  • 4 x Digital I/O Signals (3.3 V / 5 V)
Electrical Specifications
  • DC Input Voltage: 12 – 36 V Nominal
  • Efficiency: 92 % (@ 50% Load)
Package Specifications
  • Dimensions (L x W x H): 75 mm x 60 mm x 18 mm
  • Remotely Controlled Mode over USB, RS485, RS422, I/O
  • Digital Interface: USB 2.0 1kV isolated (FTDI Chip); 2x RS485 / RS422
APPLICATIONS
  • Cooling and Temperature Stabilization of Laser Diodes
  • High-Power Electronics Cooling
  • Infrared Detectors / Sensors

Product Overview:

480W Ultra-Compact OEM TEC Controller Overview

The TEC-1090-HV is a RoHS compliant, specialized TEC controller / power supply capable of precision-driving a single Peltier element. It features a true bipolar DC current source for cooling / heating, two temperature monitoring inputs (1x main, 1x auxiliary) and intelligent PID control with auto tuning.

The TEC-1090-HV is an OEM precision TEC controller that is primarily designed to operate as a stand-alone device. Further functionality includes smooth temperature ramping, thermal stability indication and auto gain (when using the standard NTC sensors). The PC-Software allows data logging and configuration import/export.

Auxiliary Temperature Sensor for Added Device Safety

The TEC-1090-HV is delivered configured for NTC (thermistor) temperature sensors. The controller is also configured with an auxiliary temperature input that allow the connection of NTC probe located on the heat sink of the Peltier element; the auxiliary sensor can be used to ensure the thermal safety of the electronics system by preventing thermal runaway. The analog measurement circuit is factory calibrated.

Digital Control Interface for Custom OEM Applications

The TEC-1090-HV is fully digitally controlled, it’s hard- and firmware offers numerous communication and safety options. It has an included PC-Software that allows configuration, control, monitoring and live diagnosis of the TEC controller via USB and RS485. All parameters are saved to nonvolatile memory. Saving can also be disabled for bus operation.

Complete Laser Diode Control Control Solution Portfolio

This module is part of the TEC-Family of Meerstetter TEC Controllers designed to operate alongside devices of the LDD-Family of laser diode drivers. Both families of drivers share the same system bus, design, technology and physical dimensions.

Temperature Sensor Options for Application Versatility

The TEC-1090-HV is available in other configurations: Pt100/Pt1000 temperature sensor inputs or Voltage sensor inputs. Inquire for details on the different configurations and a quotation.
