High Power Laser Diode Driver; 25A Current Range; 64V Voltage Range

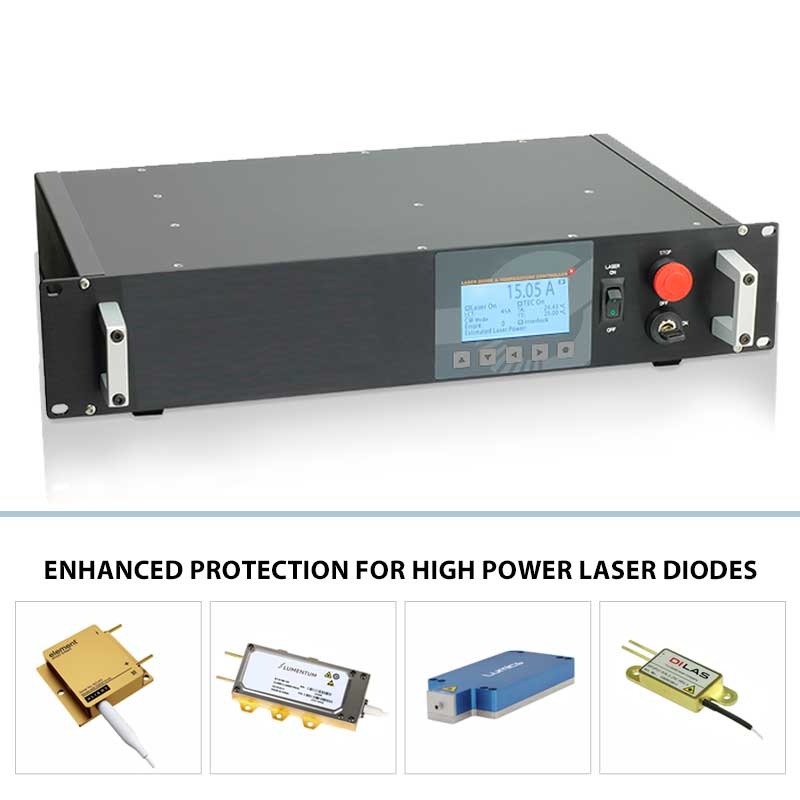

  • LDI laser diode driver high power

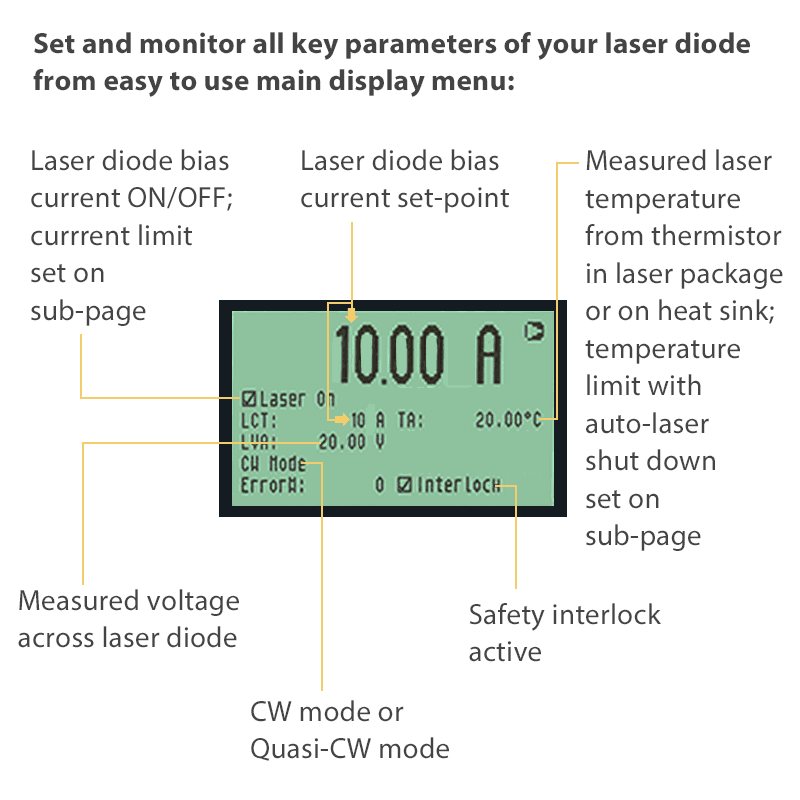

  • Laser Diode Driver Infographic Diagram

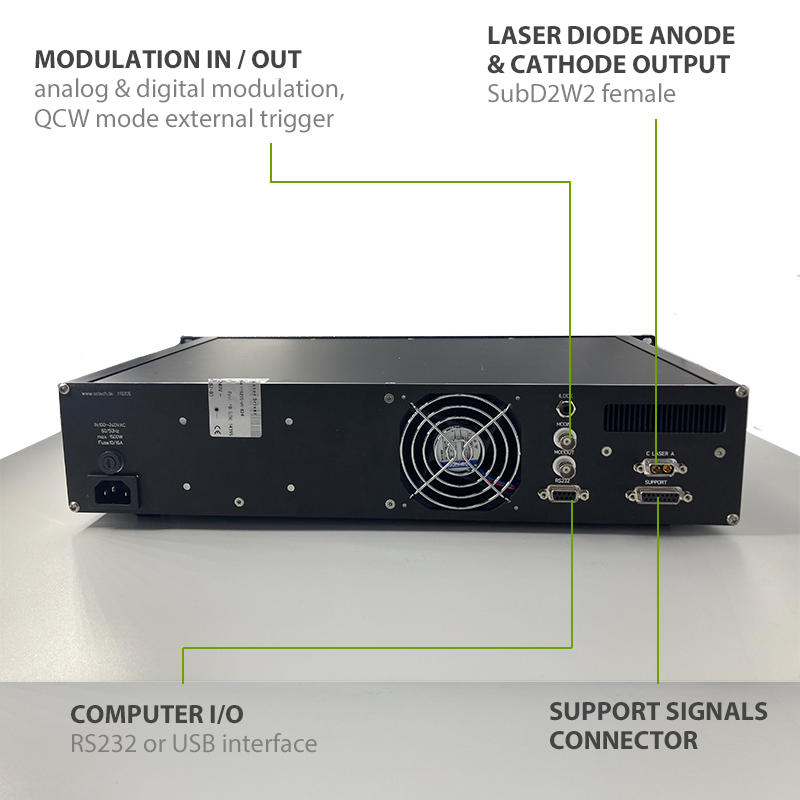

  • LDI-532 laser diode driver rear panel
  • LDI-532 laser diode driver devices panel

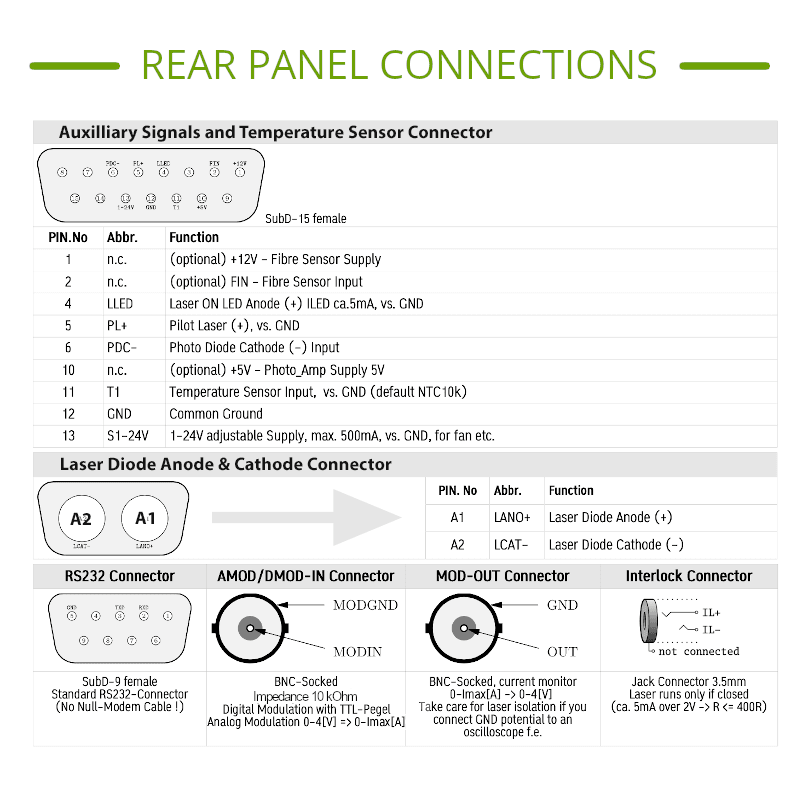

  • Laser Diode Driver Pin Diagram

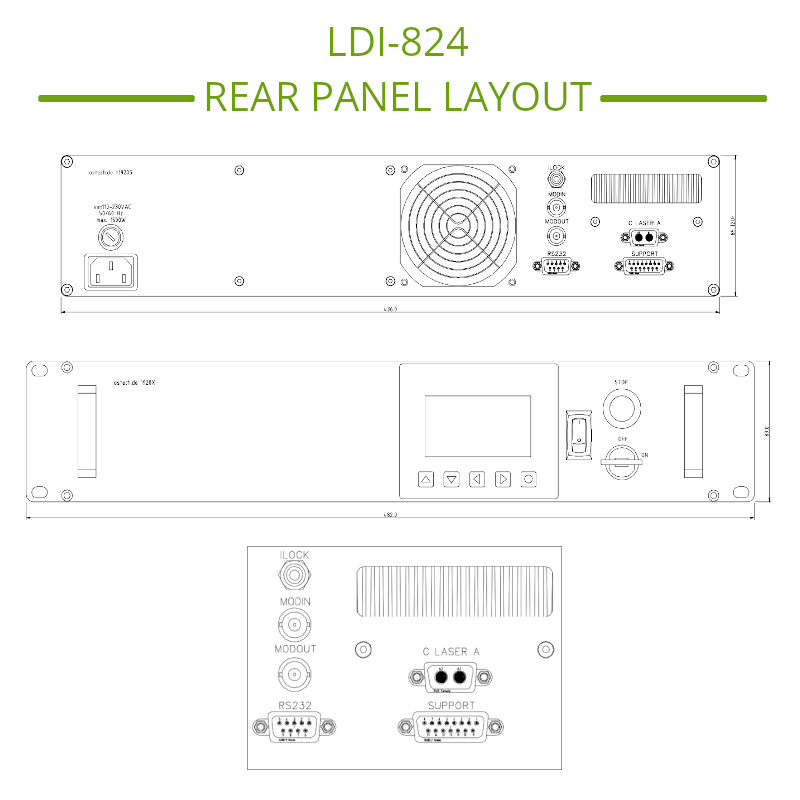

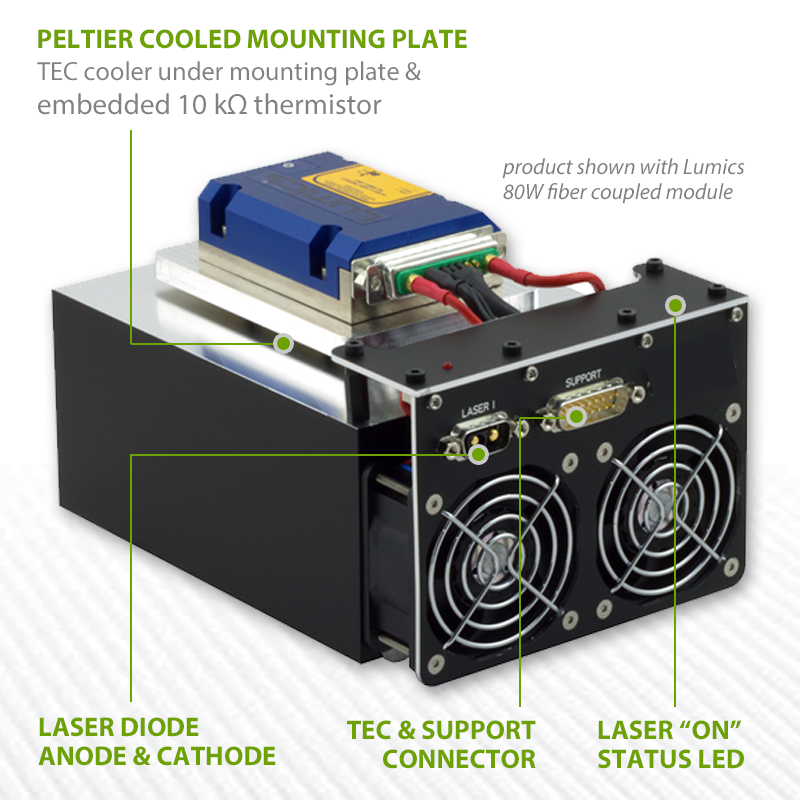

  • High Power Laser Bar Driver Backpanel

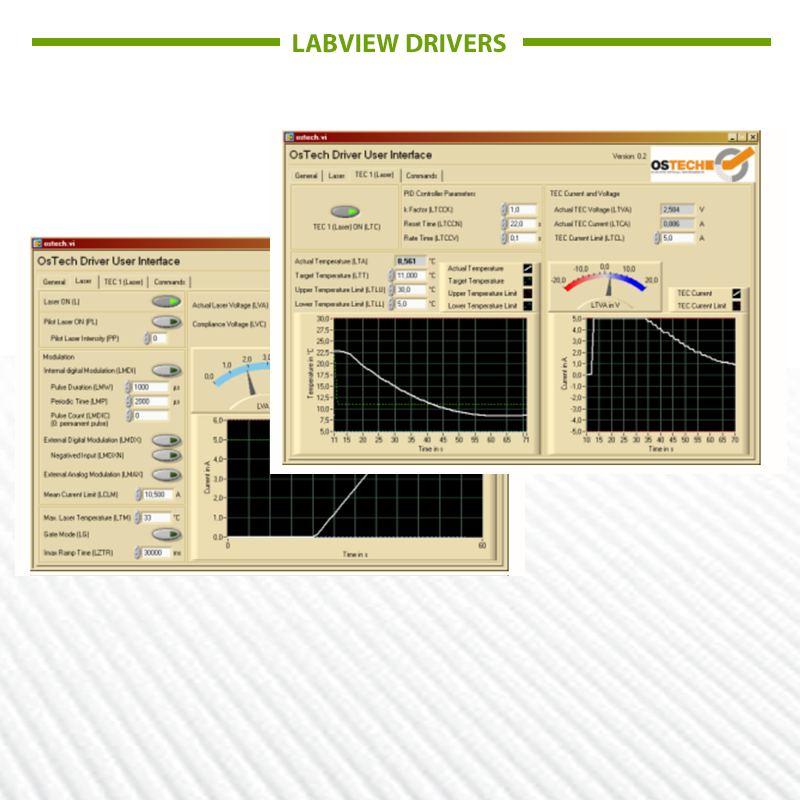

  • Software Screen Capture Driver for Laser Diodes Pulsed and CW
  • laser diode driver made in Germany logo

$4295.00
sku / item#: LDI-824
ships: Request a Quote for Current Ship Date

Key Features
  • Laser Diode Protection Features Optimized for High Voltage Laser Diodes and Laser Diodes Connected in Series
  • Advanced Laser Diode Protection:
    - Soft-start current ramp to set-point
    - Current, voltage & temperature limits
    - External temperature sensor monitor
    - Power surge & ESD transient clamps
  • RS232 Interface / USB Option Included / LabVIEW Drivers / Control Software GUI Included
  • Operates in CW Mode or QCW Mode: Integrated Quasi-CW Pulse Generator with Pulse Width from 30 µs to CW
