22 Amp, 24V, Laser Diode Driver with 192 Watt TEC Controller

  • high power laser diode driver

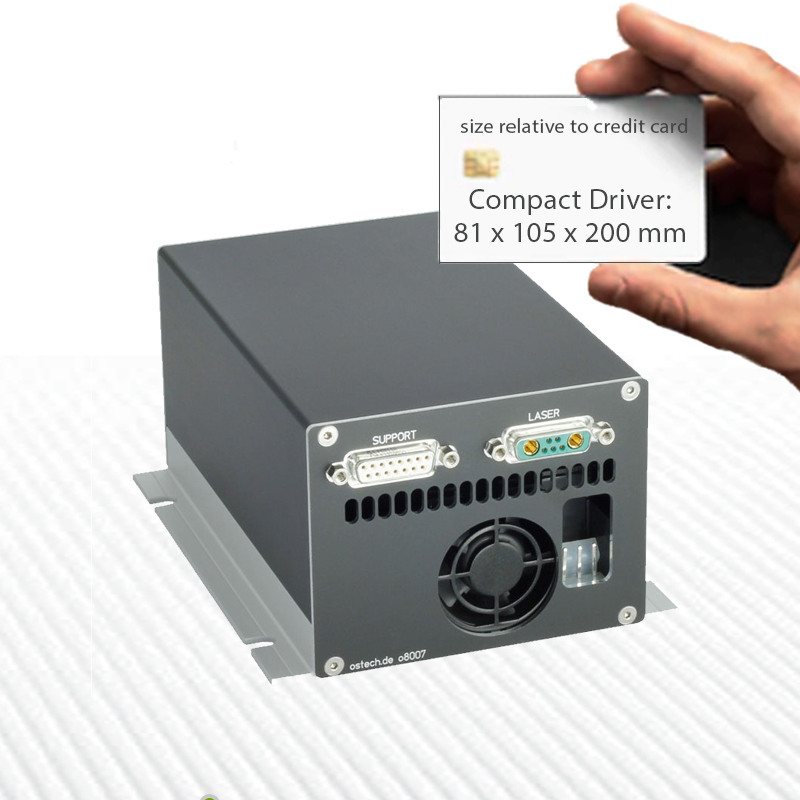

  • laser diode driver dimensions

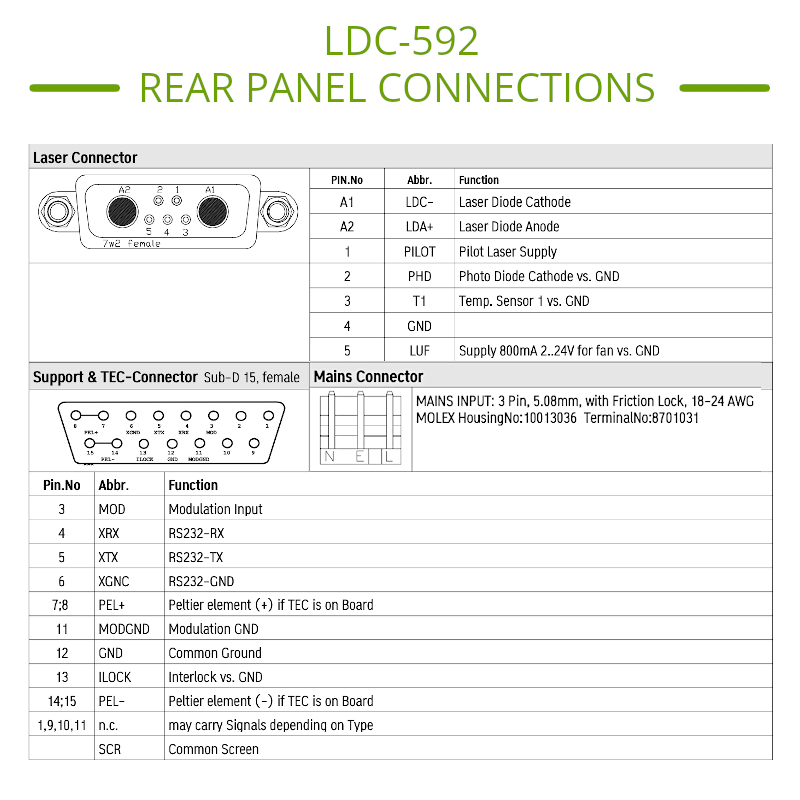

  • High Power Laser Diode Driver Pinout

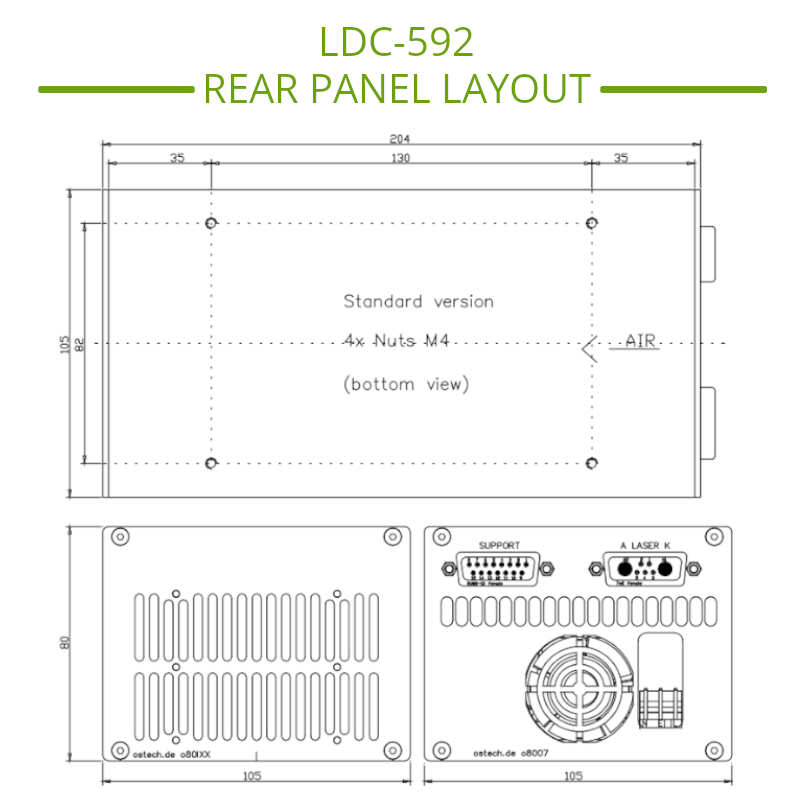

  • Multi Chip Emitter Laser Diode Controller Layout

$2556.00
sku / item#: LDC-592
ships: 14 to 18 days

Key Features
  • Designed for Multi-Chip and Series Connected Laser Diodes Requiring High Voltage
  • Output up to 24 Volts, 22 Amps (CW)
  • CW and Quasi-CW Modes
  • Pulse Widths 25 μs to CW
  • RS232 Interface with LabVIEW Drivers; USB Control Available as an Option
  • Previously Sold as PN: LDC-162
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart



Select Cables and Accessories for this Controller


This cable is also available terminated on the
controller end with a 15-pin d-sub connector (male) and
15-pin d-sub connector (female) on the device-end (kab-231).

This cable is also available terminated on the
controller end with a 15-pin d-sub connector and
unterminated on the device-end (kab-39).

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDC-592
PRICE $2556.00
LASER DIODE DRIVE CURRENT OUTPUT
  • Compliance Voltage Range: 0.12 - 24.00 Volts
  • Output Current Range: 0.00 - 22.00 Amps
  • Current Noise & Ripple (rms): < ± 0.5% of Full Scale
  • Current Setpoint Accuracy: ± 0.5%
  • Current Setpoint Resolution: 6 mA
  • Current Stability (4 hours): ≤ 100 ppm
  • Current Limit Setpoint Accuracy: ± 2%
  • Photodiode Current Measurement Accuracy: ± 0.5%
  • Photodiode Current Measurement Range: 0.00 - 700 μA

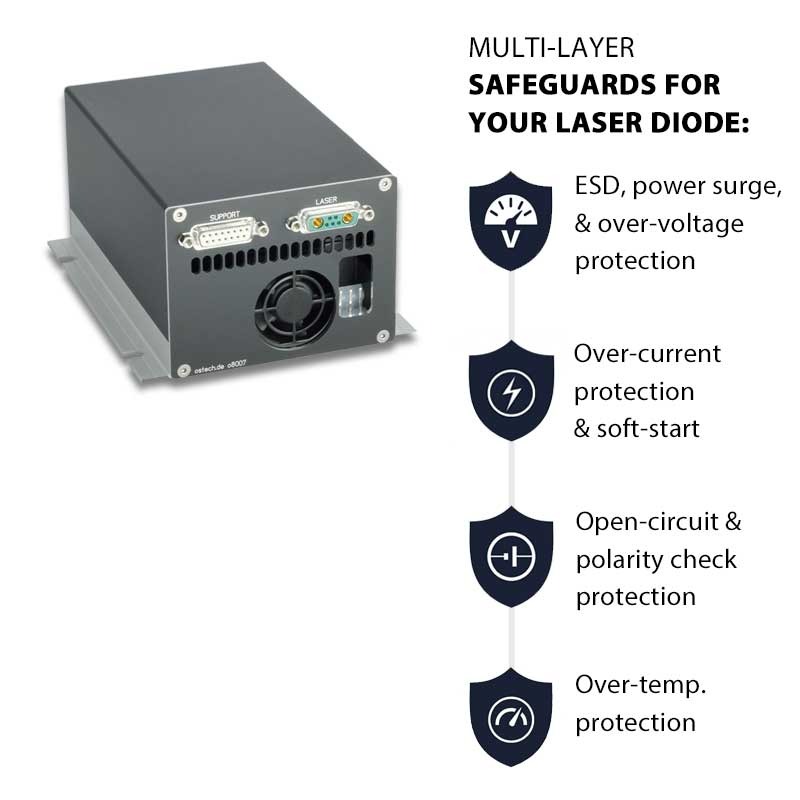

INTEGRATED LASER DIODE PROTECTION FEATURES
  • Soft-Start Current Ramp to Setpoint (User Programmable)
  • Soft-Start Current Ramp Factory Default Set to 300 Milliseconds
  • User-Programmable Current Limit
  • Open Circuit Detection; Short Circuit when Laser Diode Current Turned OFF
  • ESD and Power Surge Clamp, AC Line Filter
  • Reverse Voltage Transient Clamp
  • Safety Interlock Connection
  • Programmable Temperature Limits (Upper and Lower)
TEC TEMPERATURE CONTROLLER
  • TEC Output Power Total: 192 Watts
  • TEC Output Current Range (bipolar): ± 8.00 Amps
  • TEC Output Voltage Range (bipolar) : ± 24.00 Volts
  • Temperature Sensor Inputs: 10 kΩ Thermistor, NTC, PT100, PT1000
  • TEC Control Loop Algorithm: Full P.I.D.
  • P.I.D. Variables: User Adjustable to Optimize Temp. Settling Speed
  • TEC Setpoint Resolution: 0.01°C
  • TEC Output Stability: ± 0.01°C (subject to ambient temp. stability)
  • Temperature Range: -25°C to 150°C
  • Factory Set Default Lower Temperature Limit: 5°C
  • Factory Set Default Upper Temperature Limit: 35°C
QCW PULSE MODE AND MODULATION
  • QCW Pulse Width: 25 μsec to CW
  • Pulse Time Base Accuracy: ± 1.0%
  • QCW MODE 1: User Adjustable Pulse Width and Repetition Rate using Internal Pulse Generator
  • QCW MODE 2: External Trigger to Internal Pulse Generator: Rising Edge Triggered QCW Pulse with Internally Adjusted Pulse Width
  • Modulation Input: BNC, Digital (TTL) or Analog, 10kΩ Impedance
  • ---------------------------------------------------------------------------------------------
  • Modulation Input Voltage Range: 0 ~ 4 Volts (4V = Max Current)
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
Auxiliary Functions
  • Temperature Sensor Input: 10kΩ NTC Thermistor
  • Photodiode Cathode (Analog Connected to Gnd)
  • Pilot Laser Anode, vs. Ground: (4 - 5V, 150 mA)
  • Modulation Input
  • Electronic Safety Interlock
  • RS232 Connections
  • External Fan Control Circuit, 2 - 24V, 800mA (max)
USER INTERFACE and Connectors
  • RS232 Standard
  • LabView Drivers Included
  • Laser Connector: DB-7W2, Female
  • Support and Peltier Connector: SubD-15, Female
  • Main Power Connector: MOLEX Housing 10013036; Terminal 8701031
DIMENSIONS AND power INPUT
  • Power Input: Universal 90V ~ 230 VAC, 50/60 Hz
  • Dimensions: 85 mm (H) x 105 mm (W) x 204 mm (L)
Recommended Accessories
  • kab-39 Unterminated Connecting Cable -or-
    kab-231 Terminated Connecting Cable

Product Overview:

22 Amp / 192 Watt Laser Driver Overview

These high current and voltage current driver modules for laser diodes are designed to provide current and temperature control for multi-chip emitters and devices connected in series. They are high stability current sources with industry-leading protection features for semiconductor lasers.

Laser Driver Features

The laser driver can be run in a continuous wave (CW) or a pulsed (QCW) mode and has an integrated QCW pulse generator which generates microsecond to CW pulse widths. These modules will also work in with analog or digital modulation which can be applied through the rear panel DSUB connector.

Temperature Controller Features

The 192 Watt TEC controller is based on a full PID control loop, and the user has control of the PID variables to optimize the temperature settling time for the laser diode.

Laser Diode Driver Control and Interface

These drivers come with an RS232 serial interface and can also be ordered with a USB interface. LabView drivers are available at no additional cost. The laser current output is a high power rated DSUB connector and the Peltier-TEC connector is a standard 15 pin DSUB. Output cabling options and other accessories are available. Please contact us for more information on available cabling options.

Controller Power Input and Cooling

The controller operates from a standard 110~230 VAC power source, and can be used as a cost effective laboratory power supply or as an OEM module for integration into a laser system. These units have an integrated chassis fan to keep the current output stage cool and keep them operating reliably for years of continuous use.
