Precision TEC Controller, 220W Output, Temperature Control Stability 0.005 °C

  • TEC Controller Model TEC-1089 Meerstetter Engineering
  • Meerstetter Engineering TEC Controller Schematic
  • meerstetter-engineering-tec-controller-display
  • meertstetter-engineering-tec-controller-software
  • 220W TEC Controller
  • ch-image

$612.00
sku / item#: TEC-1089-SV-NTC / TEC-CONTROLLER
ships: Request a Quote for Current Ship Date

Key Features
  • Controls temperature to within 0.005 °C of desired set-point
  • TEC output current: 0 to ±10 A
  • TEC output voltage: 0 to ±21 V
  • Thermistor / NTC primary temperature sensor input (other sensor types available)
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL TEC-1089-SV-NTC / TEC-CONTROLLER
PRICE $612.00
General Specifications
  • TEC Output Voltage: 0 to ±21 V
  • TEC Output Current: 0 to ±10 A
  • Noise and Ripple : <1%
  • Temperature Sensor Input: NTC (ie. 10k Thermistor)
  • Auxiliary Temp. Sensor Input: NTC (ie. 10k Thermistor)
  • Smooth Temperature Ramping and High Thermal Stability
  • PID Temperature Control: PID Setting and Auto-Tuning PID Set Capability
  • Available Temperature Sensor Types: Pt100, Pt1000, NTC, Voltage
    Standard / Default Configuration is NTC
  • Refer to Datasheet for Additional Specifications
Electrical Specifications
  • Input Power: 12 – 24 VDC, 10 A
Package Specifications

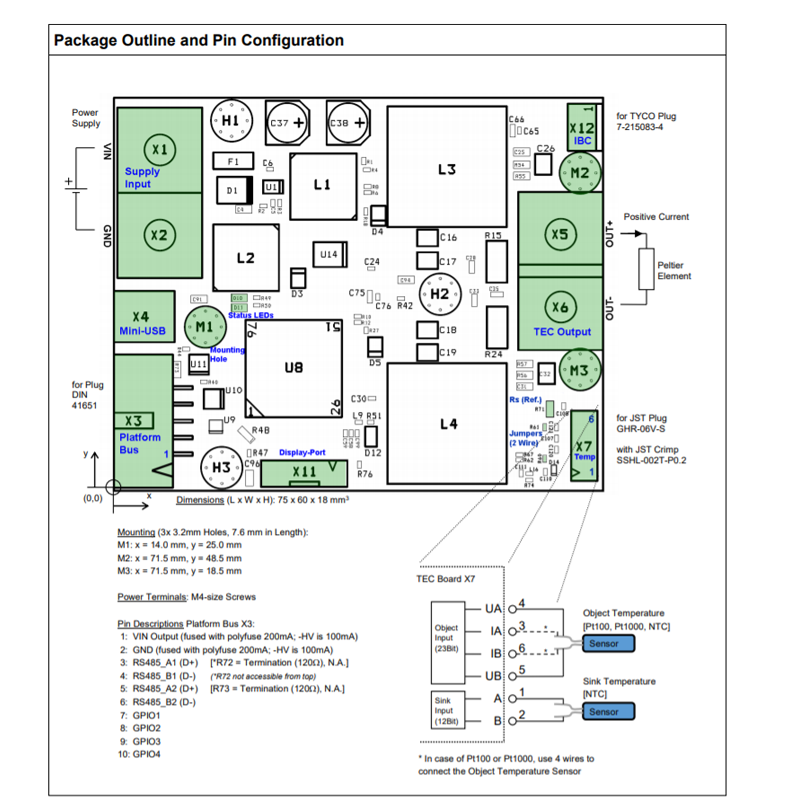

  • Dimensions (L x W x H): 75 mm x 60 mm x 18 mm
  • 4 x Digital I/O Signals (3.3 V / 5 V)
  • Remote Control: USB, RS485, RS422, I/O
Applications
  • Pump Laser Cooling
  • High-Power Electronics Cooling
  • Infrared Detectors / Sensors

Product Overview:

TEC Controller | High Precision Temperature Controller

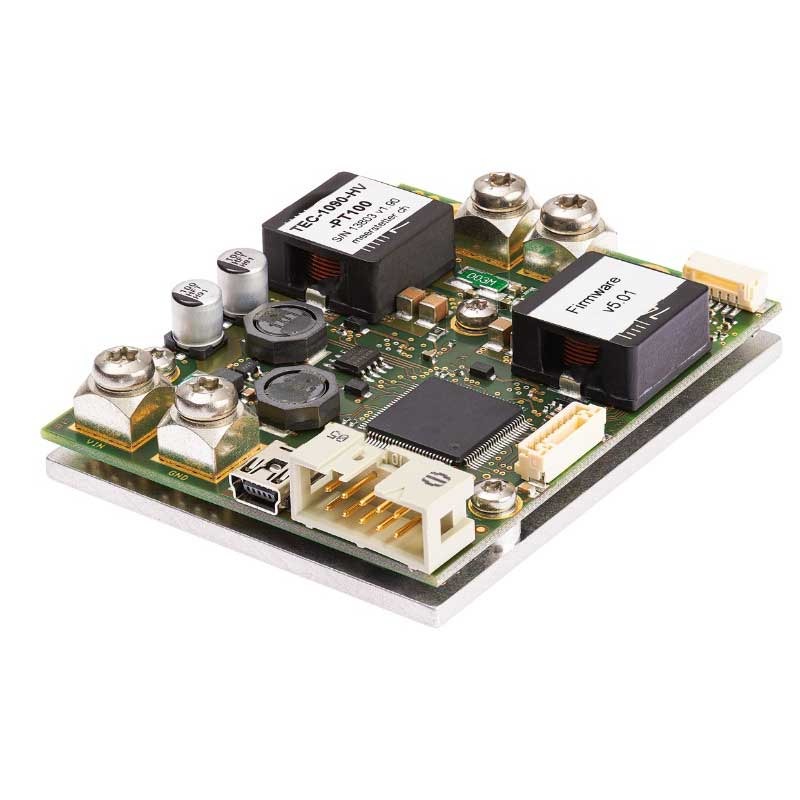

The TEC-1089-SV is a specialized TEC controller capable of providing precision control of the temperature of laser diodes. It is fully digitally controlled, its hardware and firmware offer numerous communication and safety options. It is a true bipolar DC current source for cooling / heating of Peltier elements, with two temperature monitoring inputs (1x main, 1x auxiliary) and intelligent PID control with auto tuning. The heating and cooling power of these TEC controllers are optimized by proprietary thermal management routines based on power balance models (for Peltier elements).

Auxiliary Temperature Sensors for Added Safety

The TEC-1089-SV is delivered configured for NTC (thermistor) temperature sensors. The controller is also configured with auxiliary temperature inputs that allow the connection of NTC probes located on the heat sinks of the Peltier elements; these auxiliary sensors can be used to ensure the thermal safety of the electronics system by preventing thermal runaway. The analog measurement circuit is factory calibrated.

Multiple TEC Controller Interface Options

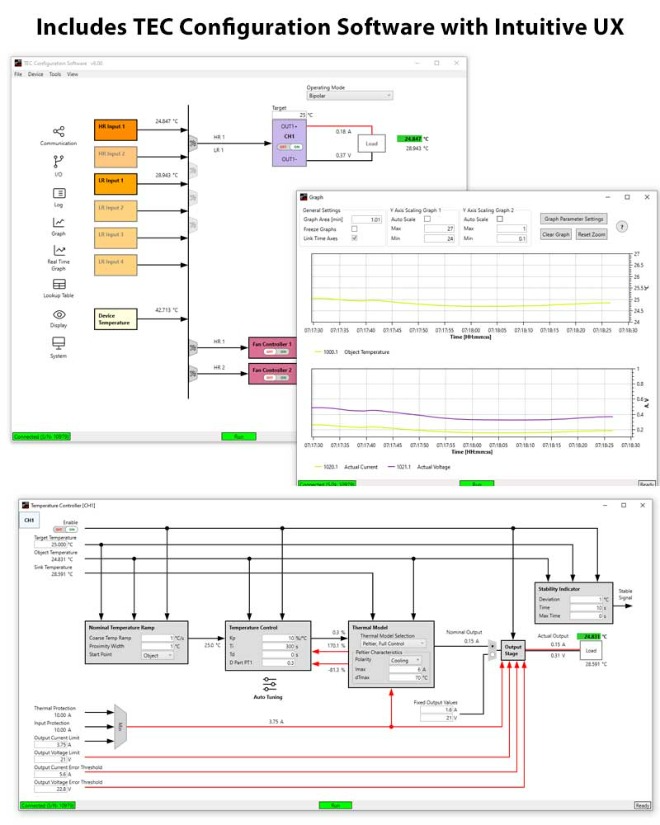

This laser diode TEC controller includes PC-Software which allows control, monitoring and live diagnosis of the TEC Controller using USB or RS485 connections from a PC running Windows.

Software Control and Non-Volatile Memory Operation

After power up, the unit will operate according to pre-configured values. The software comes with a user-friendly interface for maintenance, firmware upgrades, basic data logging and device calibration. All of the parameters can be saved a nonvolatile memory. Saving can also be disabled for bus operation.

DPY-1113 Display Kit for Rapid Prototyping

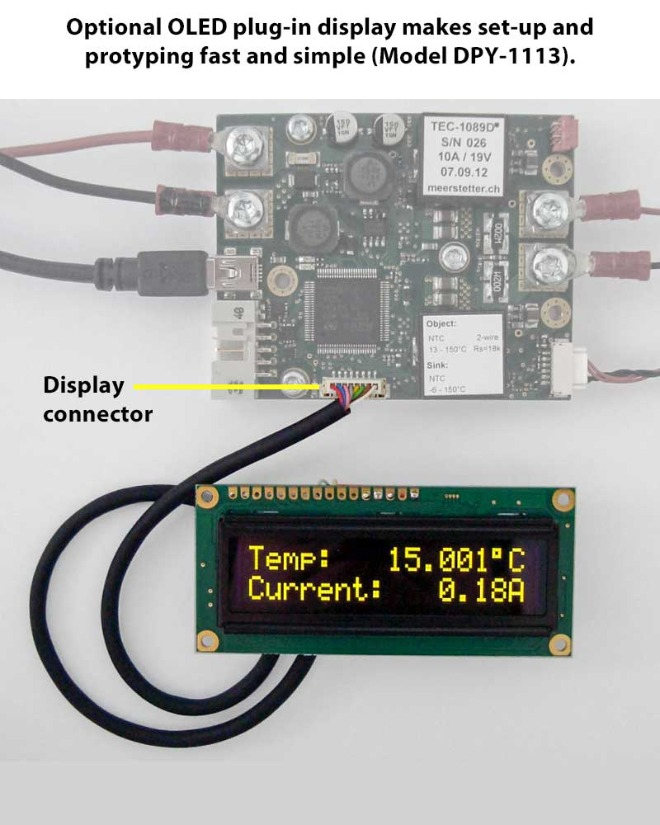

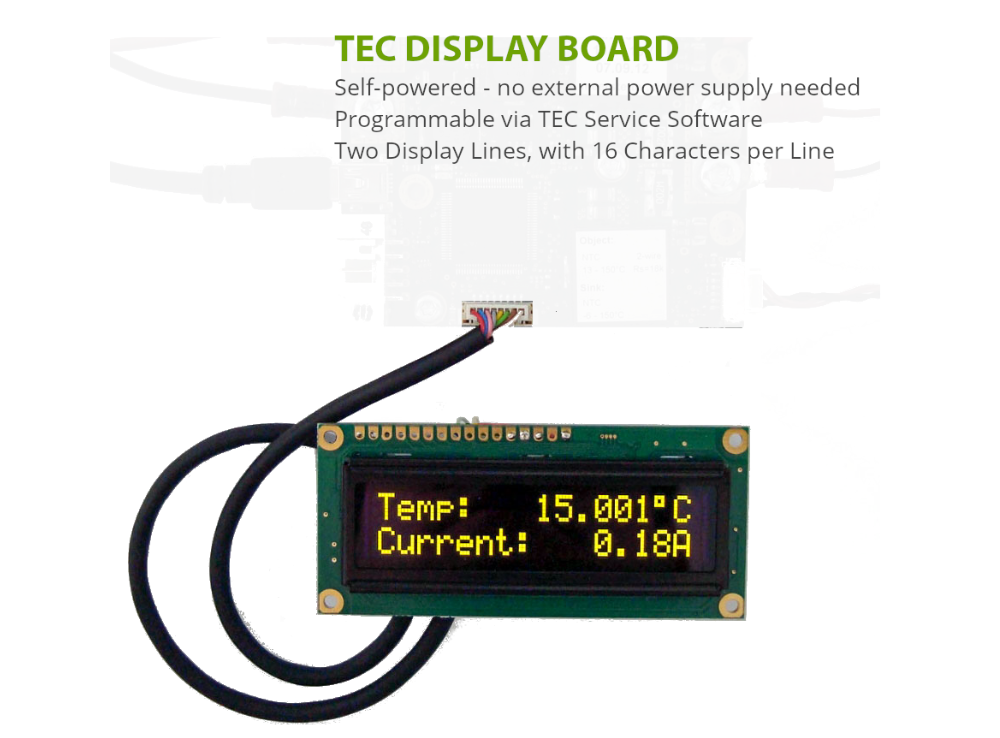

The DPY-1113 TEC Status Display Kit is available to help speed prototyping efforts. The DPY is configurable via the TEC Service Software, and allows the display fields to be customized.

Complete Laser Diode Control Control Solution Portfolio

This module is part of the TEC-Family of Meerstetter Engineering TEC Controllers designed to operate alongside devices of the LDD-Family of laser diode drivers. Both families of drivers share the same system bus, design, technology and physical dimensions.

Multiple Configurations for Application Versatility

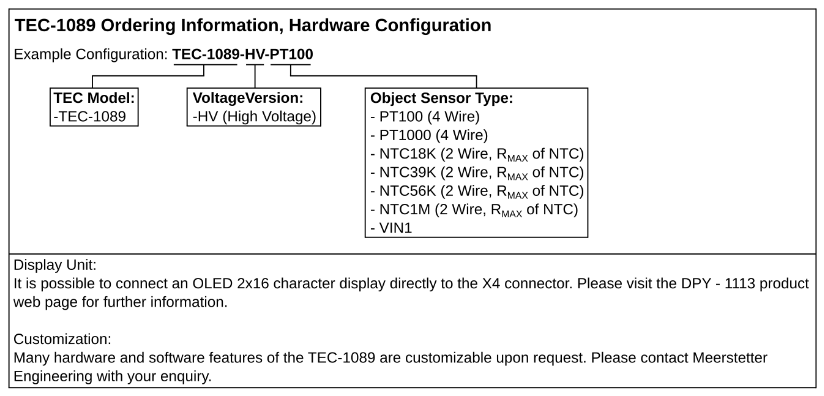

The TEC-1089-SV is available in other configurations: Pt100/Pt1000 temperature sensor inputs, Voltage sensor inputs; SIP-pin terminals for connection directly to a PCB interface board, or with solder-pads for direct wiring. Inquire for details on the different configurations and a quotation.
