Dual Output Ultra-Compact OEM TEC Controller; Two 220 Watt TEC Controller Channels

  • 220W Dual TEC Controller Effeciency vs. Output
  • Dual 220 W TEC Controller Output Operating Conditions

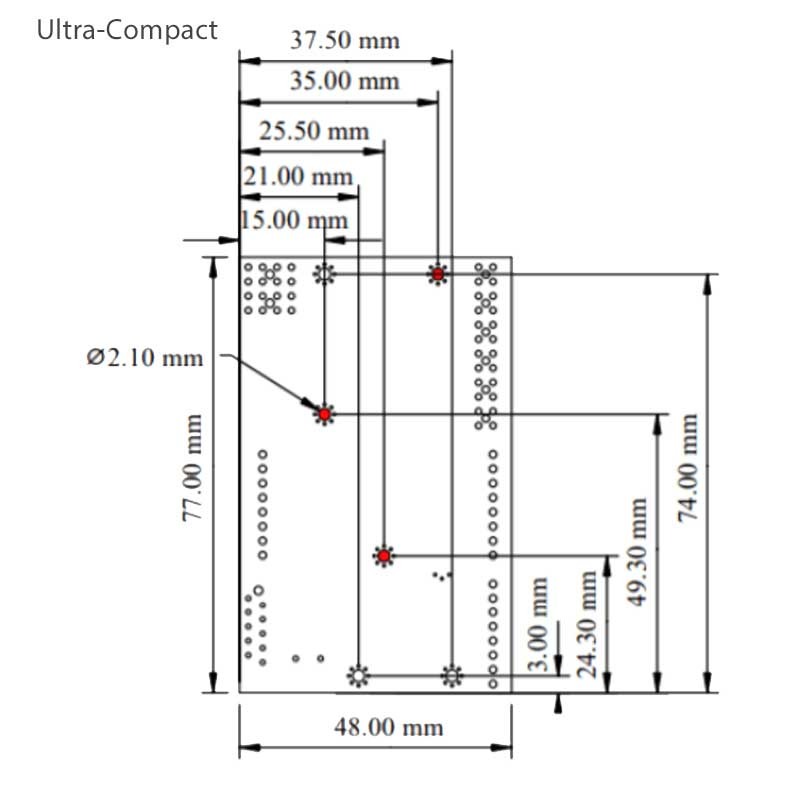

  • 220W OEM TEC Controller Connector Dimensions

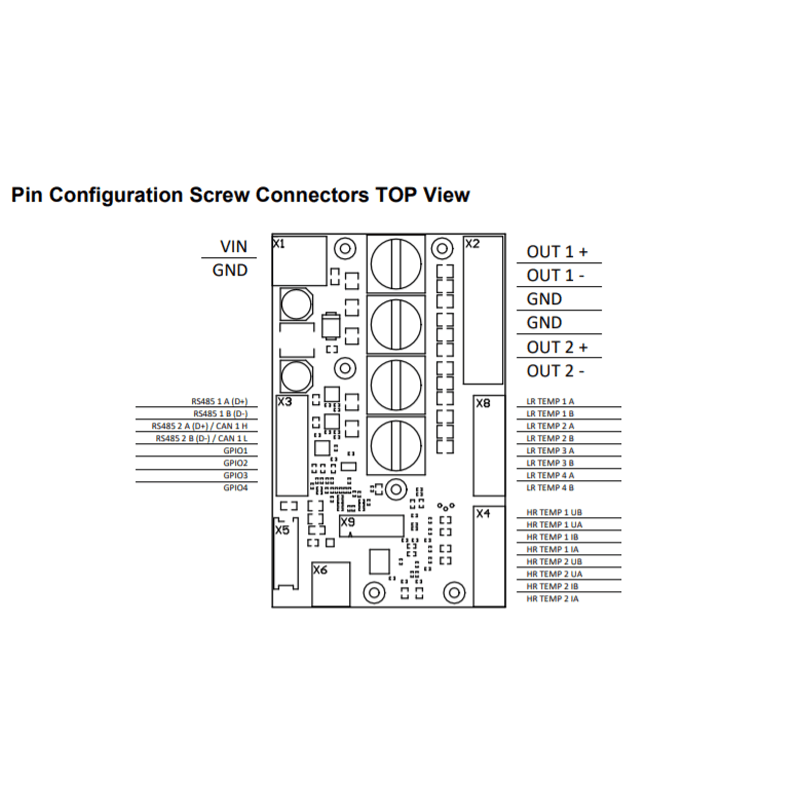

  • Meerstetter Engineering TEC Controller Circuit Connectors
  • TEC Controller Display Kit

sku / item#: TEC-1161-10A-NTC / TEC-CONTROLLER
ships: Request Quote for Price and Lead Time

Key Features
  • Two Independent TEC Controller / Driver Channels
  • 2 x 105 Watt TEC Controller Outputs
  • Output Current up to ± 10 Amps
  • Output Voltage up to ± 21 Volts
  • Temperature Stability: < 0.01 °C
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE $834.00
General Specifications
  • TEC Output Current: 0 to ±10 A
  • TEC Output Voltage: 0 to ± 21 V
  • Noise and Ripple : <1%
  • Temperature Sensor Input: NTC (ie. 10k Thermistor)
  • Auxiliary Temp. Sensor Input: NTC (ie. 10k Thermistor)
  • PID Temperature Control: PID Setting and Auto-Tuning
  • Available Temperature Sensor Types: Pt100, Pt1000, NTC, Voltage
    Standard / Default Configuration is NTC
  • Refer to Datasheet for Additional Specifications
Electrical Specifications
  • Input Voltage: 4.9 – 24 VDC
Package Specifications
  • Dimensions (L x W): 74 mm x 48 mm
  • Connecting Terminal Type: Screw Terminal
  • SIP and Solder Terminals Available; Inquire for Quote
  • Control Interfaces: USB, CAN, RS485, I/O
  • Pump Laser Cooling
  • High-Power Electronics Cooling
  • Infrared Detectors / Sensors

Product Overview:

2 x 220 Watt, Dual Output Precision TEC Controller

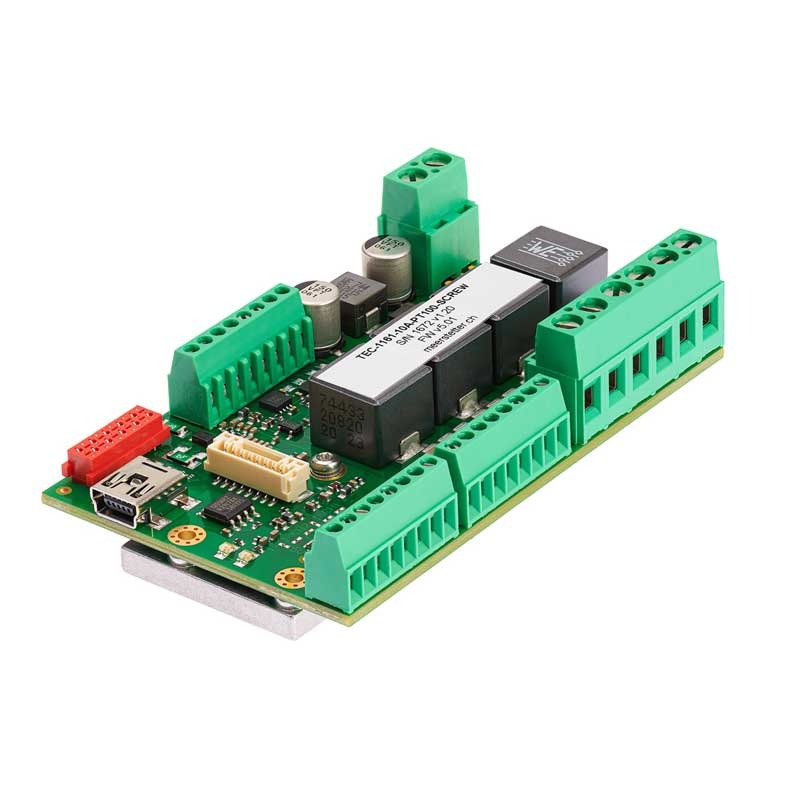

The TEC-1161-10A is a specialized TEC controller able to precisely control two independent Peltier elements or resistive heaters. Each output channel features a true bipolar current source for cooling / heating, two temperature monitoring inputs (1x high resolution, 1x auxiliary) and intelligent PID control with built-in autotune. The TEC-1161's hardware and firmware offers various communication and multiple safety options.

Powerful Two-Channel TEC Control

The TEC-1161's two independent channels may also be operated in parallel, to either drive two individual or one common load (current doubling). Further functionality and features include: smooth temperature ramping, thermal stability indication and auto gain (NTC probes). The heating and cooling power is optimized by proprietary thermal management routines based on power balance models (for Peltier elements and resistive heaters).

Auxiliary Temperature Sensors for Added Safety

The TEC-1161-10A is delivered configured for independent NTC (thermistor) temperature sensors for each channel. Each channel is also configured with an auxiliary temperature input that allow the connection of an NTC temperature sensor located on the heat sink of the Peltier elements; these auxiliary sensors can be used to ensure the thermal safety of the system by preventing thermal runaway. The analog measurement circuit is factory calibrated.

Versatile TEC Control for Laser Diodes and Temperature Sensitive Electronics

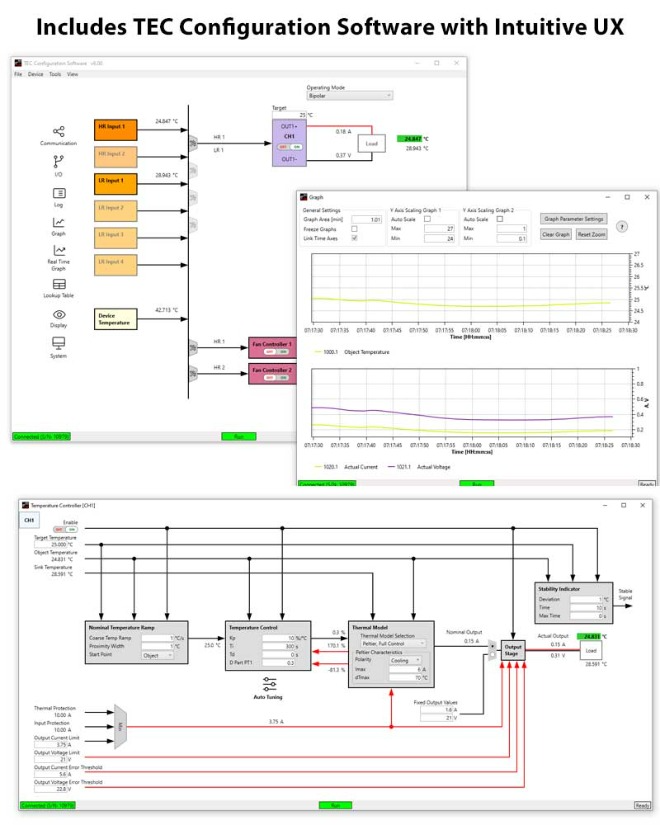

These small footprint TEC controllers are digitally controllable through software or API and scripting, including a LabVIEW VI software (PDF) available to operate the TEC controller. Several communication and security features enhance the functional range. The PC-Software allows data logging and configuration import/export.

DPY-1113 Display Kit for Rapid Prototyping

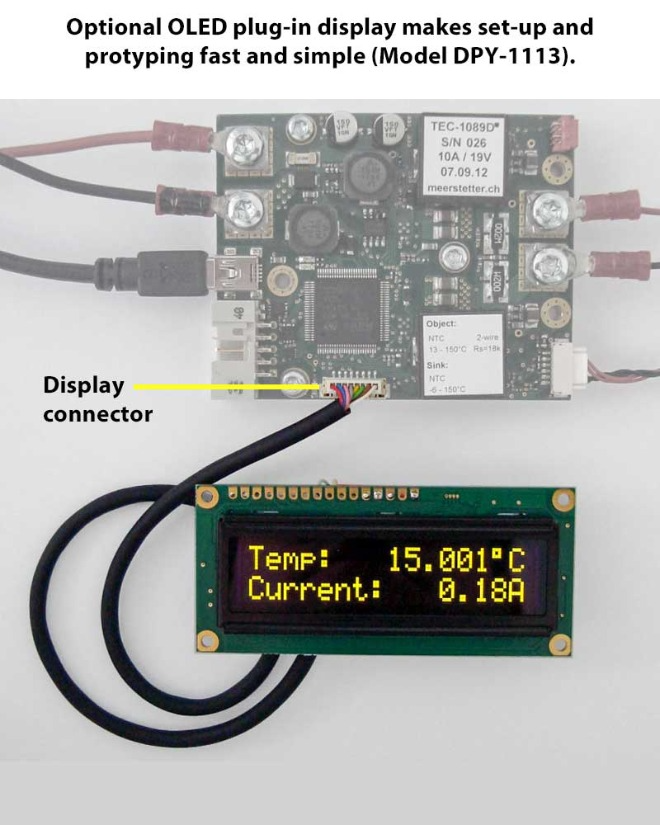

The DPY-1113 TEC Status Display Kit is available to help speed prototyping efforts. The DPY is configurable via the TEC Service Software, and allows the display fields to be customized.

Complete Laser Diode Control Control Solution Portfolio

This module is part of the TEC-Family of Meerstetter TEC Controllers designed to operate alongside devices of the LDD-Family of laser diode drivers. Both families of drivers share the same system bus, design, technology and physical dimensions.

Multiple Configurations for Application Versatility

The TEC-1161-10A is available in other configurations: Pt100/Pt1000 temperature sensor inputs, Voltage sensor inputs; SIP-pin terminals for connection directly to a PCB interface board, or with solder-pads for direct wiring. Inquire for details on the different configurations and a quotation.
