100 Amp Laser Diode Driver Module, CW and QCW Output Modes

  • 1000 Watt OEM Laser Diode Driver Module
  • Laser Diode Driver, Model LDD-100
  • LDD-100 Laser Diode Driver Schematic
  • 1ms Rise Time 100 Amp Laser Diode Driver
  • LDD-1500 Watt OEM Laser Diode Driver

Request Quote
sku / item#: RLS / LDD-1000
ships: Request a Quote for Current Ship Date

Key Features
  • 100 Amp Laser Diode Driver with Compliance Voltage up to 10V
  • Control by RS232 or by Manual Board-Level Adjustments
  • Offered by OEM Tech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / LDD-1000
PRICE Request Price
Output Specifications
  • Output Current Range (max): 100 Amps
  • Maximum Output Power: 1kW
  • Current Regulation Accuracy: < 1% Imax
  • Current Value Error: < 1% Imax
  • Current Overshoot: < 1 % Imax
QCW Pulse Specifications

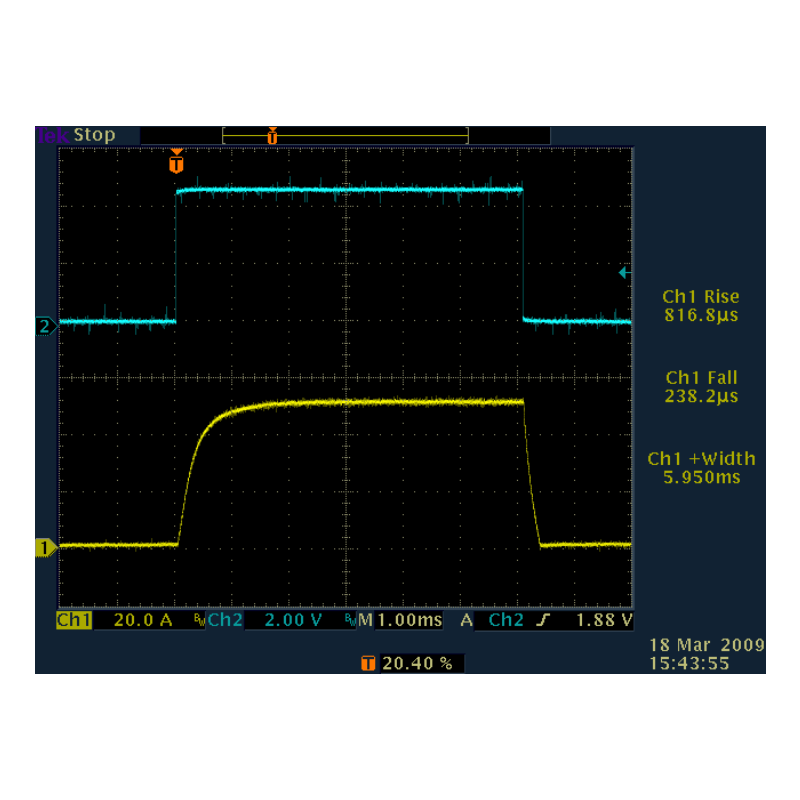

  • Rise/Fall Time: < 1 msec (10% to 90% full current), < 500 μs on request
  • Digital Modulation Frequency BW: DC - 1 kHz
Control Interface
  • I/O Connector: 15-Pin D-Sub Female (Unit Ships with Plug-In Adapter Boards that Provide RS232 and Manual Adjustment Interfaces)
  • Current Monitor: 0 - 10 V, Proportional to Imax
  • Voltage Monitor: 0 - 10 V, Proportional to Imax*
  • *Voltage monitor corresponds to output voltage when Vmax <10 V; or to 1⁄2, 1⁄4, (etc) of output voltage when Vmax is 20 V, 40 V, etc
  • Optional Stand Alone Control Interface Board (Option –STA, Request Info)
  • Optional RS-232 Control Interface Board (Option –RS232)
Output Grounding Details
  • By default, both OUTPUT negative and INTERFACE return are internally connected to the chassis ground. Laser diodes with the anode connected to the case should not be used with the LDD-1000. Modifications with floating output are available on request.
general specifications
  • Power Factor Correction: > 0.98 (active)
  • Power Supply: 200-240 VAC, 50/60 Hz or 100-240 VAC, 50/60 Hz
  • Current Draw: < 12 A
  • Dimensions: 296 mm x 213 mm x 70 mm
  • Operating Temperature: 0 – 40ºC
  • Storage Temperature: -20 – 60ºC
  • Humidity: 0 – 90% Non-Condensing
  • Weight: 2.9 kg
  • Leakage Current at Output Off: < 150 µA
  • Safety Certificate Available on Request: IEC60950, IEC60601-1
  • Case Fault Voltage: 4000 VAC
  • EMC Certificate Available on Request: IEC 60601-1-2 or EN 55011/CISPR 11

Product Overview:

100 Amp, 1kW OEM Laser Diode Driver Module

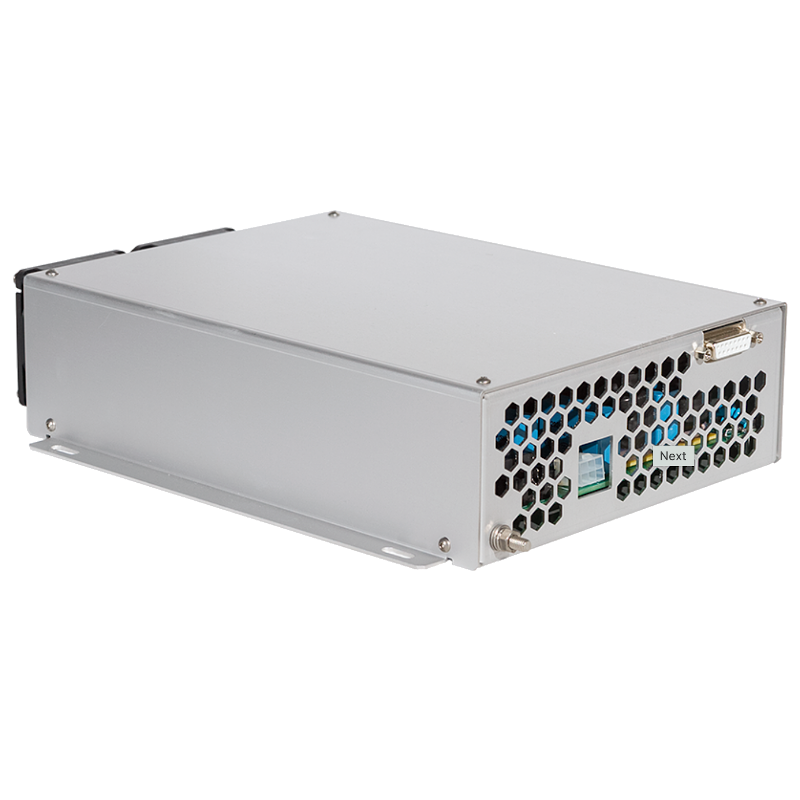

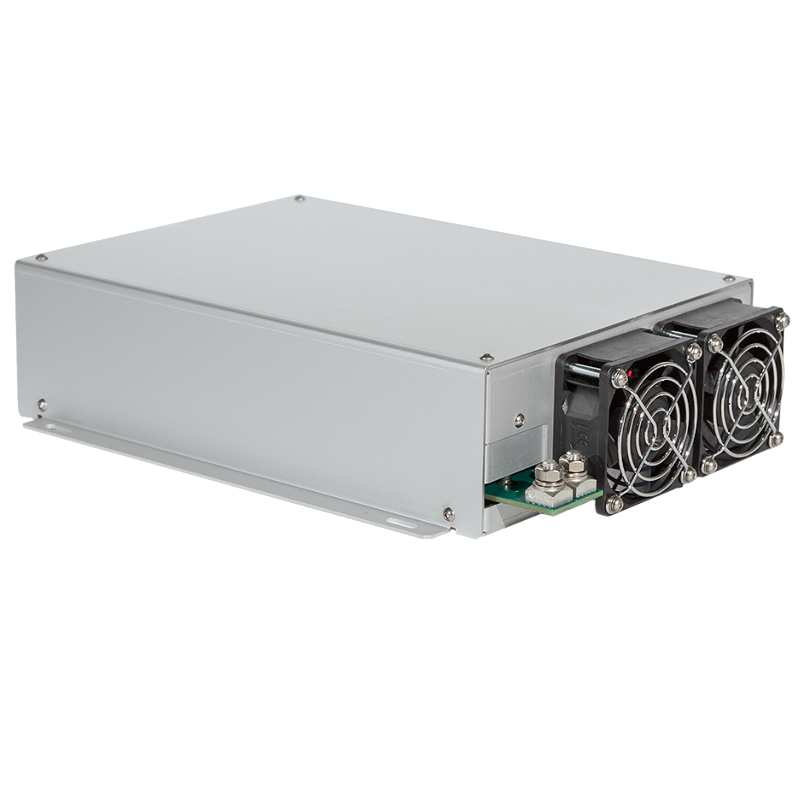

The LDD-1000 is a high-power pulse-mode or CW-mode laser diode driver, designed for use in OEM applications, and driving up to 1000 Watts output power. The driver is packaged in a protective, rugged, and compact metal case, and includes integrated fans for cooling the module. A minimum number of electrical connections are required to operate the LDD-1000, which ultimately means fast and efficient configuration overall lower integration cost.

Factory-Configured Output For Maximum Efficiency

The LDD controllers are capable of driving up to 100 Amps. At the time of order, the maximum current and maximum voltage requirements are determined by the user and set by the factory, with a maximum power output Pmax = Imax * Vmax = 1000 Watts. When the module is operating, the output current is user-adjustable from 0 A to the Imax determined by the user. This factory-customization process results in maximum electrical efficiency in the OEM application.

Multiple Control Modes for Optimized Convenience

The output current level is user-adjustable by applying a DC voltage to the control pin, and the output current switched on by a +5V TTL signal to the output enable pin. The modulation frequency and pulse width are set by an external active-low TTL signal from a pulse generator. The control signal interface is a 15-pin D-Sub connector.

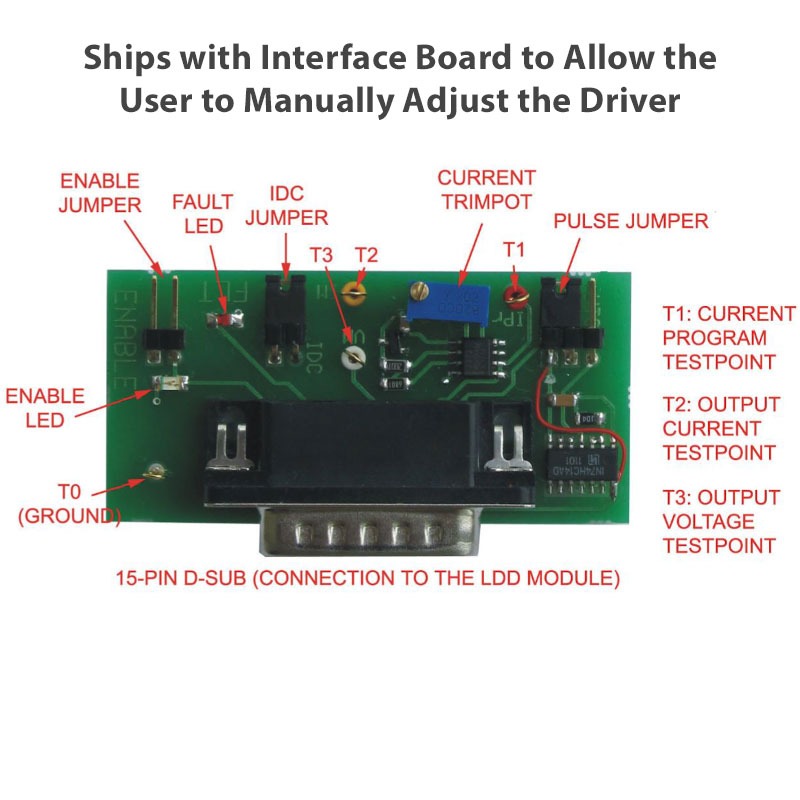

An optional control PCB is available, purchased separately, that provides configuration jumpers, monitor voltage test points, and the current adjustment trimpot. This accessory board is ordered with part number -STA.

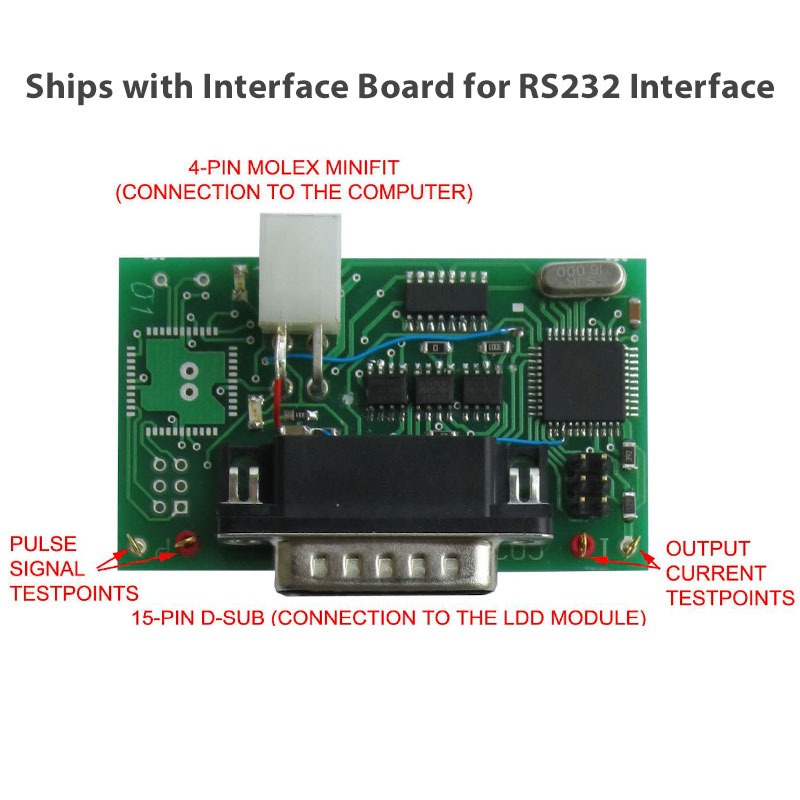

The laser driver module can be controlled by RS-232 using an interface board that connects to the 15-pin D-Sub connector. The command list is short and easy to use in custom-written application software. This optional interface board is part number -RS232.

Multiple Output Power Models Available

The LDD-Series laser diode drives are available with different maximum output power: 600 Watt, 1000 Watt, 1500 Watt, and by special request, up to 2000 Watts. Inquire with us for details about the LDD-600, LDD-1500, and LDD-2000 models

IEC 60601-1 Safety Compliant for Medical Applications

Diode drivers were designed to comply with IEC 60601-1 (safety) and IEC 60601-1-2 (EMC). Therefore, modules may be used in different kinds of medical devices without any additional filtration and safety measures, at the same time for the proven compliance to standards for a certain modification the certification procedure is need to be passed, which is available on demand.
