100 Amp Laser Diode Driver with Compliance Voltage Range up to 30 Volts

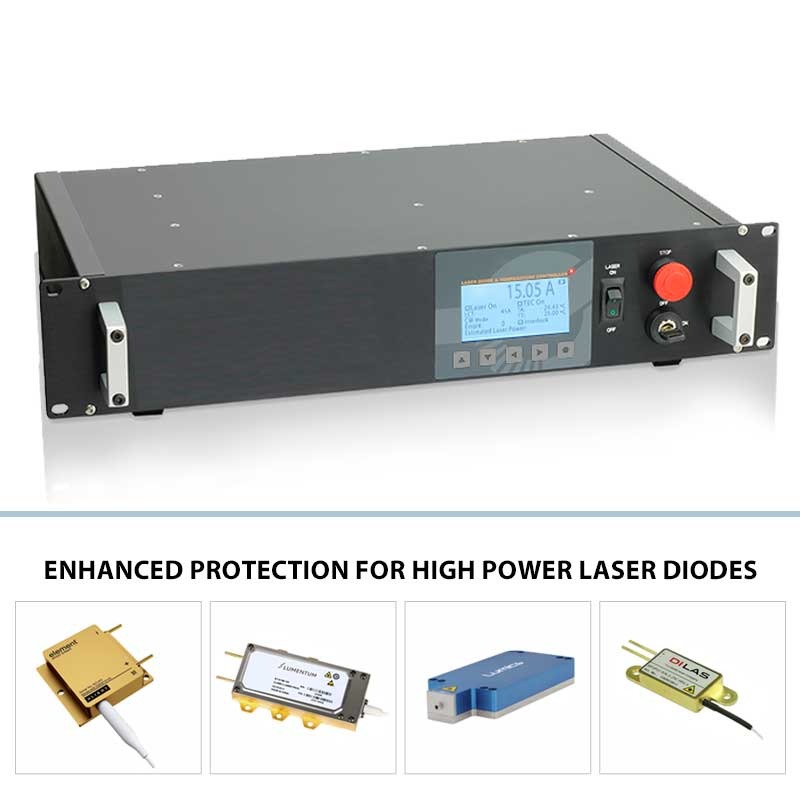

  • Laser Diode Driver, Model LDI-880
  • Laser Diode Driver Diagram

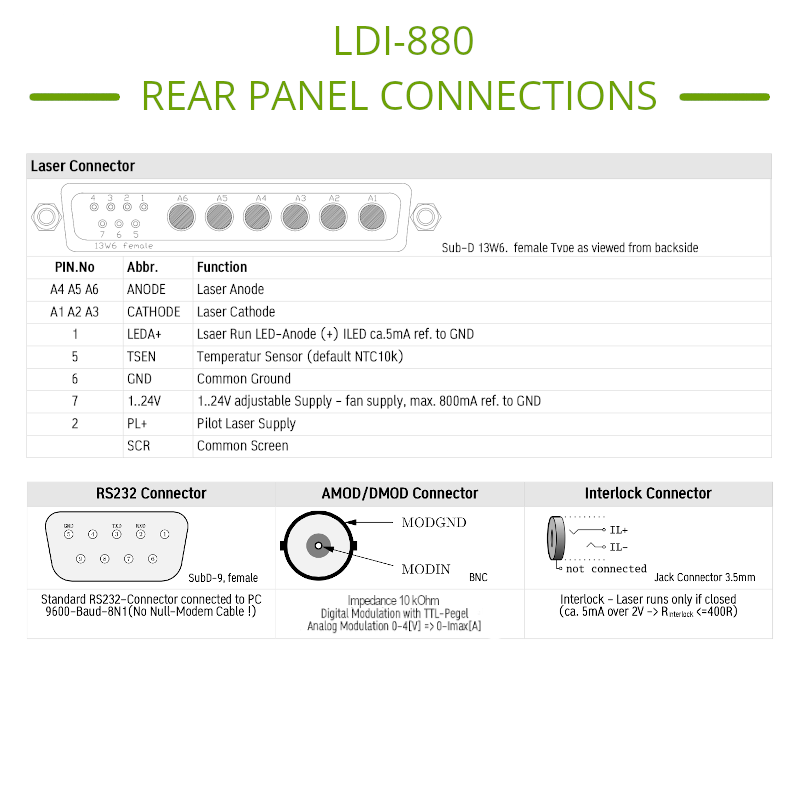

  • 100 Amp Laser Diode Driver Pinout

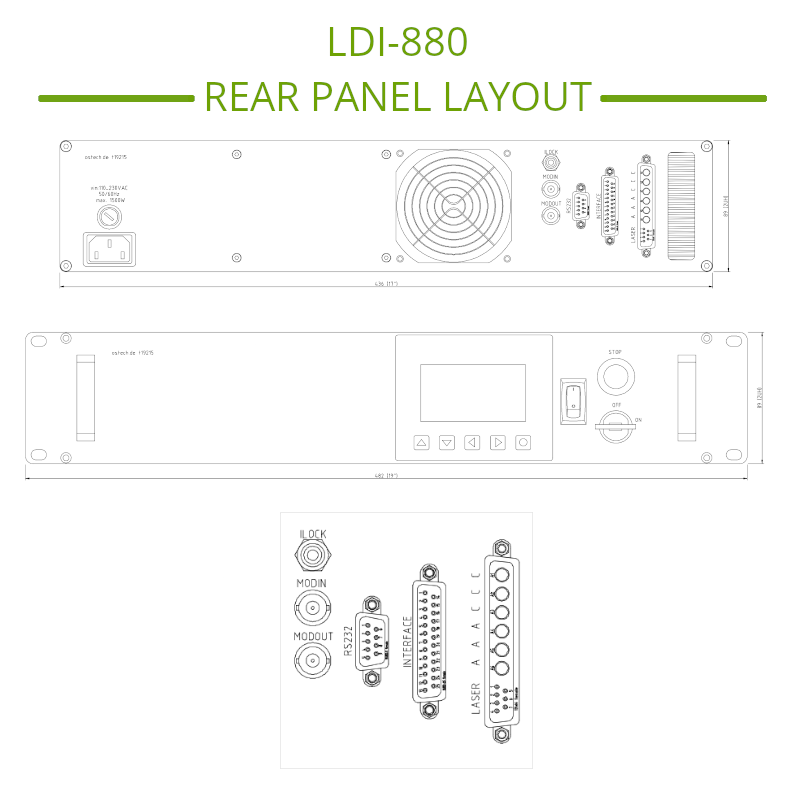

  • High Power Laser Diode Driver Connectors
  • Laser Diode Driver Installation Infographic
  • Driver for Laser Diodes Pulsed and CW

$6870.00
sku / item#: LDI-880
ships: 14 to 18 days

Key Features
  • Current up to 100 Amps; Compliance Voltage up to 30 Volts
  • Optimized for Safely Biasing Laser Diode Bars and Stacks in Series
  • CW Mode Pulse Mode; User-Set Pulse Widths from 30 µs to CW
  • User Configurable Soft-Start Ramp to Laser Diode Bias Set-Point
  • Open Circuit Detection and Fast Shut-Down with Analog Control Loop
  • RS232 Interface with LabVIEW Drivers
  • Optional USB Interface available
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart



Select Cables and Accessories for this Controller

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDI-880
PRICE $6870.00
LASER DIODE CURRENT AND VOLTAGE OUTPUT (CW / QCW)
  • Current Range: 0.00 - 100.00 Amps
  • Compliance Voltage Range: 30.00 Volts* (max output power with 110VAC input is 2kW; max output power with 230VAC input is 3kW)
  • Current Noise & Ripple (rms): < ± 0.5% ( of full scale current )
  • Current Setpoint Resolution: 25 mA
  • Current Setpoint Accuracy: ± 0.5%
  • Current Limit Setpoint Accuracy: ± 2%
INTEGRATED LASER DIODE PROTECTION FEATURES
  • Soft-Start Current Ramp Factory Default Set to 300 Milliseconds; User Adjustable
  • User-Programmable Current Limit
  • Open Circuit Detection
  • ESD and Power Surge Clamp, AC Line Filter
  • Reverse Voltage Transient Clamp
  • Rear Panel Keylock Switch and Safety Interlock
  • Short Circuit when Laser Diode Current Turned OFF
  • Front Panel e-Stop Button Emergency Shut-Down
QCW and modulation
  • Pulse Width Range: 30 μs to CW, 10%-90%
  • Includes Integrated QCW Pulse Generator
  • QCW Trigger: Internal Pulse Generator or External
  • Modulation Input: BNC, Digital (TTL) or Analog, 10kΩ Impedance
  • ---------------------------------------------------------------------------------------------
  • External Modulation Input Voltage Range: 0 ~ 4 Volts
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
auxiliary functions and connections
  • Interlock Status Indication (12 V, 100 mA)
  • Laser On/Off Status Indication (TTL; On = High)
  • System OK Status Indication (TTL; Good = High)
  • External 5V Reference Output
  • Multiple Auxiliary Analog and TTL Signal Ports
  • RS232 Connections
  • Pilot Laser Output
  • External Cooling Fan Output
  • External Temperature Sensor Input
  • External Safety Interlock Connector
User INTERFACE and Connectors

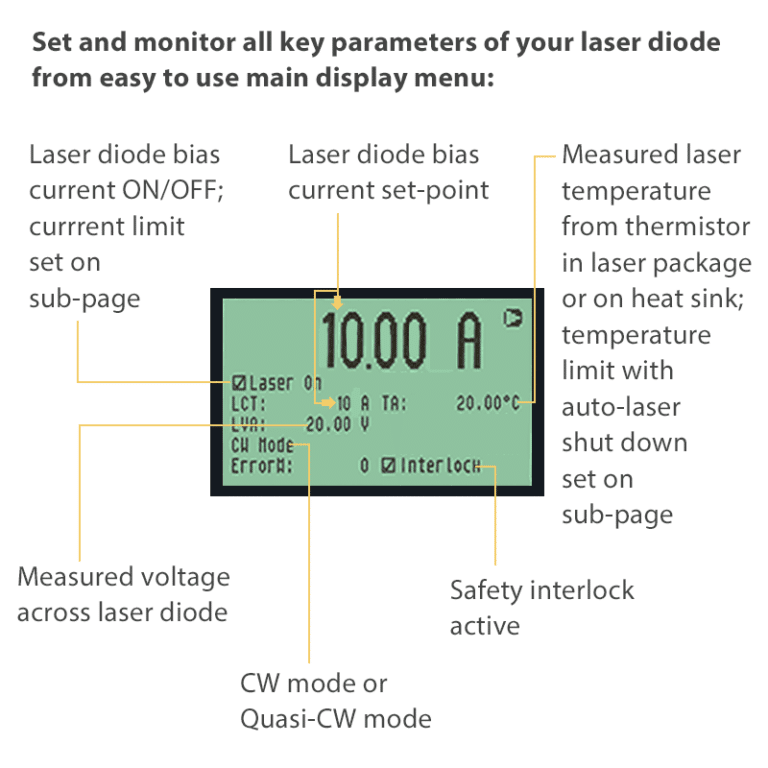

  • Front Panel: Alphanumeric LCD with Key Pad
  • RS232 Standard, SubD-9, Female
  • USB Optional: $95.00 (Option SVC-USB)
  • LabView Drivers Included
  • Laser Diode Connector: SubD-13W6, Female Type
  • Auxiliary Functions Connector: SubD-25 female
  • Safety Interlock: Jack Connector, Stereo 3.5mm
DIMENSIONS AND POWER INPUT
  • Power Input: Universal 100V ~ 240 VAC, 50/60 Hz
  • Dimensions: 89 mm (H) x 482 mm (W) x 266 mm (L)
  • Chassis Height: 2U (Standard Rack-Mount Units)
Recommended Accessories
  • acc-417 USB-RS232 Converter

Product Overview:

100 Amp, 30V Laser Driver Overview

The high power LDI-880 drivers offers a current range of 100 amps at a compliance voltage up to 30 volts. These high power drivers were designed to safely bias laser diode bars and arrays connected in series, laser diode stacks and other multi-emitter devices. The drivers feature multiple levels of built-in laser diode protection which have been optimized for laser bars and arrays. They are used to safely power the newest generation of pump lasers from companies such as Jenoptik, Northrop Grumman CEO and Coherent.

Laser Diode Driver Key Features

These drivers feature a user programmable soft-start ramp of the bias current to the laser diode. The factory sets the ramp time to 300 milliseconds as the default, but the user can adjust this time period from one millisecond up to tens of seconds. This current ramp-up and ramp-down function is designed to protect the laser from thermal shock during power-up and power-down sequences. In addition to CW mode, these drivers offer a Quasi-CW / pulsed mode and have an on-board function generator. Pulse widths as narrow as 30 microseconds are achievable.

Laser Diode Bar and Array Protection Features

The driver offer standard laser driver protection features such as current limit and power surge clamps to make sure that your laser diode is protected at all times. The LDI-880 also has AC line filters and a fast response to shunt the current in the event of an open-circuit. Additionally, these drivers offer a user programmable soft start current ramp to reduce the possibility of thermal shock to the bar or array device under test.

User Interface

The -880 features front-panel controls for fast and simple setup, and includes an RS232 interface with LabView drivers. An optional USB digital interface is available; inquire for details on ordering the USB control option.

Rear Panel Connectors and Interface

The driver utilizes a high current rear panel connector, and there are multiple cabling options available to ensure reliable connection to your device under test.

*Compliance Voltage Range: the maximum output power with 110VAC input is 2kW (ie 100A @20V); maximum output power with 230VAC input is full range specification 3kW
