TEC Controller OEM/EVM Board MOT701 - XXTEC

$92.00   ships: 3 days | item#: RLS/MOT701-XXTEC

Key Features
  • Supports MOT700x-xx and MOT3000-25 TEC Controller modules
  • 3.3V to 5V operation
  • Stand alone or host-controlled
  • Complete evaluation and verification solution
  • Ready to be used in your system
  • Fully RoHs compliant

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/MOT701-XXTEC
PRICE $92.00
MOT701_XXTEC
  • ±2A, ±2.5A, or ±3A Maximum TEC Current
  • Temperature Stability Better than ±0.002°C
  • Adjustable TEC Voltage Limit
  • Independent Cooling and Heating Current Limit
  • Voltage Programmable TEC Current Set
  • Slow Start Circuit for TEC Protection
  • Very Low Noise and Low Ripple Design
  • TEC Current Monitor
  • TEC Temperature Monitor
  • Over-temperature and Under-temperature Alarm
  • Precision Reference Voltage Output
  • Low Power Consumption
  • Small Footprint
  • Full RoHS compliant

Product Overview:

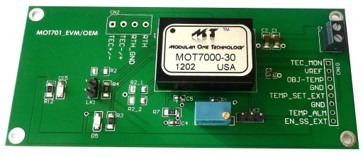

The MOT701_OEM is designed to allow the user to quickly evaluate and implement a Thermoelectric Cooler (TEC) design based on the MOT700x and MOT3000-25 series TEC controller modules. The board contains all required components other than the Thermoelectric cooler (TEC) itself. The OEM can be used standalone utilizing on-board potentiometers to set target temperature or Host controlled using external DACs. Connection points are provided which can be used for monitoring object temperature, output current and temperature alarm status, as well as providing external control of temperature and module enable functions.
