150A Switch-Mode QCW Laser Diode Driver
- 140V Compliance Voltage
- Laser Diode Array Current Source

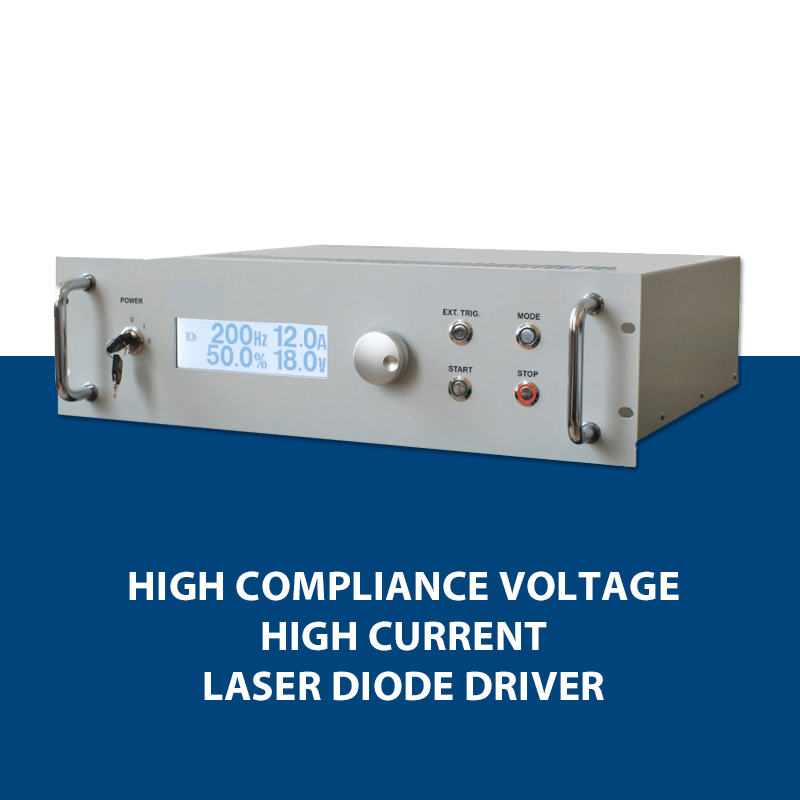

  • 150A QCW Switch Mode Laser Diode Driver

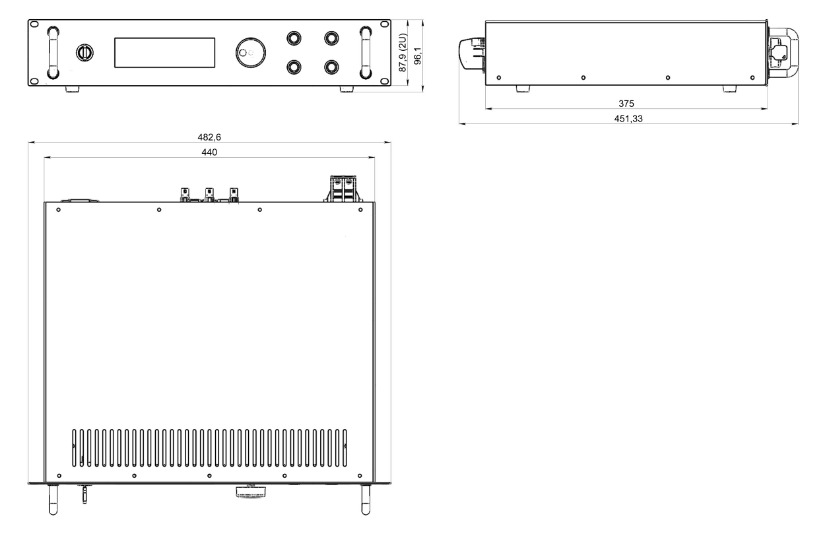

  • QCW Laser Diode Driver Dimensions
  • Multiple Laser Diode Driver, QCW High Power

$3500.00
sku / item#: RLS/SF306
ships: Request

Key Features
  • Pulsed Output Current up to 150 Amps
  • Variable Pulse Width: 50µs to 1000µs
  • Laser Diode Voltage up to 140 VDC
  • Pulse Rise time <60µs
  • Easy Control from the Front Panel or PC with RS232 Interface
  • Laser Diode Protection: Current Limit, Duty Cycle Limit and Safety Interlocks
  • Can Be Used for Multi-Channel System
  • Single Phase 220VAC Power Input

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/SF306
PRICE $3500.00
Specifications
  • Output Voltage: 0 - 140 V
  • Output Current: 1 - 150 А
  • Pulse Rate: 1 - 500 Hz, Single Pulse
  • Pulse Duration: 50 µs - 1000 μs
  • Rise Time: <60 μs
  • Fall Time: <60 μs
  • Power Input: Single Phase 220 VAC, 50Hz
  • Air cooled
  • Average Output Power: 0.4 kW
Additional Information
  • Values Are Limited by Average Power:
    F * V * I * τ ≤ P (pulse mode)
    V * I ≤ P (CW mode)
  • With a Length of Laser Diode Power Wire is Not More Than 2m
  • Dimensions: 440mm x 88mm x 345 mm, 2U high
  • Weight: 10 kg
  • Remote Interface: RS232
  • Refer to Datasheet for Additional Specifications

Product Overview:

Switch-Mode High Power Laser Diode Driver Overview

This high power laser diode driver is designed to drive high compliance laser stacks and arrays. Designed and optimized for use in experimental, institutional, and industrial applications, the driver has current limit, duty cycle limit, and safety interlocks to help protect the laser diodes and the user.

The rack-mounted controller includes an RS232 interface and PC-based software for control. The front-panel provides easy control of the driver, with a large LCD display and adjustment knob .

Versatile Options Increase Driver Functionality

Multiple high power laser diode drivers can be used to build the Multichannel Electrical Power Supply System (MEPSS). The MEPSS can operate as many as 20 laser diode drivers, and is designed for applications such as research into inertial confinement fusion, laser-matter interactions, laser diode array testing, and other cases where multiple high power lasers are controlled simultaneously.

The laser diode driver can be factory-equipped with a high power temperature controller for laser temperature stabilization; inquire for details and options.

Additionally, the flexible internal architecture allows for factory customization to suit customer requirements for a specific load. Optionally, the driver can be equipped to operate in a temperature range of –40°C / +50°C.
