Laser Synchronization / Pulse Delay Generator

  • pulse delay generator TOMBAK
  • ultra fast laser pulse picker and pulse delay generator
  • pulse delay generator frequency divider
  • laser synchronization pulse delay generator
  •    Laser Synchronization / Pulse Delay Generator

$1495.00   Ships: 2 Weeks | Model ALPHA-TOMBAK

Key Features
  • Optimized for Laser Timing & Control Systems
  • Laser Pulse-Picking up to 200 MHz Input / 20 MHz Output
  • Stand Along 20 MHz Pulse Generator
  • 80 Picosecond Jitter
  • 2 Nanosecond Pulse Resolution
  • USB Interface with Control Software
  • 150 MHz Voltage Level Converter
  • Manufactured by Alphanov, Fulfilled by Laser Lab Source Worldwide

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Add to Cart or Buy Now

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL ALPHA-TOMBAK
PRICE $1495.00

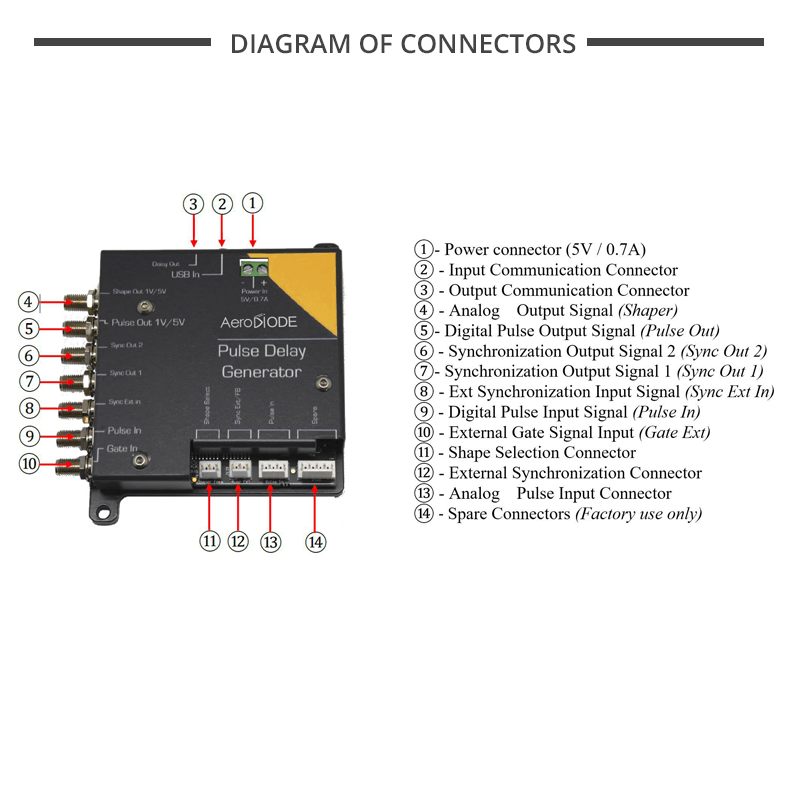

Pulse Delay Generator Output (SMA connector)
  • Pulse Delay Resolution: 100 psec
  • Pulse Width Resolution : 2 nsec
  • Adjustable Pulse Delay Range: 100 psec to 1000 sec
  • Adjustable Pulse Width Range: 5 nsec to 1000 sec
  • Coupling Impedance: 50 Ω
  • Adjustable Output Level: 1V, 3.3V, 5 V TTL
  • Rise Time: 1 nsec (typical)
  • Jitter: <80 psec RMS (up to 100 nsec)
Pulse Delay Generator Input (SMA connector)
  • Input Voltage: 0V to 3.3V

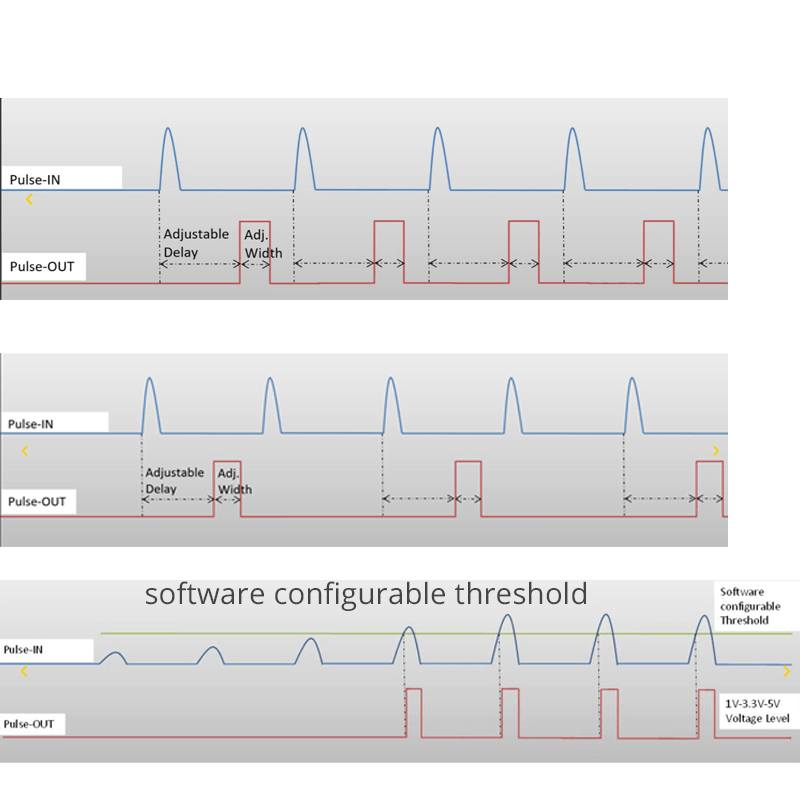

  • Threshold: 0 to 3.3 VDC software adjustable (Pulse-In)
  • Max Input Rate: 200 MHz
  • Insertion Delay: 70 nsec
Sync External / Gate Input (SMA connector)
  • Input Voltage 0 to 3.3 V
  • Threshold: 1.2 V
  • Max Input Rate: 20 MHz
Stand-Alone Pulse Generator Output
  • Repetition Rate :0 to 20 MHz
  • Programmable Duty Cycle
GENERAL

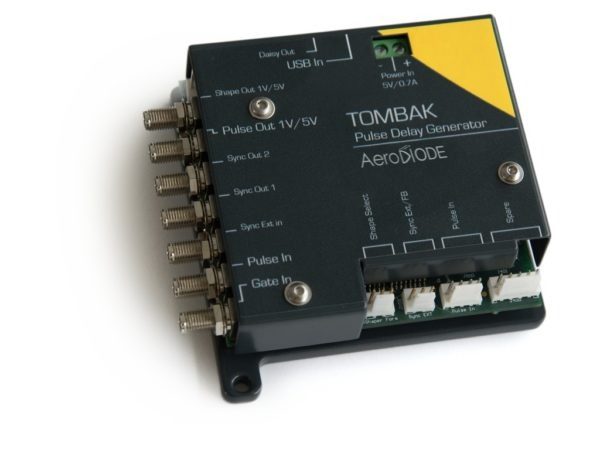

  • Small Form Factor: 104mm x 89mm x 27mm
  • Power Adapter: +5 VDC/500 mA (included)

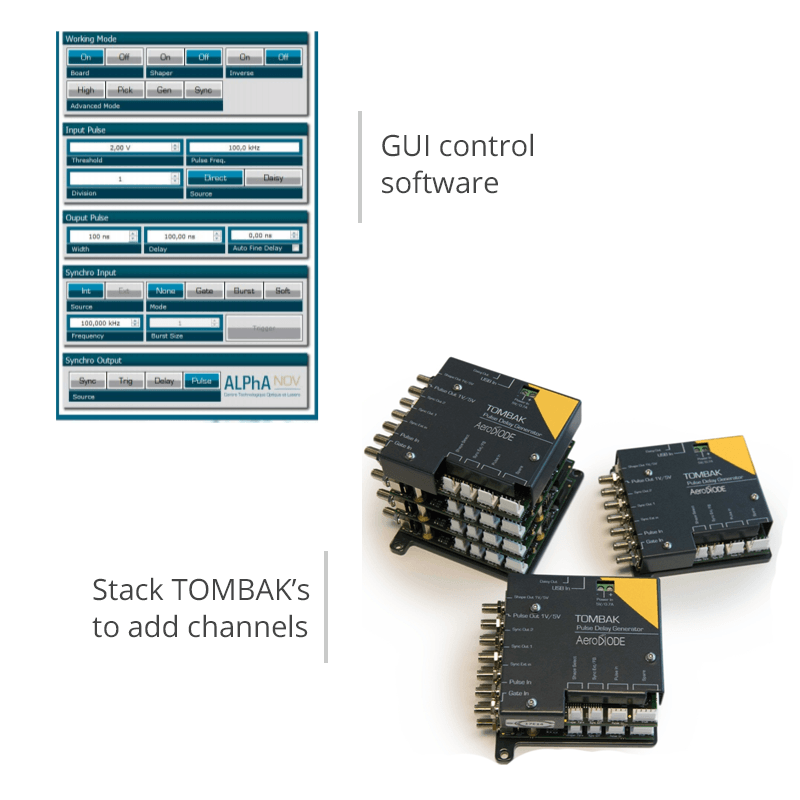

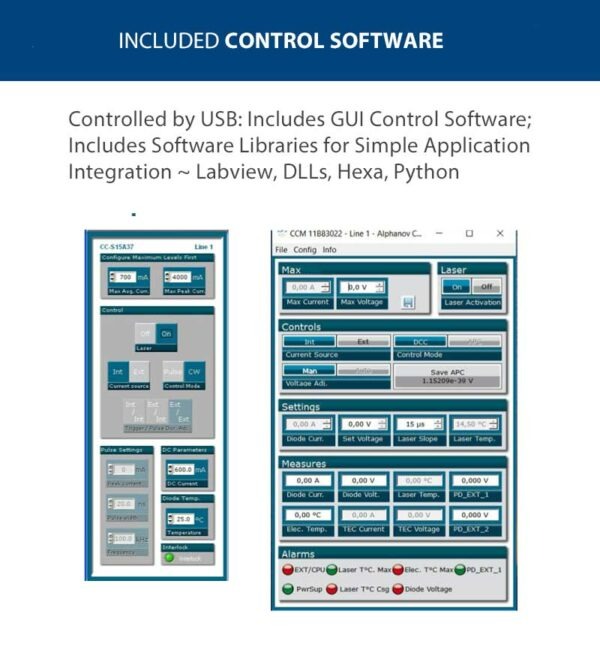

  • USB 2.0: Cable Included, Software & GUI Included
  • Multi-Channel: Multiple Units Can be Controlled from a Single USB, Single Power Supply, and Single Synchronization Input Signal

Product Overview:

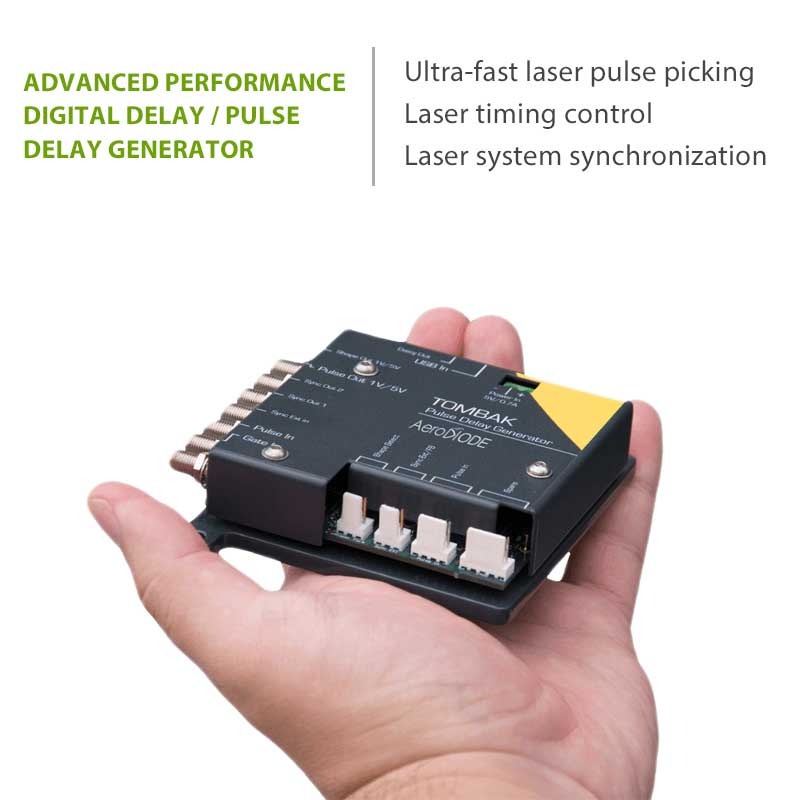

These pulse delay generators and pulse drivers are precision, multi-functional and high performance instruments that enable the user to consolidate multiple functions into one affordable compact device. They can be used as a stand alone laser diode pulse driver, or as a pulse delay generator for digital synchronization of laser timing systems. This unit is an ideal choice for generating high frequency pulses, delays and bursts in laser timing and control applications. It is used extensively in testing and as a timing control instrument for electronics and lasers. These units can be used as a stand-alone laboratory testing product or for OEM integration into your product.

Applications of these pulse delay generators include component testing, laser timing control, laser pulse-picking and laser diode pulsing.

The TOMBAK series digital delay / pulse generator modules provide precise delays for synchronizing, triggering and delaying precisely timed events. These modules deliver less than 80 picoseconds of RMS jitter abd are used in applications that require processes and controls based on precision electronic timing. A 150 MHz voltage level converter and 20 MHz standalone generator with a USB interface are backed by a two year standard product warranty.
