Network Hub for 8 x Laser Diode Control & Mount Modules; Expandable to Control up to 128 Modules

  • nh8-laser-diode-hub
  • nh8-diagram
  • nh8-image
  • nh8-software
  • nh8-dimensions

$369.00
sku / item#: NH8
ships: In-Stock (USA)

Key Features
  • PC connection via USB
  • Easy to control multiple driver modules; ability to connect up to 8 driver modules to hub via UART
  • Ability to connect up to 8 drivers to hub via UART
  • Ability to interconnect hubs to network up to 128 devices
  • Ability to connect additional devices via RS-485
  • Networking via MODBUS protocol

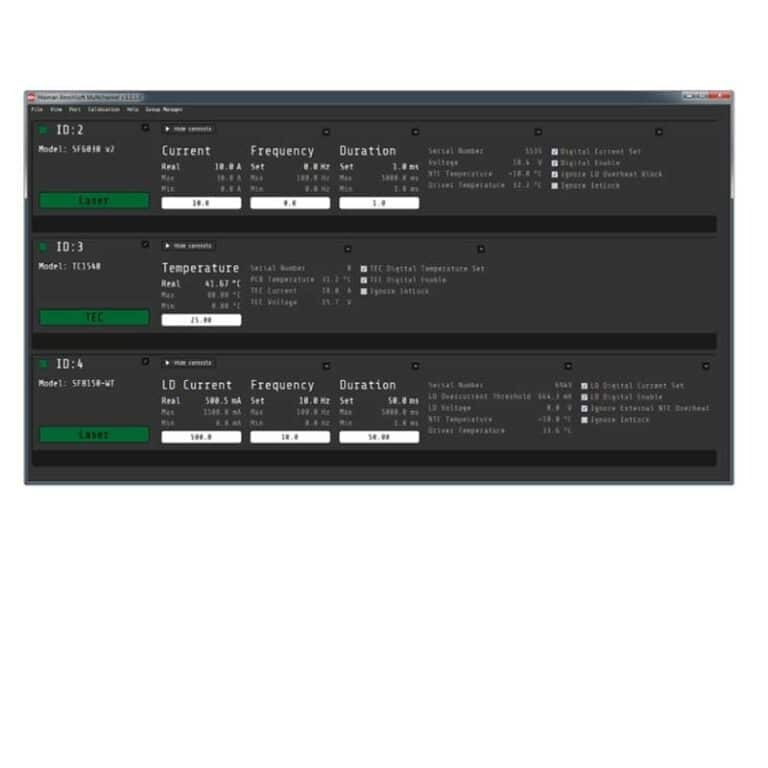

  • Includes free multichannel software GUI
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL NH8
PRICE $369.00

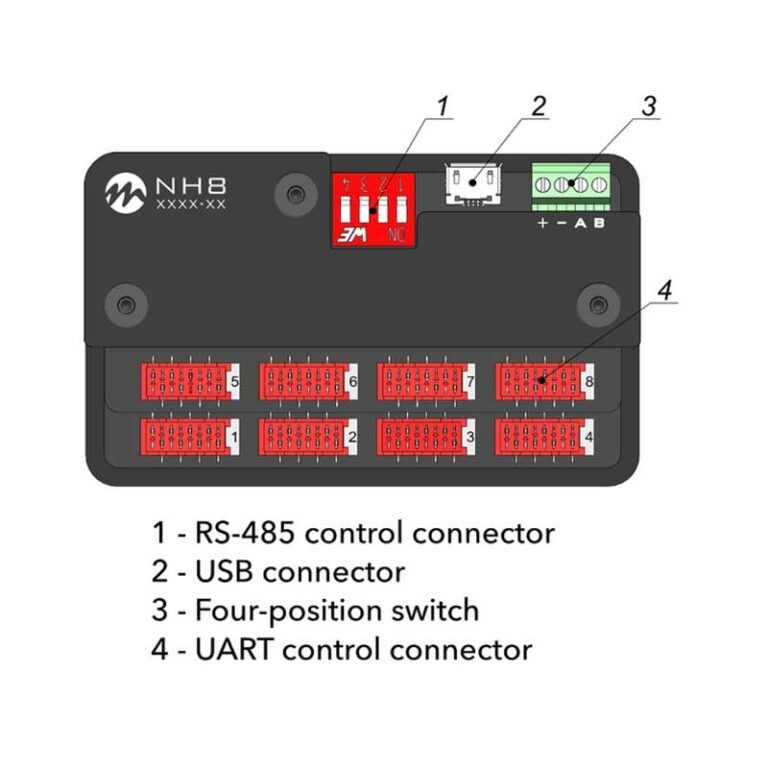

USER INTERFACE
  • UART (device connection)
  • RS-485 (device connection, hub interconnection)
  • USB (PC connection)

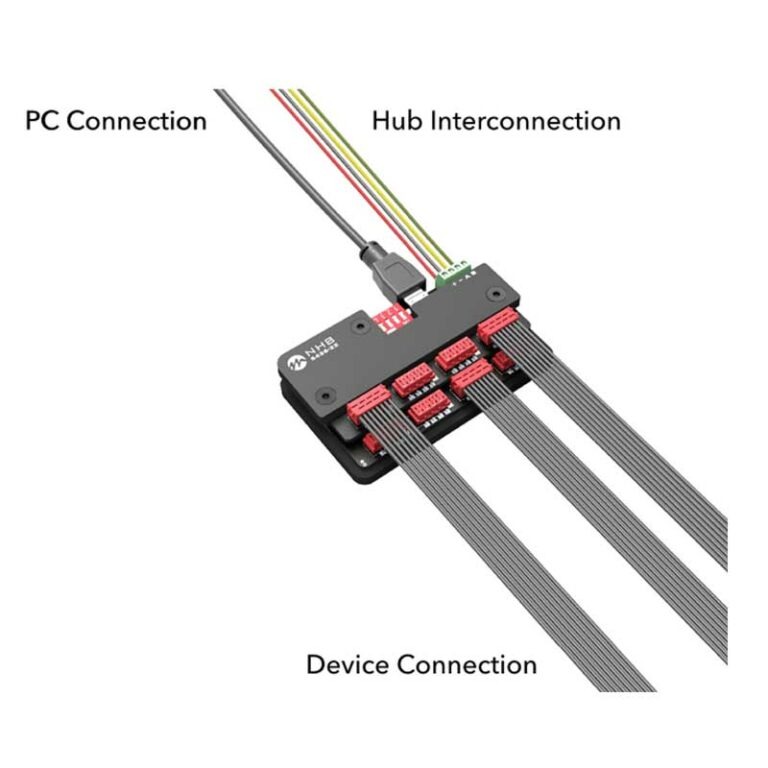

CONNECTION & NETWORKING
  • Connection up to 8 drivers to one hub
  • Networking up to 128 devices (up to 64 with multichannel soft)
  • Networking via MODBUS protocol
DIMENSIONS AND WEIGHT / POWER INPUT
  • USB 5V Input
  • External 5V Input

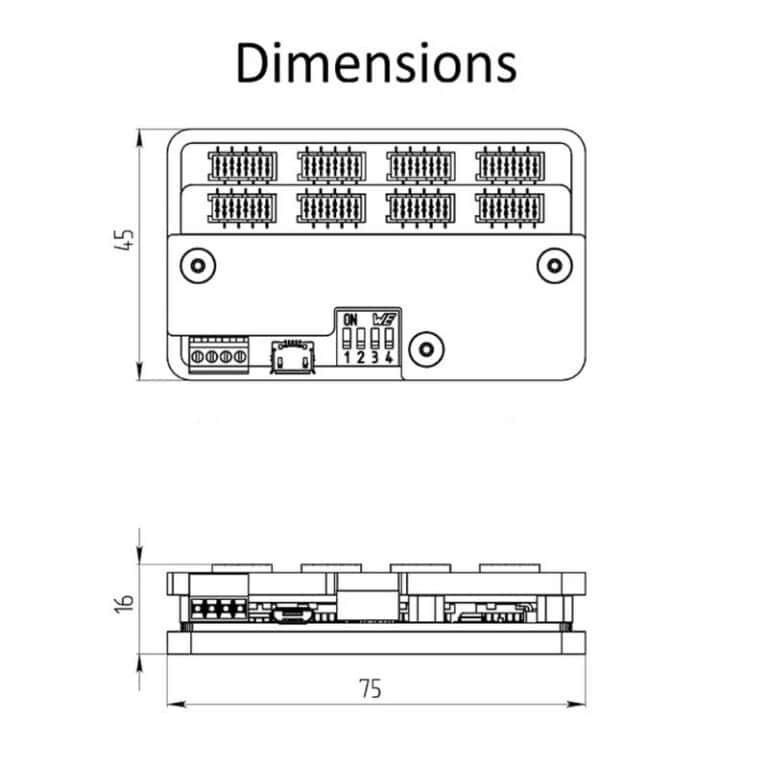

  • Dimensions 75 x 45 x 16 mm
  • Weight: 41 g
  • Includes 8 x 50 cm ribbon cables with two 8-pin connectors
WARRANTY
  • 1-year full warranty

Product Overview:

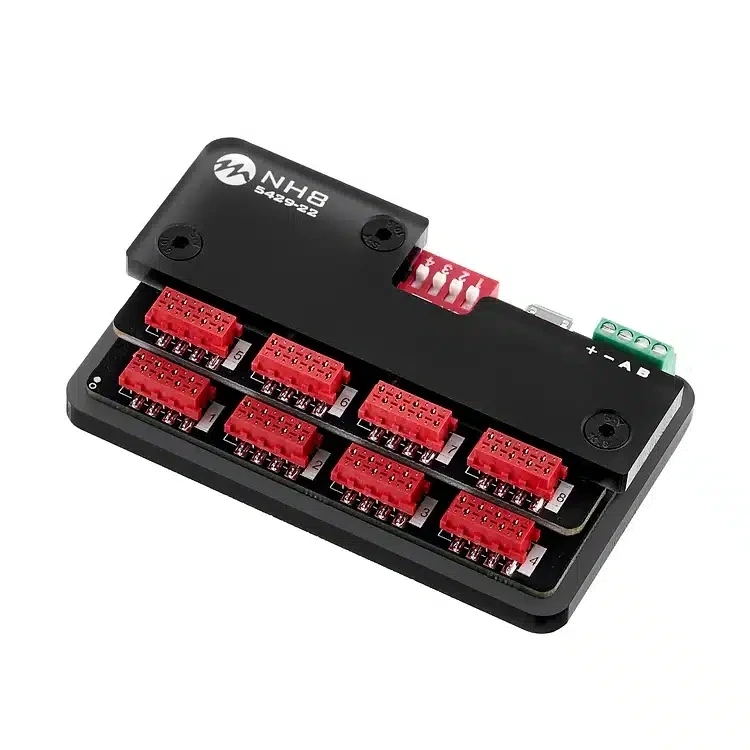

The NH8 network hub is a user-friendly solution designed to control multiple laser diode driver devices within a network. With the ability to interconnect hubs, the NH8 provides networking for up to 128 devices. The NH8 hub supports UART, RS-485 connection options, networking is provided by the MODBUS protocol. The hub connects to a PC via USB interface. It provides a comprehensive and efficient solution for control and connecting multiple drivers and TEC controller devices within a networked environment.
