Eight Channel Laser Diode Controller Electronics and Mounting Module
- Independent CW / Pulsed-Mode Control

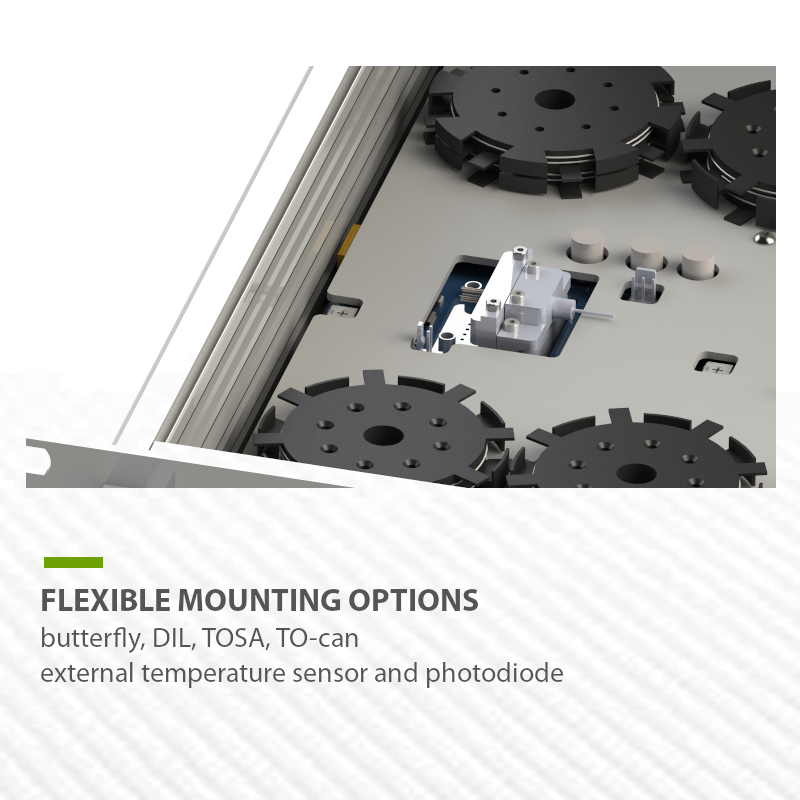

- Suitable for Butterfly, DIL, TOSA, TO-Can

  • Eight Channel Laser Diode Controller
  • multi-channel-laser-diode-driver-aerodiode
  • Fiber-Coupled Laser Diode Controller Multichannel
  • Multichannel Pulsed Laser Diode Controller
  • 5ns Pulsed Laser Diode Controller Mounting System

$42995.00
sku / item#: CCS-MULTI-8 / Control and Mount Module
ships: Request a Quote for Current Ship Date

Key Features
  • Eight Channel Laser Diode Control & Mounting Module, Self-Contained and Rack-Mounted
  • Independent Channels Drive 2500mA CW Current -or- 4000mA Pulsed Current
  • USB Interface, Includes Programming Tools, Software Suite, DLL Library, and GUI
  • Offered by AeroDIODE, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL CCS-MULTI-8 / Control and Mount Module
PRICE $42995.00
LASER DIODE CURRENT SOURCE Specifications
  • Specifications Apply to All Channels Independently
  • CW Output Current: 0 mA - 2500 mA
  • Pulsed Current: 0 mA - 4000 mA
  • Adjustment Precision: 0.05 mA (@ 200 mA)
  • Current Stability: 0.01%
  • Compliance Voltage: 1 to 24 V (adjustable)

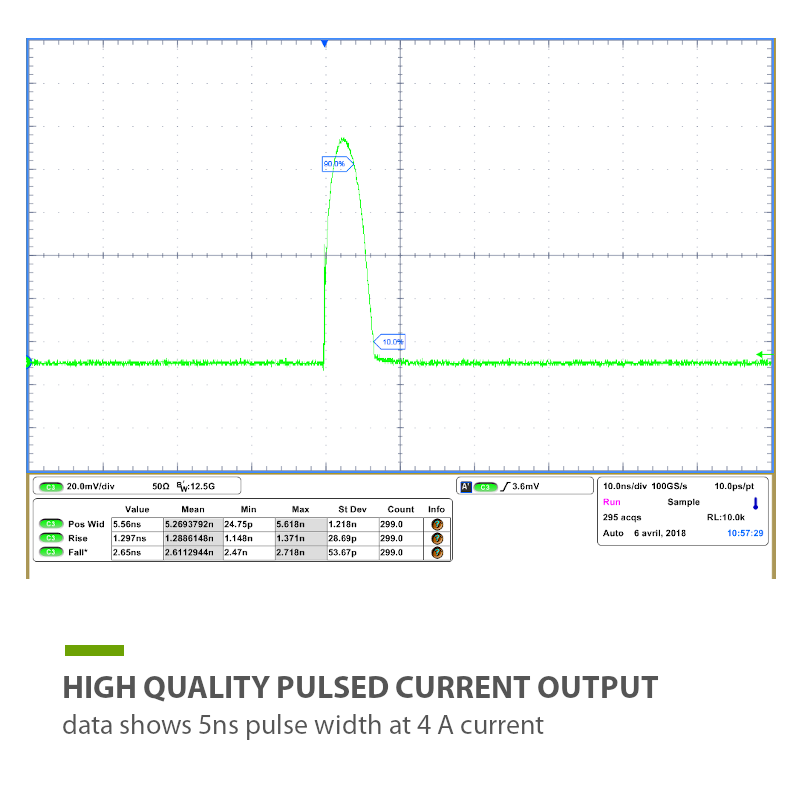

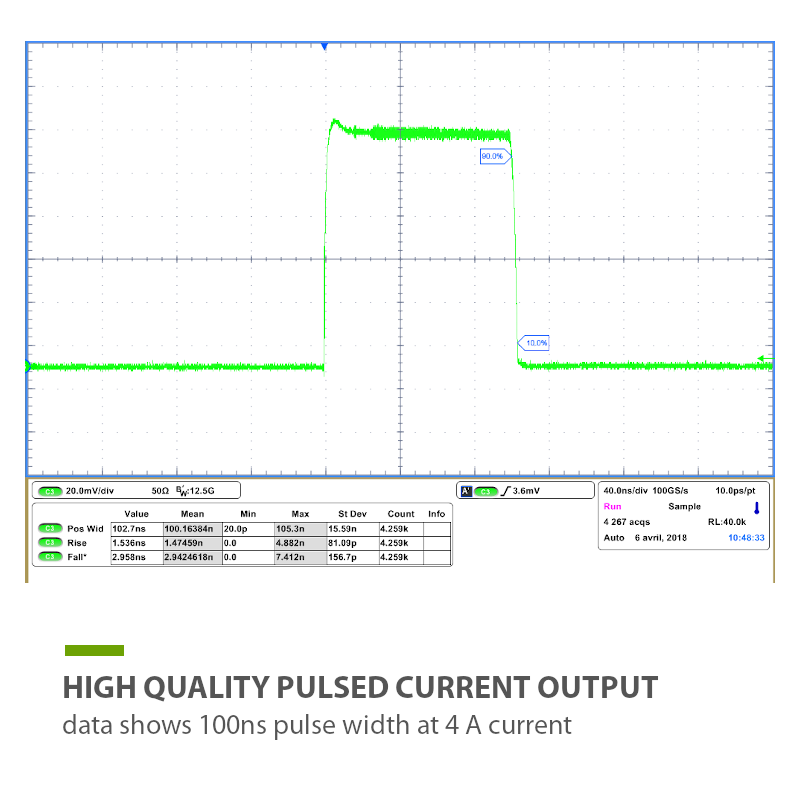

  • Pulse Duration: 1 ns to CW
  • Adjustable Pulse Overshoot down to 0%
  • External Photodiode Measurement on Each Channel
  • Adjustable CW Offset in Pulsed Output Mode
  • Internal / External Current Modulation
  • Pulsed Repetition Rate: 0 - 250 MHz
TEC CONTROLLER & MOUNTING SOCKET
  • Zero Insertion Force Mounting Socket with Clamping Arms
  • Low Thermal Resistance Anodized Aluminum Mount
  • Diode Chip Temperature Range: 0ºC to 90ºC
  • Temperature Sensor Compatibility: NTC Thermistors
  • TEC Control Loop Type: Bipolar
Laser Diode Protection
  • User Set Current Limit
  • User Set Temperature Limit
  • Safety Interlock
  • Soft-Start Ramp to Current Set-Point
  • Transient and ESD Surge Clamp
  • Fiber Management with Optical Power Sink
General Specifications

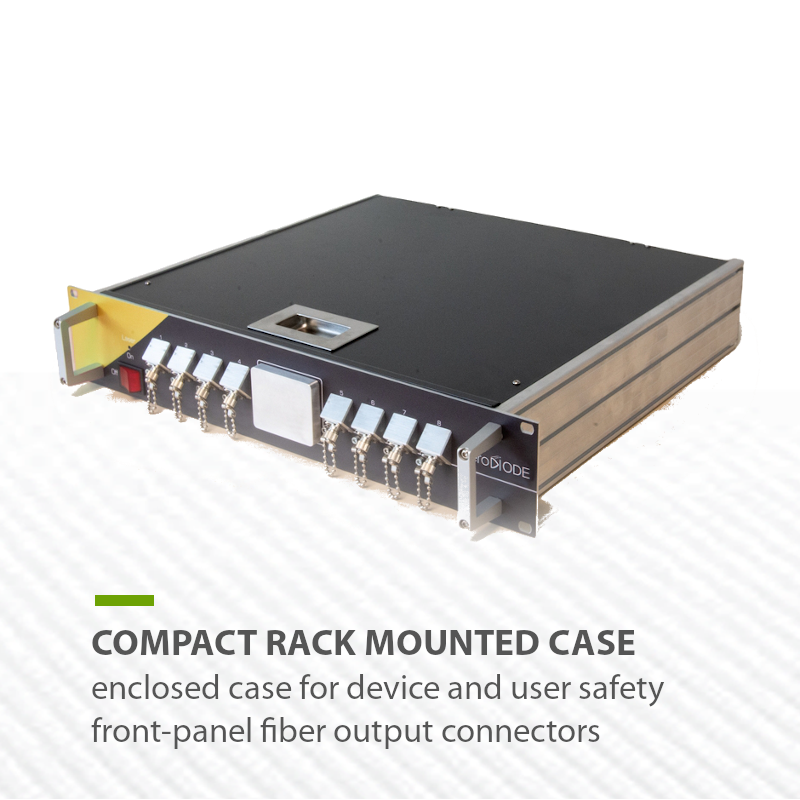

  • Dimensions: 2U Rack Height, 400 mm deep
  • Power Supply: +24 VDC, 8 A
  • PC Interface: USB with GUI and Control Software
  • USB Cable: Micro-Connector to Standard PC USB Connector Included

Product Overview:

Eight Channel Laser Diode Controller and Mounting System

This laser diode driver & temperature controller allows full independent control of up to 8 laser diodes from CW down to very short pulses. It includes several functions including a pulse generator and a precision and very low noise current and modulation driver.

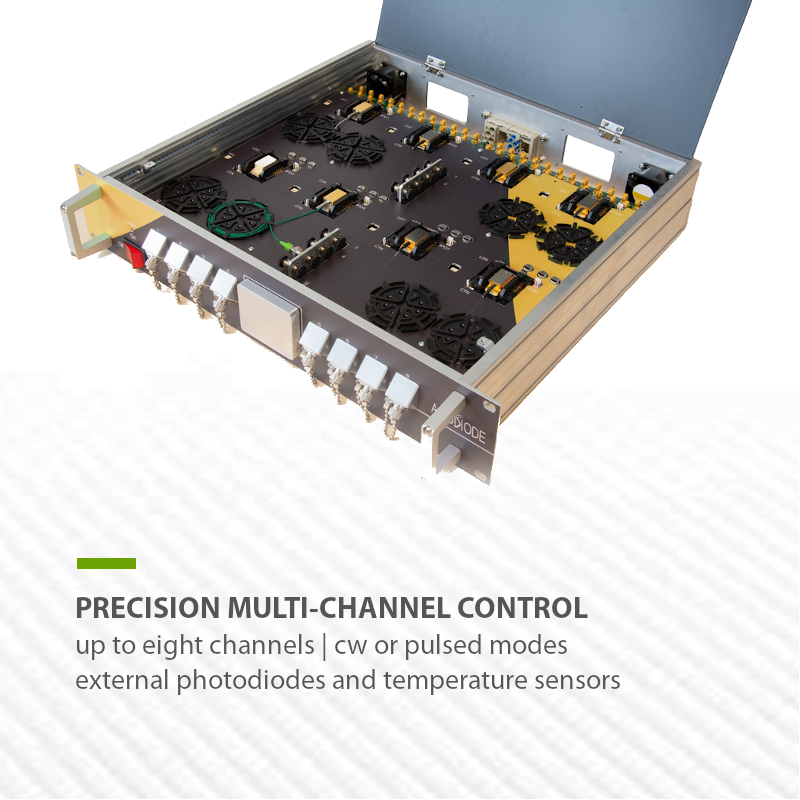

High Density, High Precision Control

This Laser Diode Driver is a precision module able to drive simultaneously and independently up to eight laser diodes in CW and Pulsed operating modes. The current level ranges up to 4 A in pulse mode, and 2.5 A in CW with a current resolution down to 0.05 mA. Fiber management fixtures are provided internally, and it is also compatible with any type of laser diode form factor. It is controlled by an easy-to-use graphical interface and contains more than 6 connectors per laser diode for various external analog input/outputs signals.

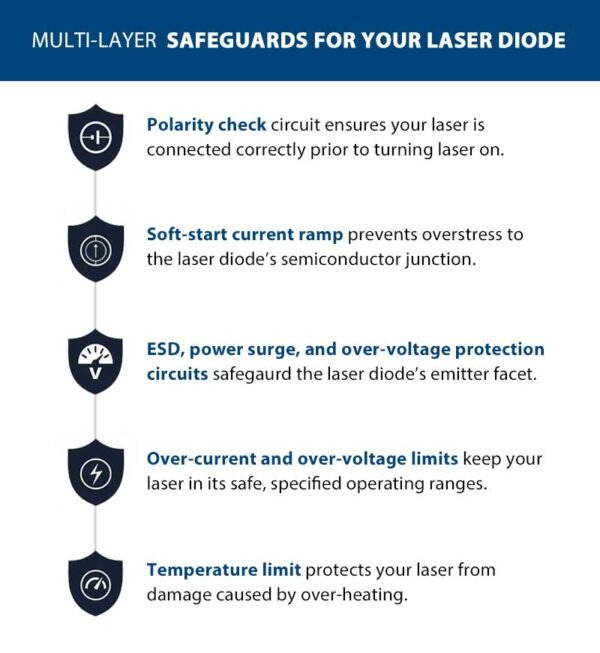

Comprehensive Laser Diode Protection

The integrated laser diode protection circuits protect the laser devices at all times. The user-set current limit and temperature limit clamp both the bias current and the operating temperature to prevent damage to the laser. Soft-start current ramp to the set-point protects the laser from the possibility of thermal shock or current surges.

Finally, the integration of the mounting socket directly with the current source eliminates the need for cables and connectors in the current path, which greatly reduces the likelihood of ESD damage to the laser from plugging and unplugging cables, and prevents external electronic noise affecting the drive current signal.

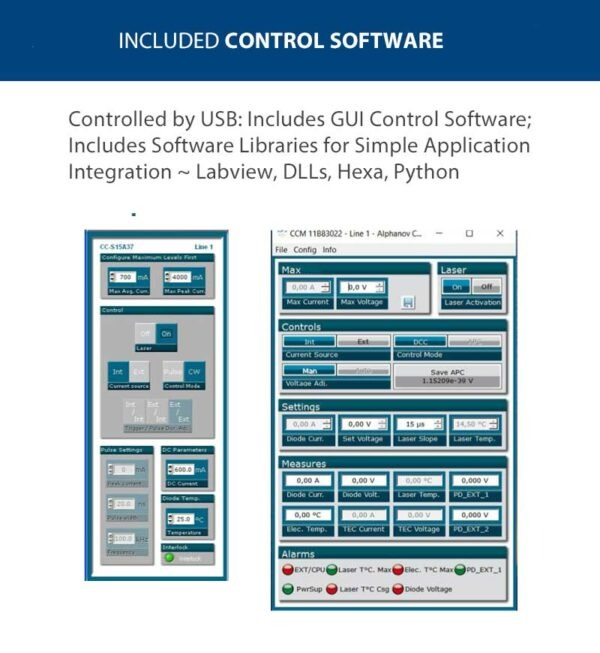

USB Interface and Versatile Controller Software

The controller is equipped with a USB interface, and delivered with easy-to-use GUI software. Several software control libraries are provided for custom control software development, including Labview, DLLs, Hexa, and Python.

Four Channel Controller Available

The same high precision CW / Pulsed laser diode controller performance is available in a 4-laser system, for smaller system requirements and at lower cost. Inquire for additional information, price, and lead time.
