Short-Pulse Picosecond Pulsed Laser Diode Driver
- 100 Picoseconds to 750 Picosecond Pulses
- 3 Amp Current Range

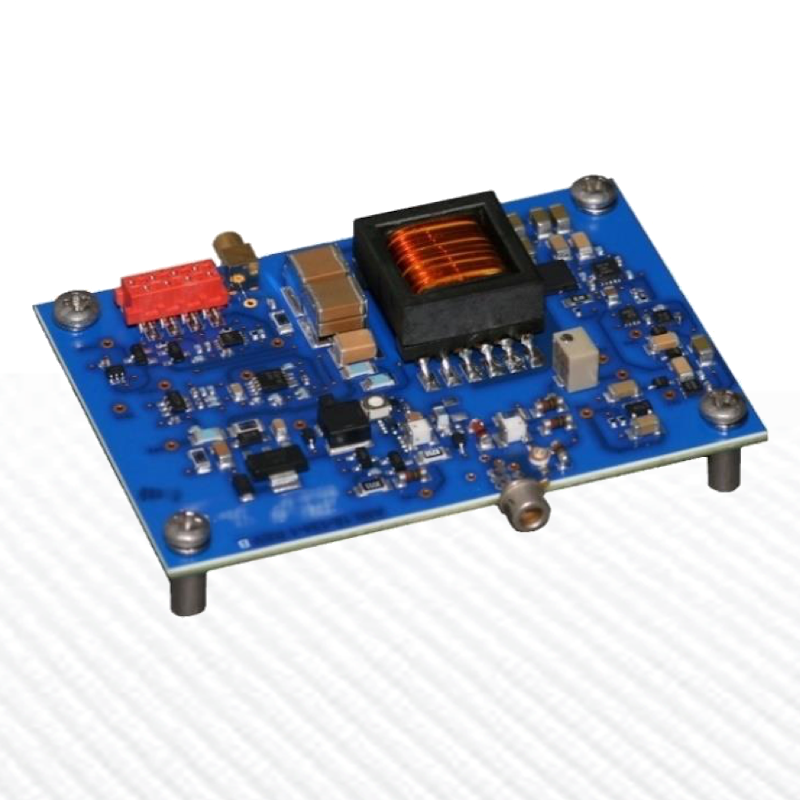

  • Picosecond Pulsed Laser Diode Driver

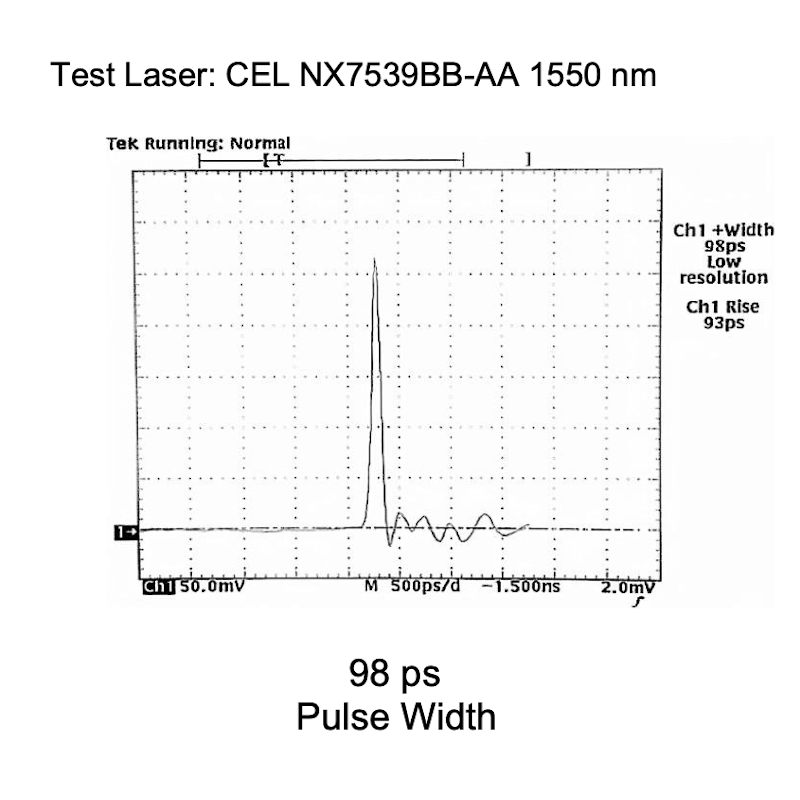

  • 98nm Laser Diode Pulse Performance

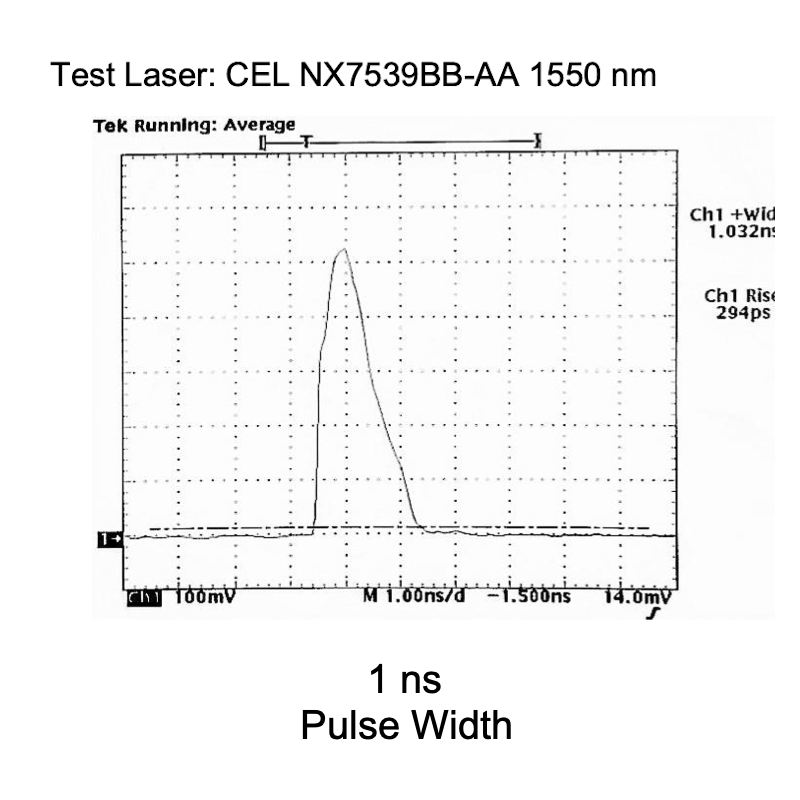

  • 1 ns Laser Diode Driver Pulse Performance

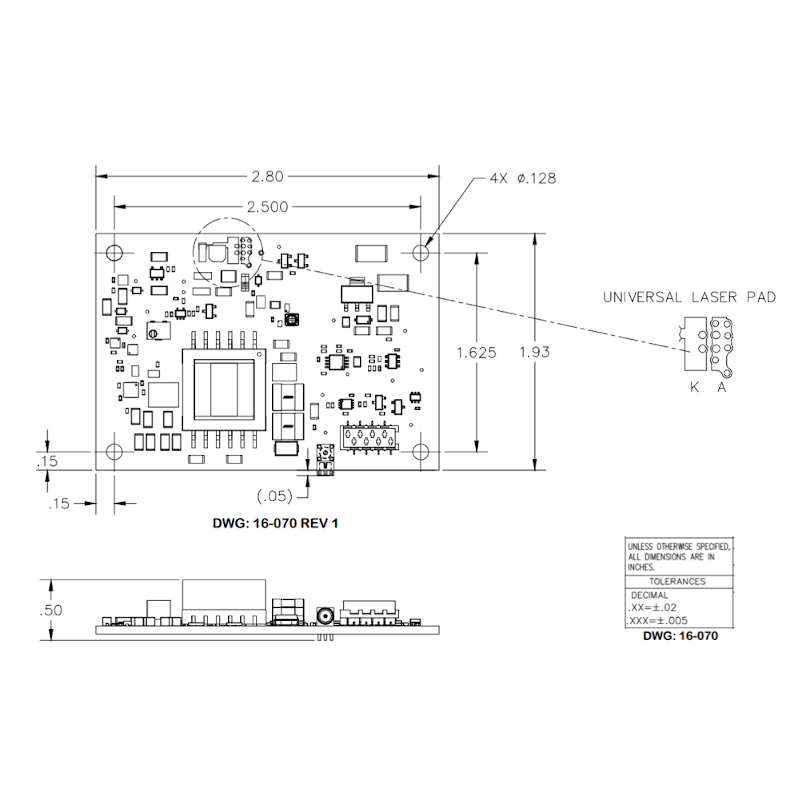

  • Analog Modules Model 767 Dimensions

Request Quote
sku / item#: Model 767
ships: Request a Quote for Current Ship Date

Key Features
  • Adjustable Pulse Widths 100 ps to 750 ps
  • Output Current up to 3 A
  • Compliance Voltage up to 10 V
  • Single Shot to 1 MHz Repetition Rate
  • 100 ps Optical Rise Time
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL Model 767
PRICE Request Price
General Specifications
  • Output Current: up to 3.0 A
  • Compliance Voltage: up to 10 A
  • Pulse Width: 100 ps to > 750 ps
  • Pulse Repetition Rate: Single Shot to 1 MHz
  • Power Supply Voltage: 4.75 V to 5.25 V
  • Power Supply Current: 1 A
  • Power Input Connector: 8 Pin TE Connectivity MicroMatch Connectors (188275-8)
  • Trigger Connector: MMCX Micro Coax Connector
  • Compact Size: 2.8" x 1.93" x 0.5"
  • Refer to Datasheet for Additional Specifications

Product Overview:

Picosecond Pulsed Laser Diode Driver Overview

AMI’s proprietary technology allows industry-leading adjustable pulse width performance from 100 ps to over 750 ps at up to 3.0 Amp. Output pulse amplitude and width are user adjustable via on-board potentiometers, while repetition frequency follows an external trigger signal from single shot up to 1MHz. Solder pads near the board edge accept the most common laser diode packages (3.8 mm, 5.6 mm, 9 mm, 9.5 mm, and TO-18) with various pin configurations and accommodate either parallel or perpendicular mounting to the PCB.
