Oven Industries, 200W Benchtop TEC Controller

Request Quote
sku / item#: RLS-01091
ships: *** This product is currently unavailable **

Key Features
  • Affordable 0.01°C Control & Measurement Temperature Controller
  • Front Panel Adjustable or PC Interface

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-01091
PRICE Request Price
Specifications
  • Set point resolution: 0.01°C
  • Temperature measurement resolution: 0.01°C
  • PID Bandwidth: 0.1 to 50°C
  • PID Integral: 0 to 10 repeats per minute
  • PID Derivative: 0 to 10 minutes
  • Output Current: 10 Amps (max)
  • Output Voltage: 20 VDC (max)
  • Thermistor and RTD sensor input
  • High T, low T and no alarm set via GUI
  • Isolated RS232 communication port
  • Front Panel VF Mounted Display

Product Overview:

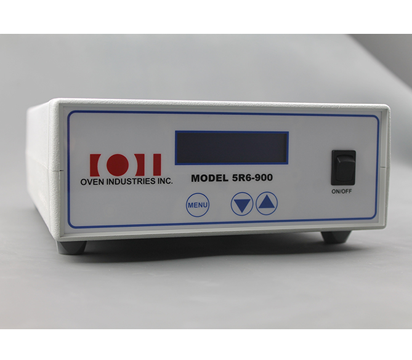

The 5R6-900 is a very affordable benchtop laser diode TEC controller that delivers high temperature set-point resolution and control stability, as well as up to 200W of power. This unit offers full PID control (by GUI) to precisely control your device under test. On board non-volatile memory stores your set up information so that the unit can be disconnected from the PC and still control the TEC element. With up to 10 Amps and 20 Volts of power to the cooler, the 5R6-900 ensures that high heat load devices can be safely operated and protected from thermal damage.
