Pulsed Laser Diode Driver with the Ability for the User to Customize Pulse Shapes;
Picosecond ~ Nanosecond Pulses

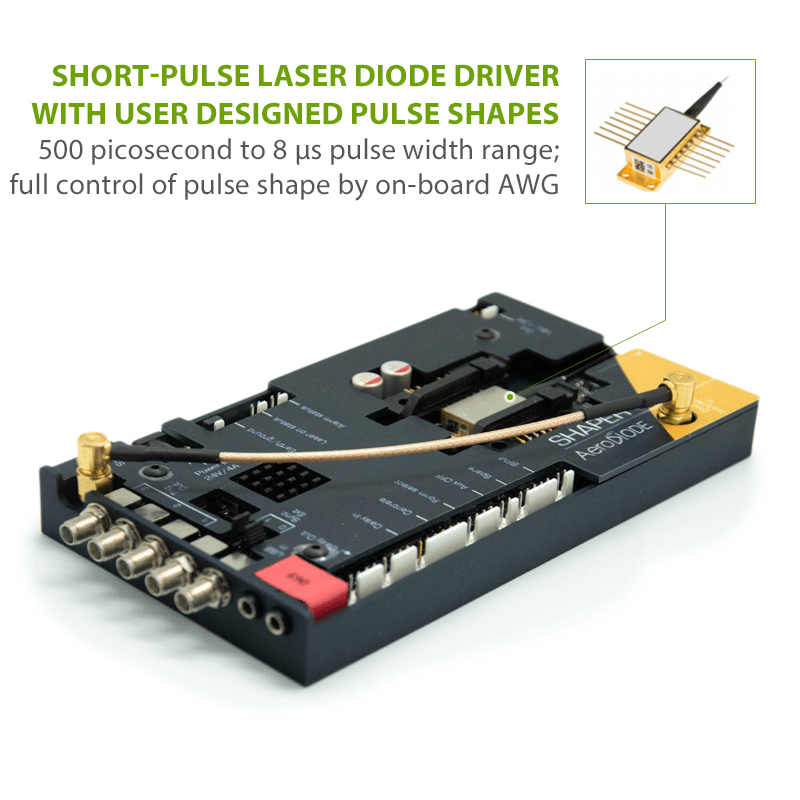

  • Pulsed Laser Diode Driver Main Image
  • Pulsed Laser Driver
  • Laser Diode Pulse Driver
  • Laser Diode Pulse Driver Oscilloscope Graphs
  • Laser Diode Pulse Driver Output

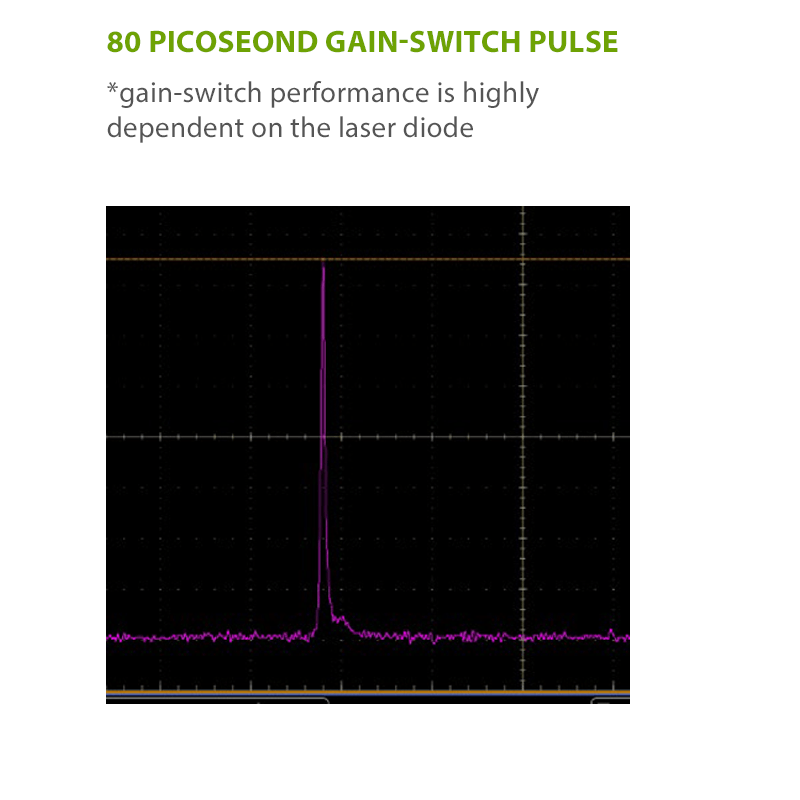

  • nanosecond pulsed laser diode driver
  • Laser Diode Pulse Driver Schematic
  • Laser Diode Driver Pulse Schematic

$5995.00
sku / item#: CCS-PULSE-SHAPER
ships: 3 weeks

Key Features
  • User Designed Pulse Shapes; On-Board Arbitrary Waveform Generator (AWG) for User Customizable Pulse Shapes
  • Pulse Width Range: 500 Picoseconds to 8 µsec
  • 0 to 1.6 Amp Pulsed Output Current, 0 to 20 MHz Repetition Rate
  • Includes Laser Diode “Gain-Switch Peak” Suppression Mode
  • Integrated Pre-Configured Butterfly Mounting Socket and Integrated TEC Controller
  • Built-in Pulse AWG, Internal or External Triggering
  • Two Models Available: Direct or External Modulation
  • USB Interface with Intuitive GUI Control Software
  • Offered by AeroDIODE, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL CCS-PULSE-SHAPER
PRICE $5995.00
Internally Generated Pulses
Pulsed Current and Pulse Shaping Specifications
  • Peak Current Range: 0 Amps - 1.6 Amps
  • User Adjustable Pulse Width Range: 500 psec ~ 8 µsec
  • Repetition Rate Range: 0 ~ 20 MHz
  • Pulse Shaping Timing Resolution (max): 500 psec
  • Pulse Shaping Current Resolution: 30 µA
  • Laser Diode Compliance Voltage Maximum: 4.8 Volts
  • Current Set-Point Resolution: 16 bit ADC
Externally Generated Pulses
AOM / EOM Pulsed Current and Pulse Shaping Specifications
  • External Pulse Peak Acceptable Current Range: 0 - 3.5 Amps
  • AOM / EOM Acceptable Pulse Width Range: 1 nsec - CW
  • AOM / EOM Pulse Shaping Timing Resolution: < 500 psec
  • Output Voltage (Factory Configured): 1 Volt (50 Ohm) / 5 V (High-Z)
  • External Pulse Timing Resolution (Delay/Pulse-Width): < 1 nsec
Electrical Synchronization
Pulse Delay Generator Outputs
  • Number of Outputs: 3
  • Synchronization Signals Duration: 0 - 10^9 nsec
  • Synchronization Signals Resolution: 1 nsec
  • Output Voltage: 0 - 3.3 Volts (50 Ohm)
TEMPERATURE CONTROLLER & BUTTERFLY MOUNT
  • TEC Current Range: +/- 1.5 Amps
  • TEC Voltage Range: 3.8 Volts
  • TEC Controller Compatible with NTC Thermistor Sensors
  • Zero Insertion Force Mounting Socket for 14-Pin Butterfly Packages
  • Standard Product Configured to Type 1 Package Pin Configuration (Type 2 Available on Request)
USER INTERFACE
  • USB with Control Software GUI
  • DLL Library for C programming and Hexadecimal Protocol
  • Analog (0-3.3V) Remote Signal Peak Power Adjustment
  • UART
POWER SUPPLY AND DIMENSIONS
  • Power Supply Included
  • 162 mm (L) x 92 mm (W) x 20 mm (H)

Product Overview:

Design your Own Pulse Shapes to Optimize your Systems Performance:

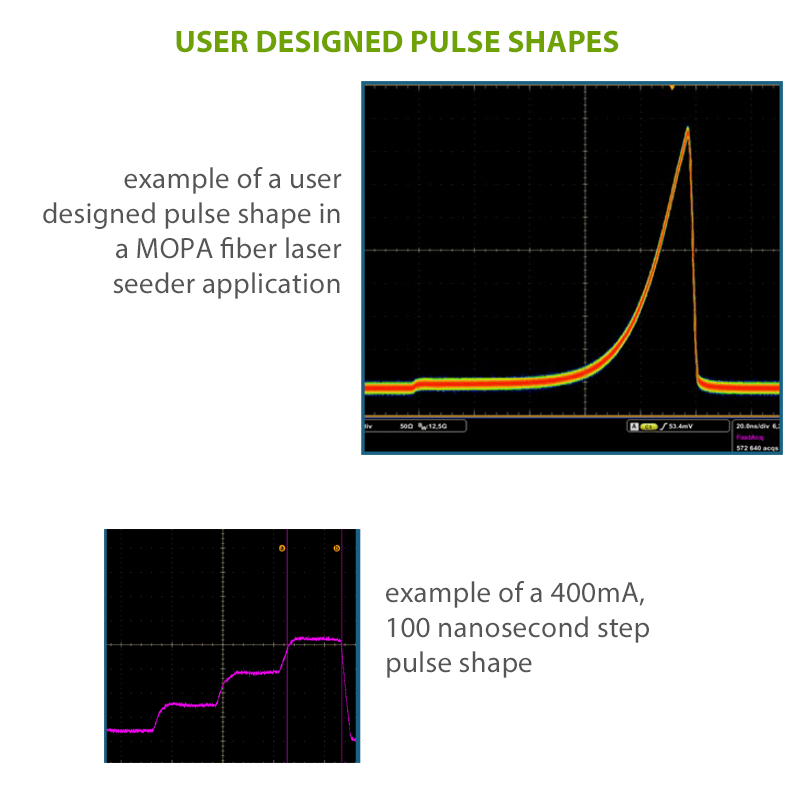

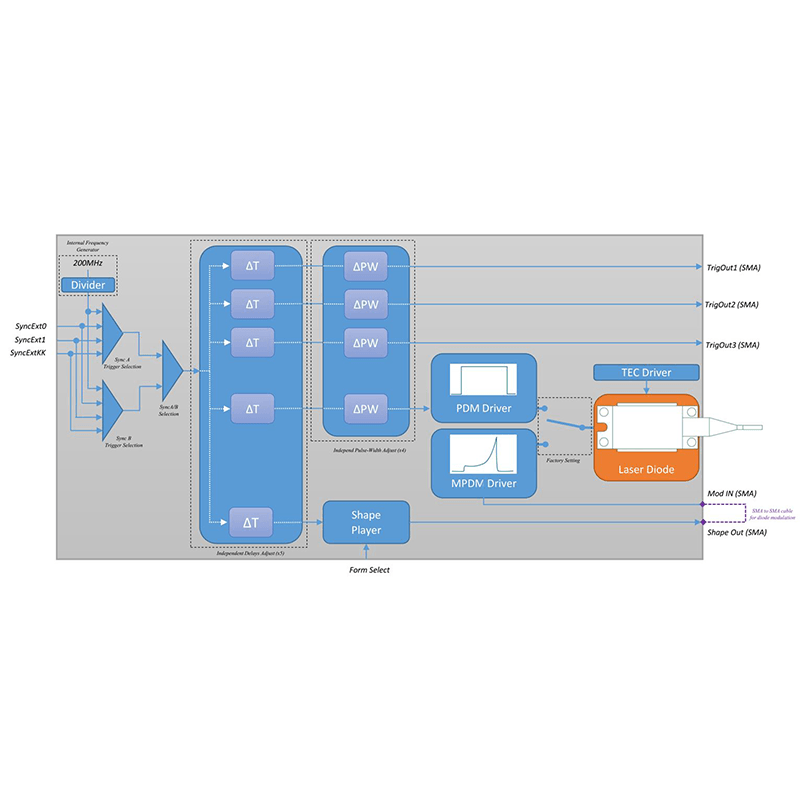

This latest generation pulsed laser diode driver gives you full control over the shape of the current pulse to your laser diode / AOM / EOM and allows you to completely tailor the pulse shape for your application. These units are capable of generating virtually any pulse shape with a nanosecond pulse duration. You have full control of the pulse shape through the control software and GUI. These multi-functional units have an integrated AWG (Arbitrary Waveform Generator), pulsed current source, TEC controller and pre-configured butterfly mounting socket. They also include multiple pulse delay generators for signal synchronization.

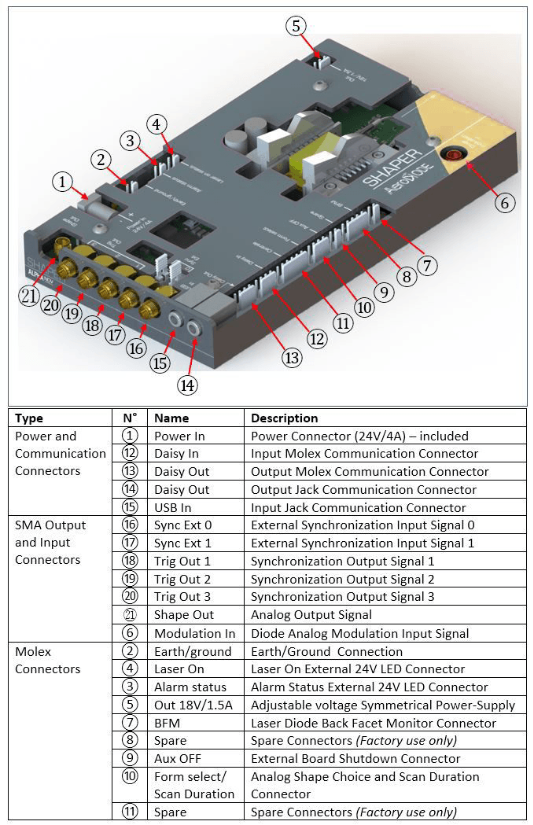

  • Pulsed Laser Driver

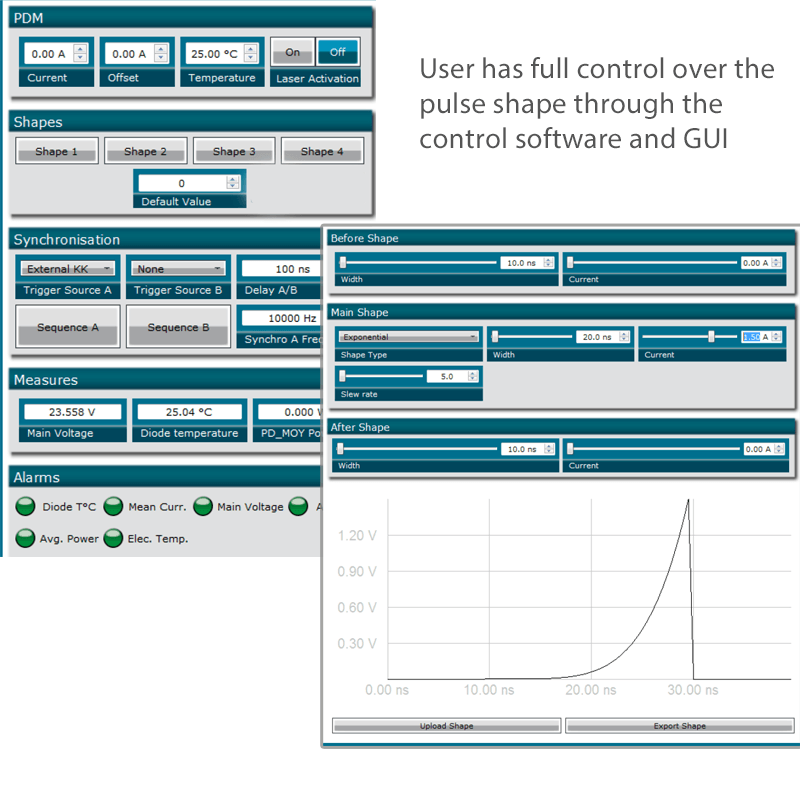

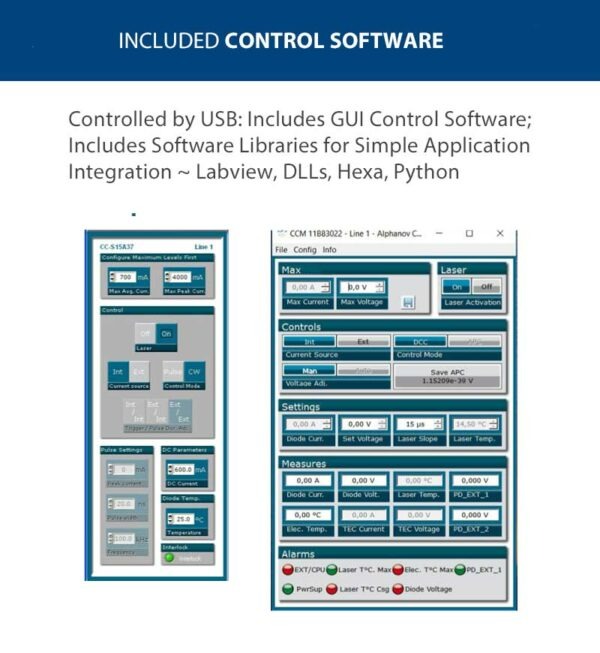

  • USB Interface with Control Software with GUI:

    These units come with a USB interface and control software with a simple to use graphical user interface. A DLL library for C programming as well as a hexadecimal programming protocol are both available at not additional charge. Also, there is a UART interface for industrial control applications.
  • nanosecond pulsed laser diode driver


  • Pulse Generation ~ Use as a Stand-Alone Pulser or with your AOM / EOM:

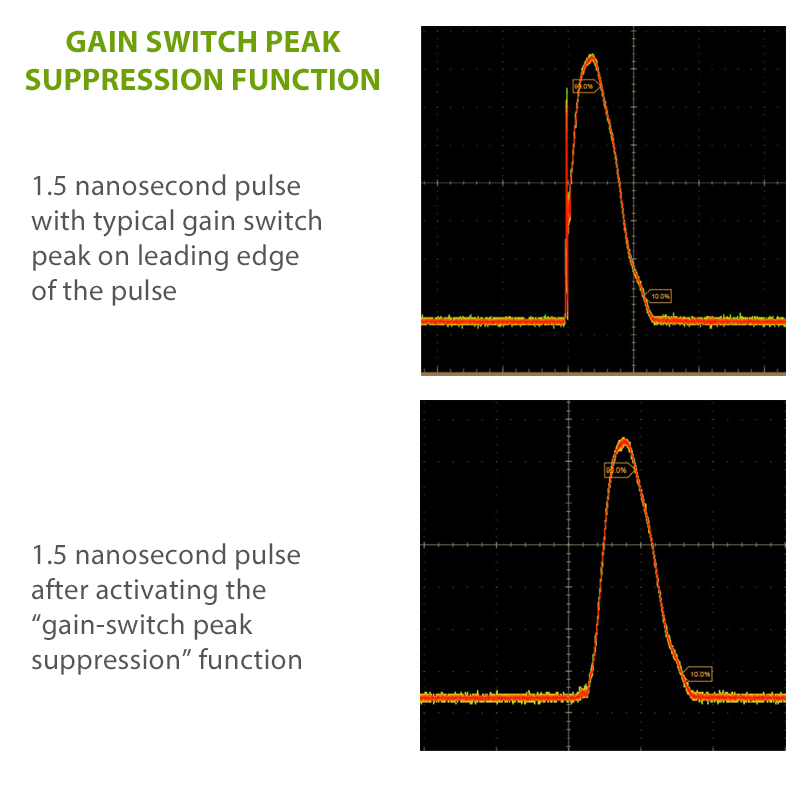

    These pulsed laser diode drivers are designed to operate in a stand-alone mode using internal modulation, or with an AOM/EOM using external modulation. They offer a pulse shaping range from 500 picoseconds to 8 microseconds in either internal or external modulation mode. Other features include 3 outputs to allow the user to synchronize multiple devices and a 16 bit processor to provide high current set-point resolution. Also, a “Gain Switch Peak” suppression mode is included to suppress the picosecond gain switched peak which is inherent to laser diodes in short pulsing environments.

    Current Source to Butterfly Package Impedance Matching Improves Your Laser Diode's Pulse Performance:

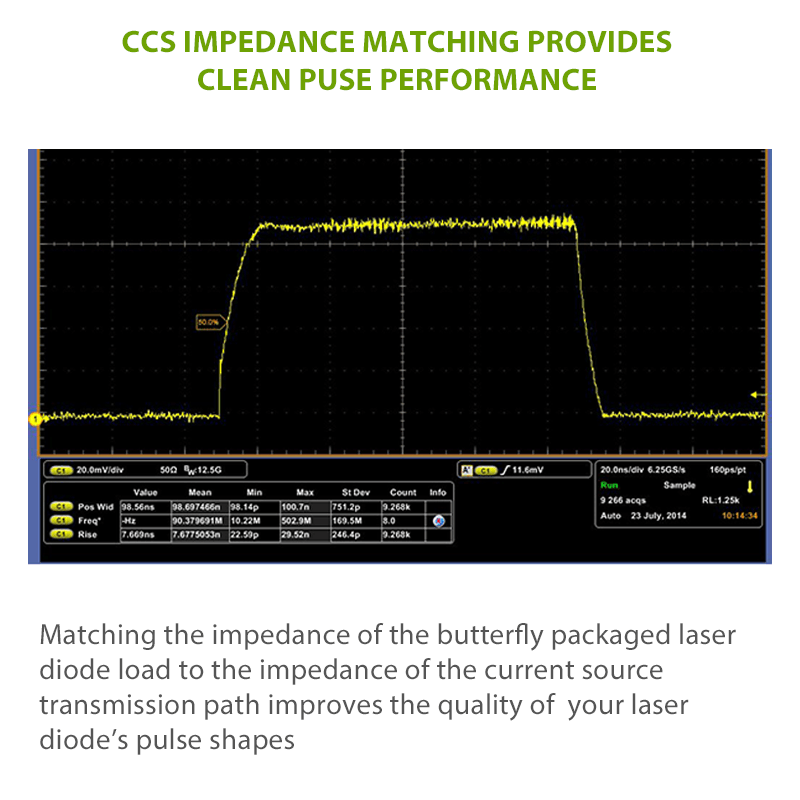

    When the impedance from the pulsed current source PCB is not properly matched to the butterfly package pins, significant pulse degradation can occur. This is often seen as distortion of the laser output pulses and/or overshoot of the pulses. The CCS unit is designed to reduce and/or eliminate this pulse degradation by matching the nominal impedance of the butterfly packaged laser diode with the pulse transmission line. Current sources inherently have a high output impedance and laser diodes have very low impedance. The most important requirement of proper impedance matching is matching the impedance of the load to the impedance of the transmission line. The inductance of laser diodes ranges from a few nanohenries to tens of nanohenries. From inductance theory, 𝑑𝑖/𝑑𝑡 is the rate of change in current over a specific period in amperes per second. The voltage increases with the inductance and with the rate of the change of the current. Energy stored in the inductor's magnetic fields during the pulse has to be released when the pulse ends. This creates a voltage, which in turn creates a new current, which in turn creates a new magnetic field on the transmission path. This creates a “loop” which manifests as “ringing” on the pulse waveform and on other distortions to the pulse shape. The CCS current output trasmission path has been carefully designed to match the current source impedance to the butterfly packaged laser diode.
