Integrated Laser Diode Driver + TEC Controller + Butterfly Package Mount;
PCB Level Controller and Mount

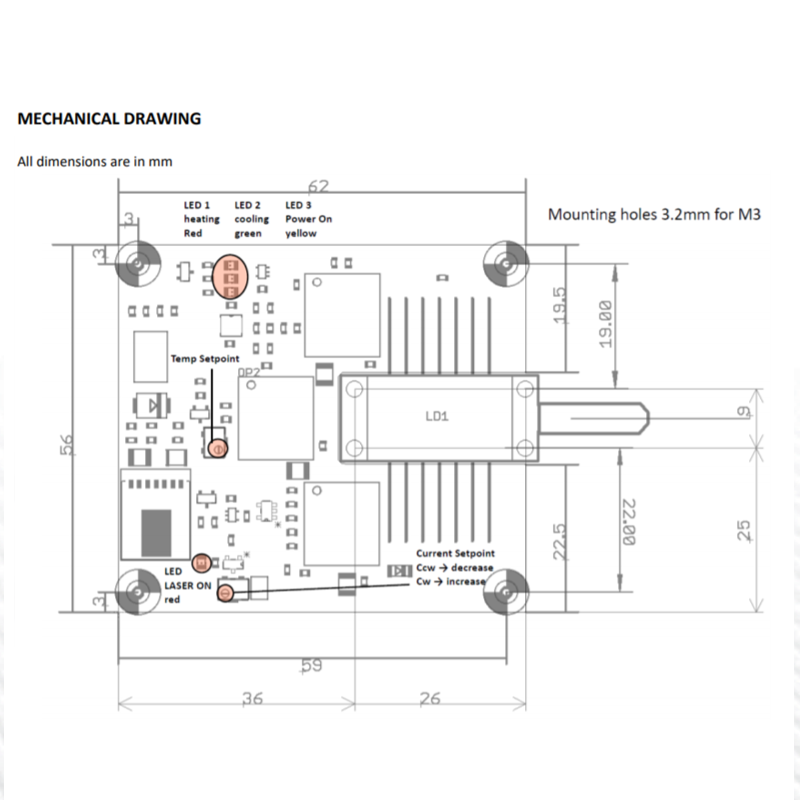

  • LC96 Laser Diode Controller Dimensions
  • laser diode driver installation infographic

Request Quote
sku / item#: XS10-2 / LASER-DRIVER
ships: Request a Quote for Current Ship Date

Key Features
  • PCB / Board-Level Laser Diode Control and Mount Module for Butterfly Packaged Pumps from II-VI Laser Enterprise, 3SP Technologies, Lumentum and others

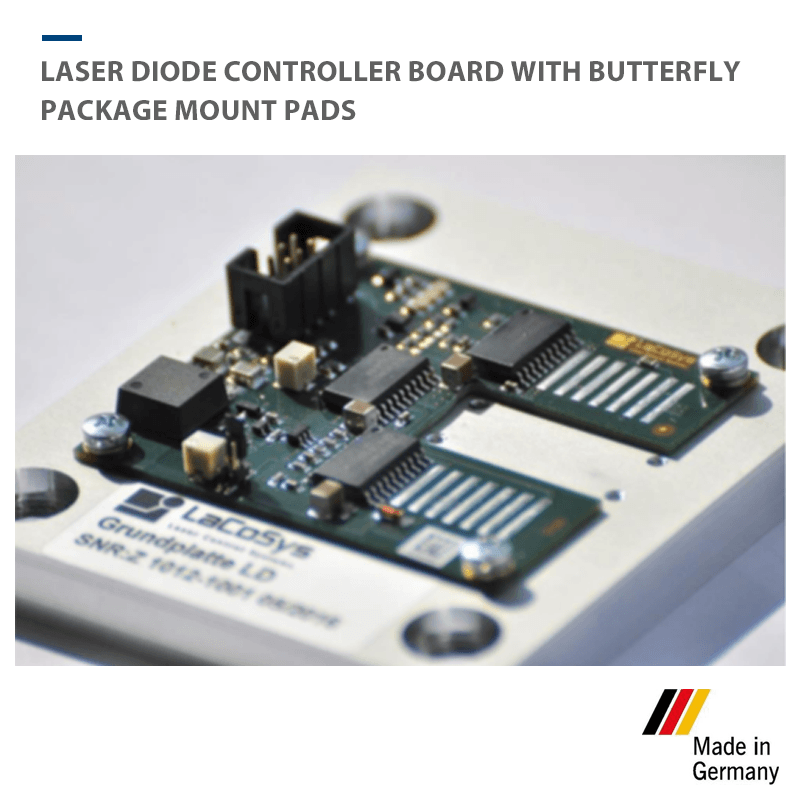

  • Integrated TEC Controller and Butterfly Package Mount Pads

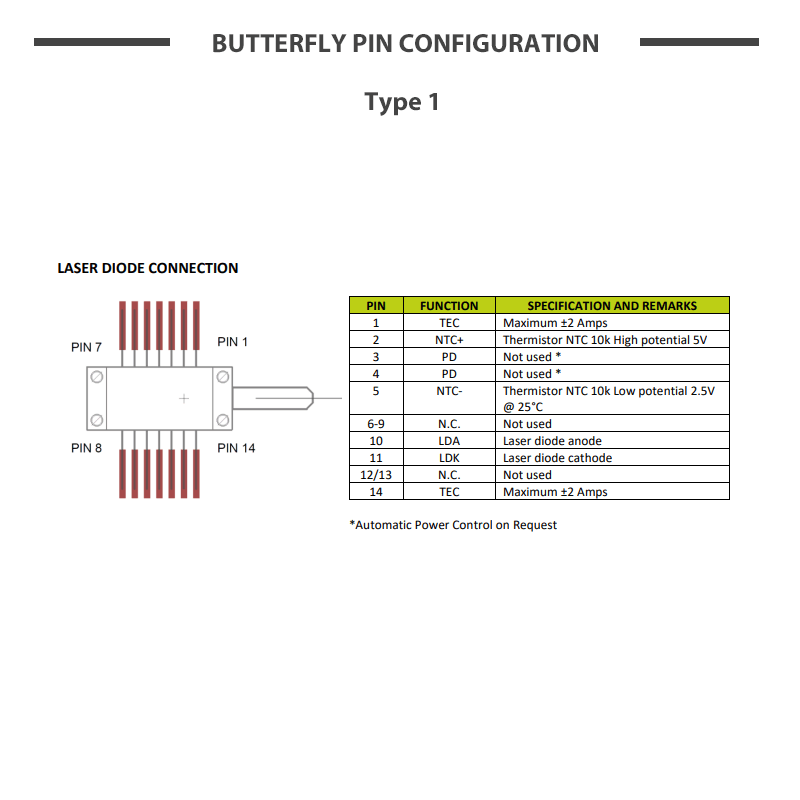

  • Works with 14-Pin and 10-Pin Type-1 Pin Configuration Pump Laser Diodes
  • Offered by LaCoSys, GmBH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL XS10-2 / LASER-DRIVER
PRICE Request Price
Laser Diode Driver / current source Specifications
  • Laser Diode Bias Current Range: 0 to 2 Amps
  • Laser Compliance Voltage Range: up to 4.5 Volts
  • Laser Diode Output Current Accuracy: ±0.5%
  • Laser Diode Output Current Stability: <0.1%
  • Current Noise: < 1mA RMS in CW Mode
  • Laser Diode Pin Configuration Compatibility: Type-1
TEC Temperature Controller Specifications
  • TEC Output Current: ±2 Amps
  • TEC Output Voltage: ±2.5V
  • TEC Control Loop Thermistor Sensor Type: 10 kOhm
  • Relative Accuracy: ±0.5 Degrees C
GENERAL
  • Required Input Voltage: 7 to 25 VDC
  • Max Power Dissipation: 18 W
  • Dimensions, mm: 62 x 56 x 20 (Length x Width x Height)
  • Power Supply Input Connector: X2 type Fischer WSL6
user INTERFACE
  • On-Board Potentiometers
  • Analog Control Signals Connector

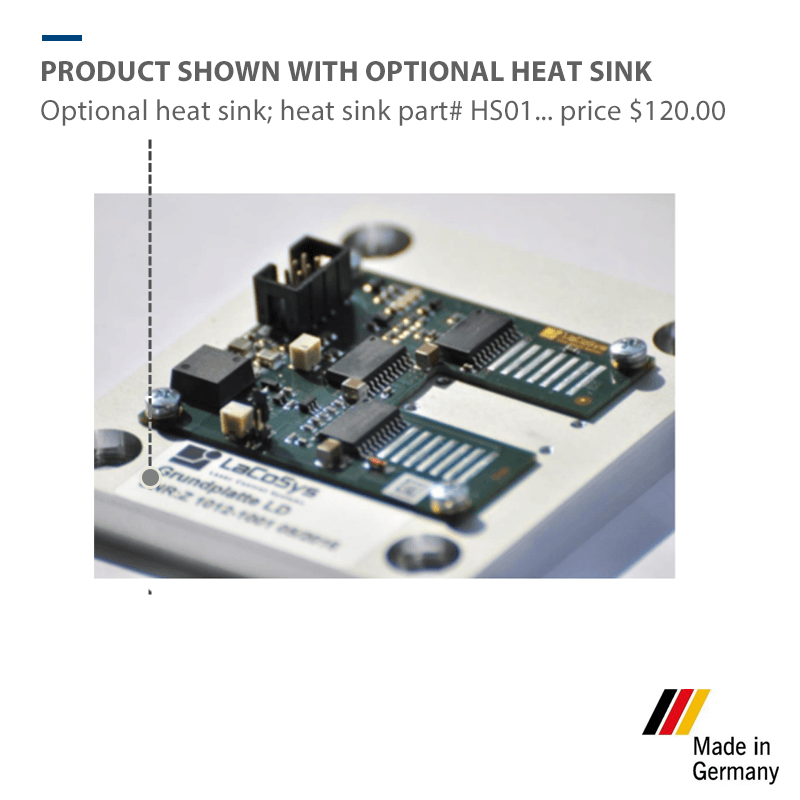

Optional Heat Sink
  • Part Number: HS01, price $120.00

Product Overview:

Laser Diode Controller + Mount for Pumps

The SmartPower XS series is a compact, high precision and cost effective OEM / PCB level solution for driving 10 or 14 pin butterfly package diode lasers in CW mode up to 2 Amps. It is designed for LC96 Type pumps as well as any Type 1 packaged laser diode. It is equipped with an integrated PI-control loop TEC controller for a lasers built-in Peltier element. Every device has passed our test lab to ensure high quality and reliability.

Proven Design for OEM and Industrial Applications

The long time proven and robust design is optimized for industrial use. The possibility of monitoring the temperature and current gives the user more control. The implemented safety functions ensure a safe operation of the diode and the driver. Additionally the XS series can be ordered with a heat sink; inquire for details.

Affordable PCB Level Laser Controller and Mount

The SmartPower XS series laser diode controller + mount is a PCB level control and mounting solution. It can be ordered with an optional heat sink assembly. Please request details.
