Integration Board for TEC-1092 TEC Controller

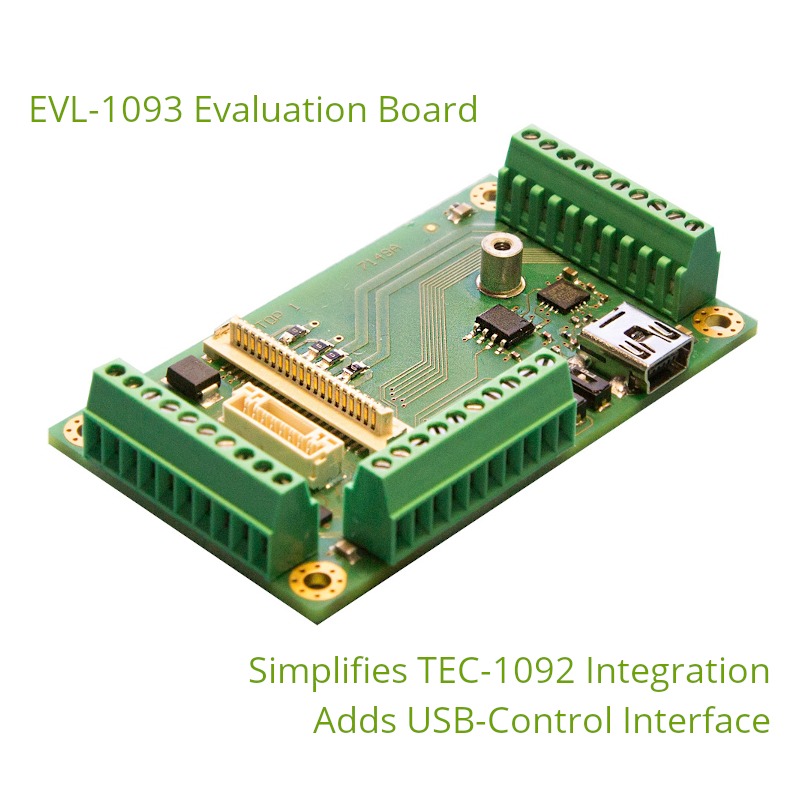

  • EVL-1093 Evaluation Board for TEC-1092

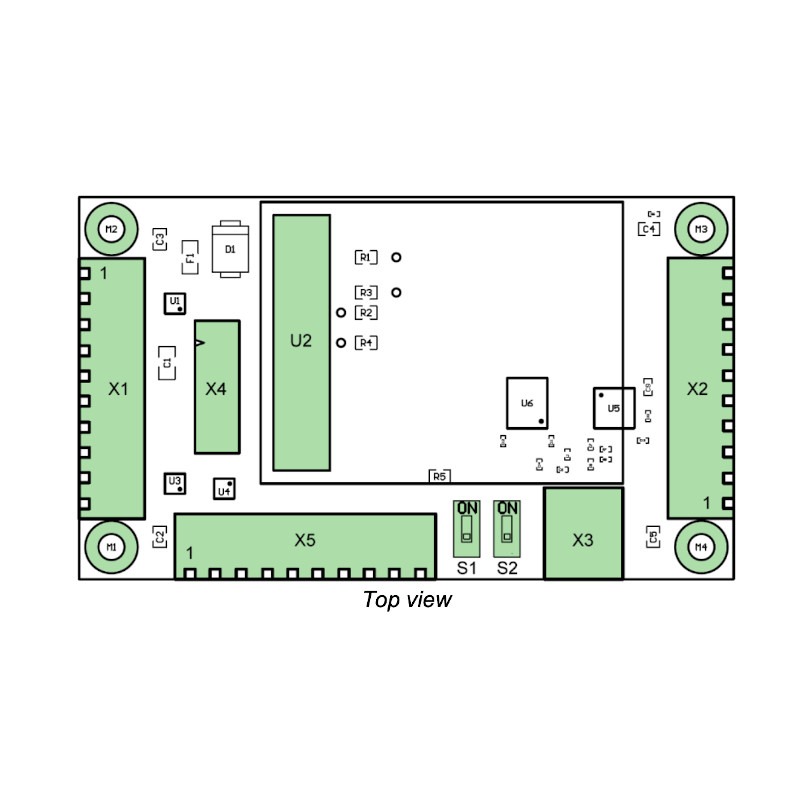

  • Connection Diagram for EVL-1093

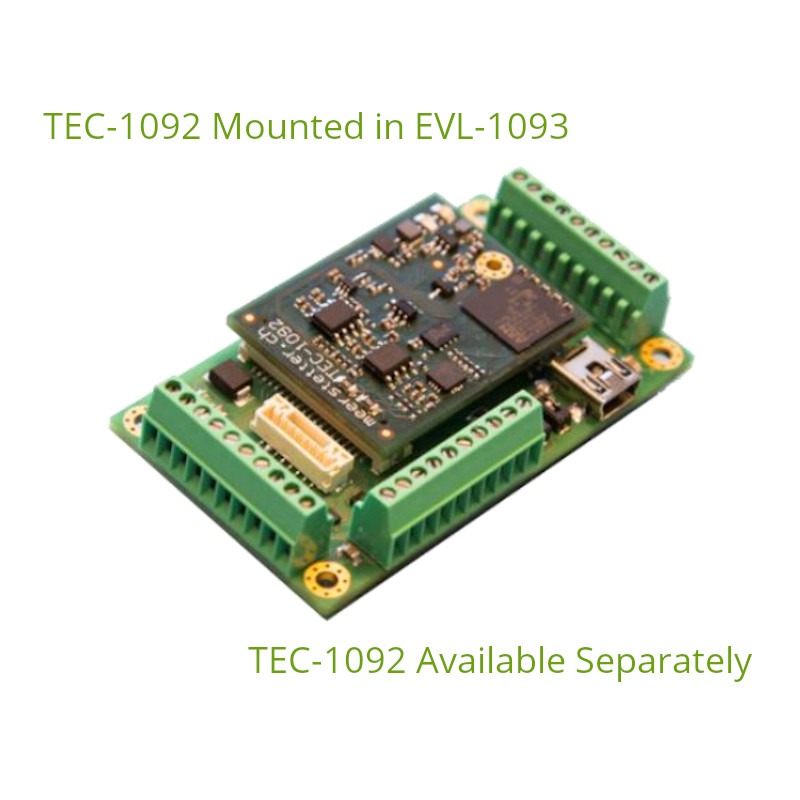

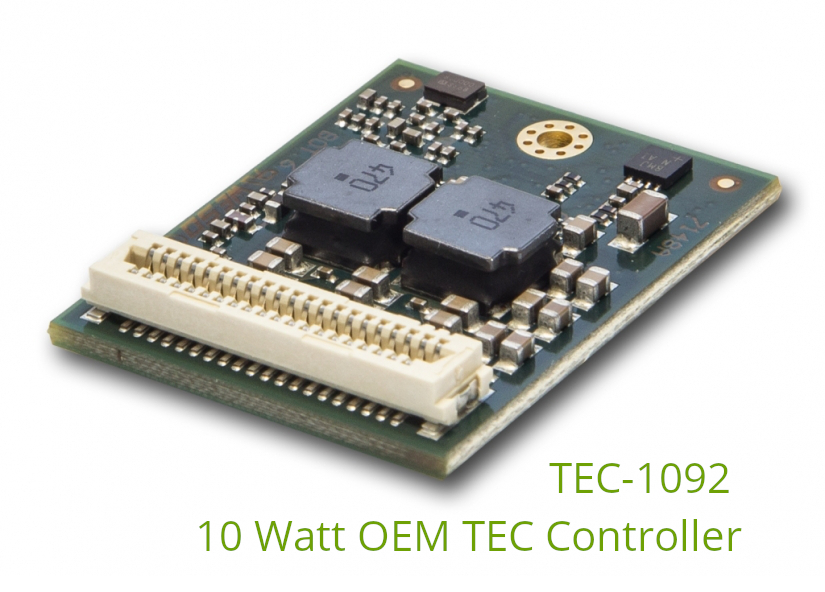

  • Evaluation Board with Compact OEM TEC Controller
  • ch-image

Request Quote
sku / item#: EVL-1093 / TEC-CONTROLLER-BOARD
ships: Request a Quote for Current Ship Date

Key Features
  • Integration And Prototyping Board for TEC-1092
  • Saves Valuable Time Early in the Design/Test Phase
  • Includes USB Control Interface
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Buy Now / Add to Cart

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL EVL-1093 / TEC-CONTROLLER-BOARD
PRICE Request Price
General Specifications
  • Connector Type: Screw Terminals
  • Interfaces: USB (Mini‑B), RS232 TTL, and RS485
  • Includes Status Display Kit DPY-1113 Connector
  • Compact footprint: 65 × 38 × 14 mm
  • Absolute max input voltage: 14 V (do not exceed)
  • Refer to Datasheet for Additional Specifications

Product Overview:

EVL-1093 Integration Board for TEC-1092 TEC Controller

The EVL‑1093 is an evaluation and integration board designed to simplify the connection and operation of the TEC‑1092 thermoelectric controller. It provides convenient access to power, temperature sensors, and communication interfaces, including USB, RS232 TTL, and RS485, enabling rapid system integration and testing. The board includes ESD protection, electrical isolation for USB communication, and screw terminal connections for easy setup. The EVL‑1093 does not include the TEC‑1092 controller and is intended as a development and evaluation platform.
