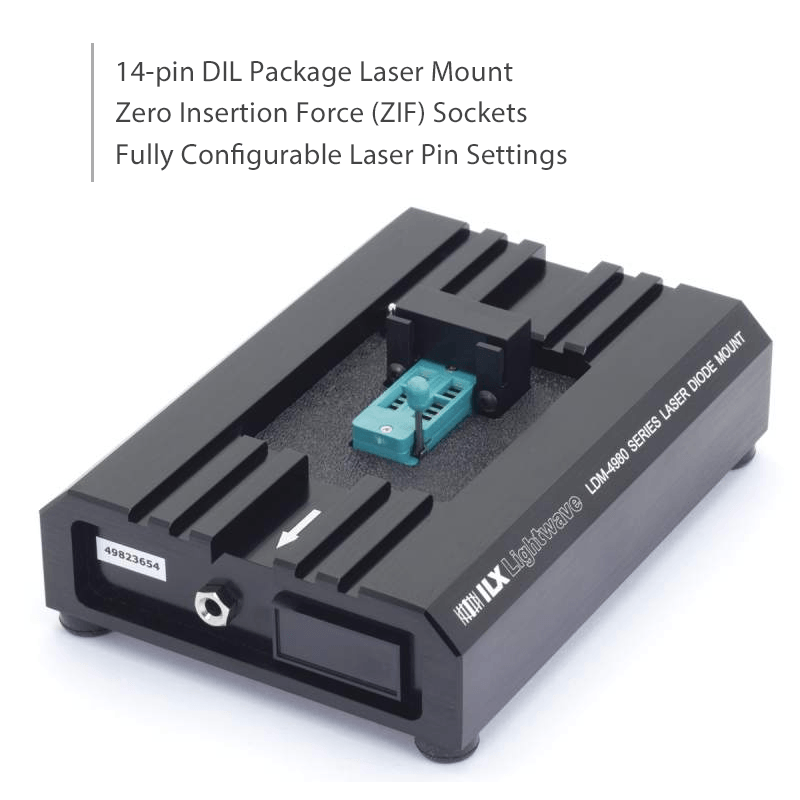

Dual In-Line Package Laser Diode Mount

  • ILX Lightwave LDM Series Laser Diode Mount

Request Quote
sku / item#: LDM-4982
ships:
This product is currently not available to purchase through LaserDiodeSource.com; please contact ILX Lightwave directly for price and delivery

Key Features
  • for 14-Pin Standard DIL or 8-Pin Mini-DIL Packaged Laser Diodes
  • Configurable Pin Settings
  • Zero Insertion Force Mounting Socket
  • When Ordered with Optional with Case Temperature Control Peltier Cooler: $895.00 (total)

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDM-4982
PRICE Request Price
General SPECIFICATIONS
  • User Configurable Pin Configuration
  • ZIF Socket
  • NO Integrated TEC Cooler
  • Supports 8-Pin Mini-DIL Packaged Laser Diodes
  • Temperature Sensor Not Included
  • Current Maximum: 2 Amps
  • Dimensions 31.8 x 102 x 140 mm
  • Connectors: Female 9-pin DSUB (Diode) / Male 9-pin DSUB (TEC)

Product Overview:

ILX Lightwave LDM-4982 Laser Diode Heat Sink Overview

The ILX Lightwave LDM-4982 laser diode heat sink / mount is a high performance mounting and control solution for industry standard fiber coupled DIL and Mini-DIL packaged laser diodes. An optional integrated TEC module provides a wide temperature control range and fine tunes the temperature for spectroscopic applications. The LDM-4982 mount offers industry standard 9 pin D-sub input connectors and also offers configurable pin designations to accommodate multiple configurations. The mounting socket pin configuration can be changed by removing the bottom panel and re-configuring the jumper wires. The rear panel offers dSub connectors to interface directly with and ILX laser diode driver or TEC controller. An interface cable is require to connect the current source and TEC controller to the mount.
